Forums >> Revit Building >> Technical Support >> Overlap Exterior Siding Over Garage C.M.U. Footing...
|
|
active
Joined: Thu, Aug 20, 2009
6 Posts No Rating |
1.) The project is a garage renovation.
2.) It has a C.M.U. footing/retaining wall and I would like to overlap that footing/retaining wall with the siding from the wal.
3.) I currently have it drawn as only an offset "retaining wall"

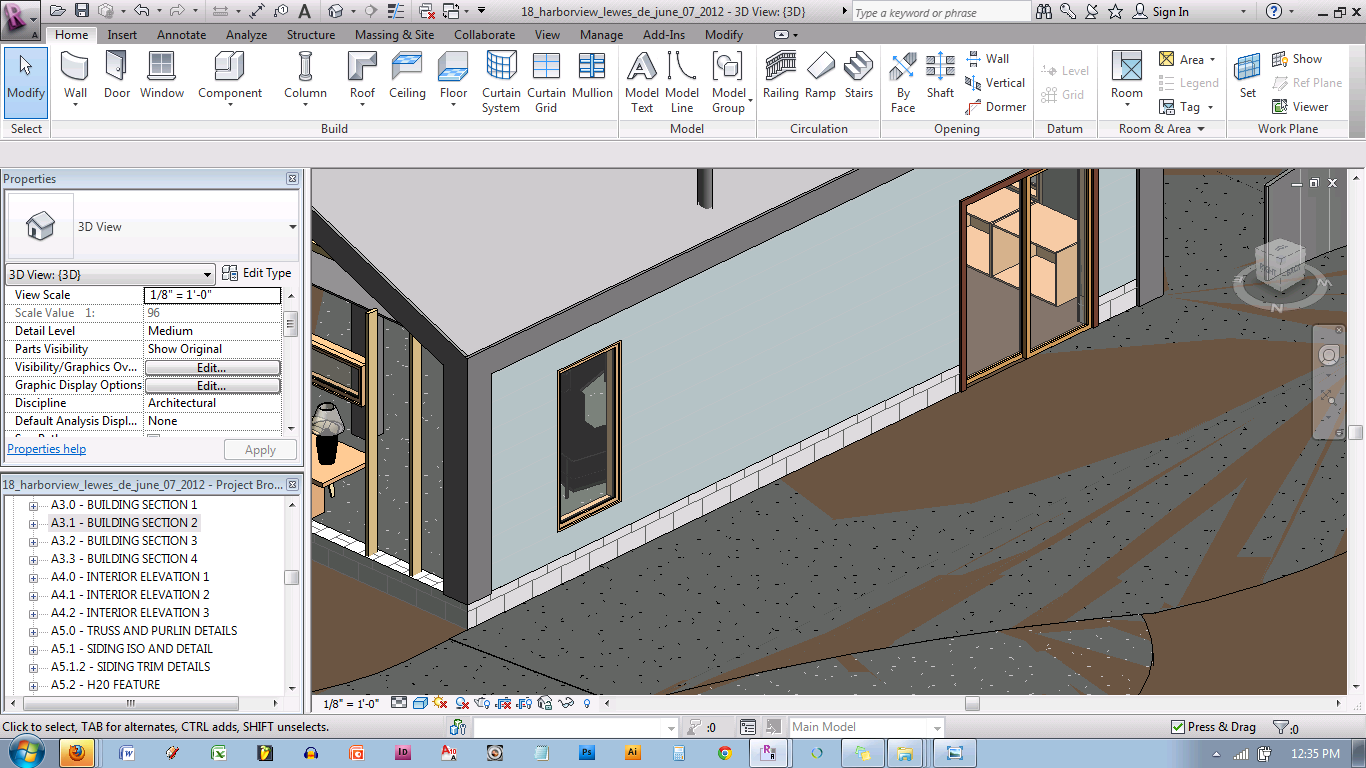

Please refer to the attached image. Any suggestions?
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
|
Edit your wall and unlock the siding layer, then pull that layer down in section views.
Read your HELP on wall definitions if you don't understand.
|
This user is offline |
|
|
site moderator|||
Joined: Fri, Nov 12, 2010
1749 Posts
|
In you wall type properties edit structure, switch your view to section, under Modify Vertical Structure click MODIFY, zoom in to the bottom of you wall and click on the line that represents your siding and unlock the lock button. Once you do that you will be able to drag your siding past your C.M.U.
|
This user is offline |
View Website
|
|
site moderator|||
Joined: Fri, Nov 12, 2010
1749 Posts
|
WWhub beat me to it!
|
This user is offline |
View Website
|
|
active
Joined: Thu, Aug 20, 2009
6 Posts No Rating |
Thank you both very much for your time and help!
|
