Forums >> Revit Systems >> Technical Support >> view depth HELP!!
|
|
|
active
Joined: Wed, Jul 8, 2009
181 Posts
 |

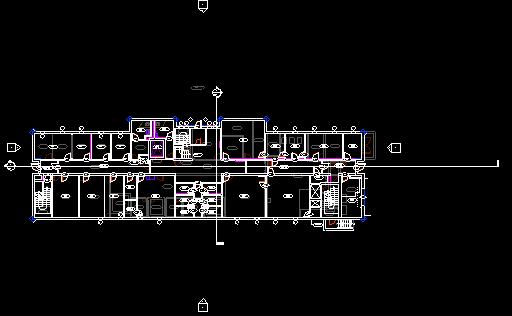

hi all, and thank you in advance. i have received an architectural model from a client. when i opened it up in Revit 2013 i noticed that even though the settings for the view range are setup correctly. TOP: associated level Offest 7'6", CUT PLANE: associated level Offset 4'0" and the other 2 are set to associated level with 0 offset. the only level that looks right is the basement. the upper levels show the walls from the level below. they are halftone, but still show and are selectable. i can't figure out how to fix this.
-----------------------------------
Try to learn at least one new thing every day |
This user is offline |
|
 | |
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
 |
In that view change the "Underlay".
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
|
|
active
Joined: Wed, Jul 8, 2009
181 Posts
|
thank you, that worked when i set it to none. i knew it had to be something easy, i just never had that happen before.
-----------------------------------
Try to learn at least one new thing every day |
This user is offline |
|
|
|
active
Joined: Thu, Mar 17, 2005
1231 Posts
 |
Underlays are very useful. Surprised you haven't made use of them or come across it so far. The default REVIT project template file actually underlays Level 1 into Level 2 by default.
You can underlay any plan view into any other plan view. They don't have to be directly on top of each other. For example you can underlay the 'roof plan' into the '2nd floor' plan or visa versa. Great for lining things up vertically (ie: align and lock). And yes you can also edit the underlay'd view.
-----------------------------------
.
