Forums >> Revit Systems >> Technical Support >> Structural framing plan for a sloped roof?

Search this ThreadSearch this Thread | Page 1 of 1 |

Mon, Jun 11, 2012 at 11:47:38 PM | Structural framing plan for a sloped roof?

#1

Debuta


active

Joined: Mon, Jun 11, 2012
1 Posts
No Rating


I'd like to set up a structural framing plan for a sloped roof. Tried placing a level called structural roof level and playing with its view range, but no luck. Does anyone have any advice? Thanks


This user is offline



Tue, Jun 12, 2012 at 12:58:26 PM | Structural framing plan for a sloped roof?

#2

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4.5 Stars: 45 Votes


What is the problem that you are running into?


This user is offline

View Website

Tue, Jun 12, 2012 at 2:43:27 PM | Structural framing plan for a sloped roof?

#3

dgcad


active
dgcad Avatar

Joined: Fri, Mar 18, 2005
1231 Posts
3.5 Stars: 34 Votes


Not sure what the exact problem is but to start with creating a new 'sloped' reference plane (in an elevation or section view) and name the reference plane 'sloped Structural'. Then make set that as the current work plane and model the sloping members on that reference plane. The plan view just has to capture those objects in the view range.


-----------------------------------

.

FULL 'DOWNLOAD ACCESS' to all 850+ CADclips videos for only $150



This user is offline

View Website

Fri, Mar 29, 2013 at 1:23:18 PM | Structural framing plan for a sloped roof?

#4

althouse08


active

Joined: Tue, Dec 4, 2012
24 Posts
No Rating

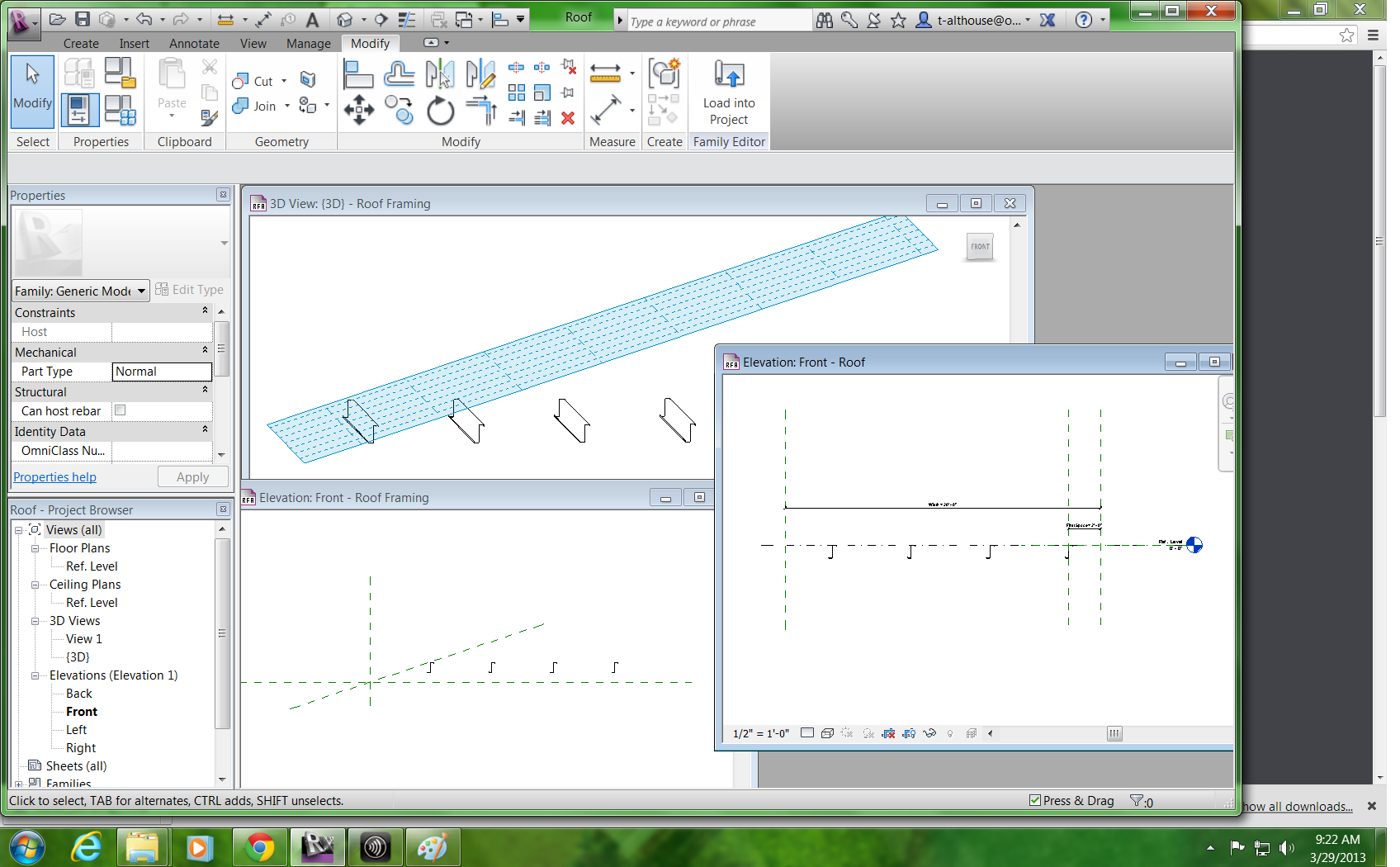

I am trying to nest a parametric set of purlins into something similar to this, so that when I draw my roof, all detail components embed as well. I am having trouble, however, trying to align the nested purlin structure into a roof structure, as I can seem to get them to go at an angle. I attached a picture of what I am looking at. Thanks.



Attached Images


-----------------------------------

"The road to success is always under construction"

This user is offline



Fri, Mar 29, 2013 at 1:32:12 PM | Structural framing plan for a sloped roof?

#5

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 363 Votes


Detail components are 2d.  Use model components.  They will cut correctly.


This user is offline



Fri, Mar 29, 2013 at 2:07:40 PM | Structural framing plan for a sloped roof?

#6

althouse08


active

Joined: Tue, Dec 4, 2012
24 Posts
No Rating


Am I missing something? I didn't know I used any detail components...I inserted my purlin model, other than that I am not sure what you are talking about "detail components"


-----------------------------------

"The road to success is always under construction"

This user is offline



Fri, Mar 29, 2013 at 2:53:50 PM | Structural framing plan for a sloped roof?

#7

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 363 Votes


Sorry, I read this "...all detail components embed as well...".  That mislead me.

I'm not sure what you are asking and what you are doing. Perhaps this family will help you:



This user is offline
