Forums >> Revit Building >> Technical Support >> Specialty Door(s) - Help Needed! - Transom, Trim, etc.

Search this ThreadSearch this Thread | Page 1 of 1 |

Mon, Jun 4, 2012 at 8:17:57 PM | Specialty Door(s) - Help Needed! - Transom, Trim, etc.

#1

Cavanaw


active

Joined: Mon, Jun 4, 2012
2 Posts
No Rating


Hello all,

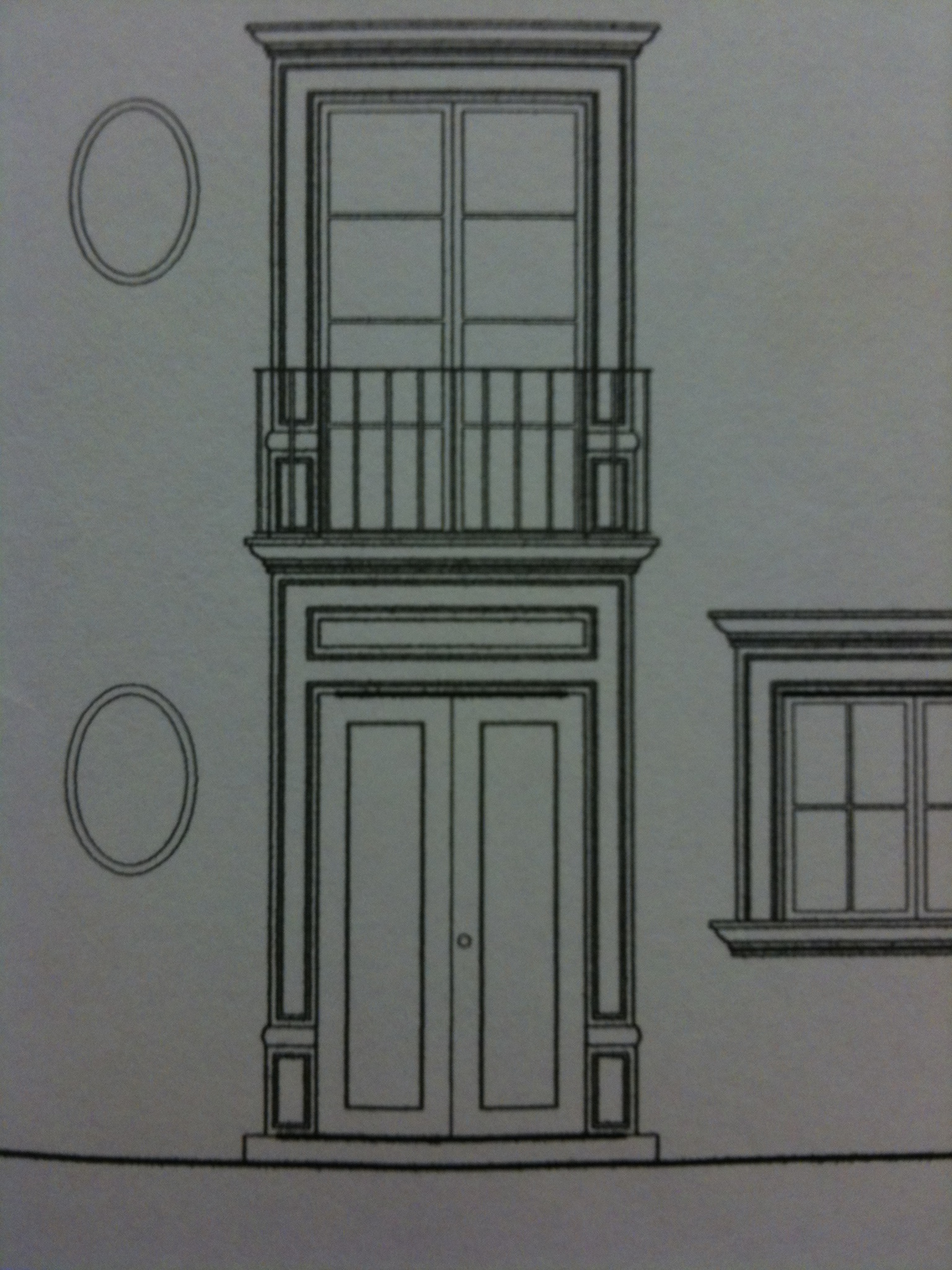

Ive been apart of the community for a while now, but mostly just find what I need without having to post BUT I've run into some problems trying to get this door together for a client. I've attached a picture showing exactly what is needed, I would love some advice or any help I can get. It has extensive trim plus a single windowed transom above, with a balcony above with yet another trimmed 8 panel patio door. Please help revit wizards!

J



Attached Images


This user is offline



Mon, Jun 4, 2012 at 8:24:00 PM | Specialty Door(s) - Help Needed! - Transom, Trim, etc.

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 347 Votes


Why would you ever create this as a family?  Do you plan on having a lot of these?



Simply use a door and a window and add in-place families (extrusions / sweeps) for the trim.


This user is offline



Mon, Jun 4, 2012 at 8:40:38 PM | Specialty Door(s) - Help Needed! - Transom, Trim, etc.

#3

Cavanaw


active

Joined: Mon, Jun 4, 2012
2 Posts
No Rating


Thanks for the quick response, but im not quite sure what gave you the idea that im making a family. Simply put, the trim is the real problem, yes I can find most of the basics of these either on the site or elsewhere but it does not work well with the balcony, which is separate. Is there some way to merge the edge of the balcony with the trim that im not aware of?


This user is offline



Mon, Jun 4, 2012 at 8:47:04 PM | Specialty Door(s) - Help Needed! - Transom, Trim, etc.

#4

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4.5 Stars: 43 Votes


As WWhub said, you should create the trim as an extrusion/sweep to match your balcony.


This user is offline

View Website

Mon, Jun 4, 2012 at 9:44:07 PM | Specialty Door(s) - Help Needed! - Transom, Trim, etc.

#5

mbsteve


active
mbsteve Avatar

Joined: Fri, Sep 22, 2006
759 Posts
4 Stars: 12 Votes

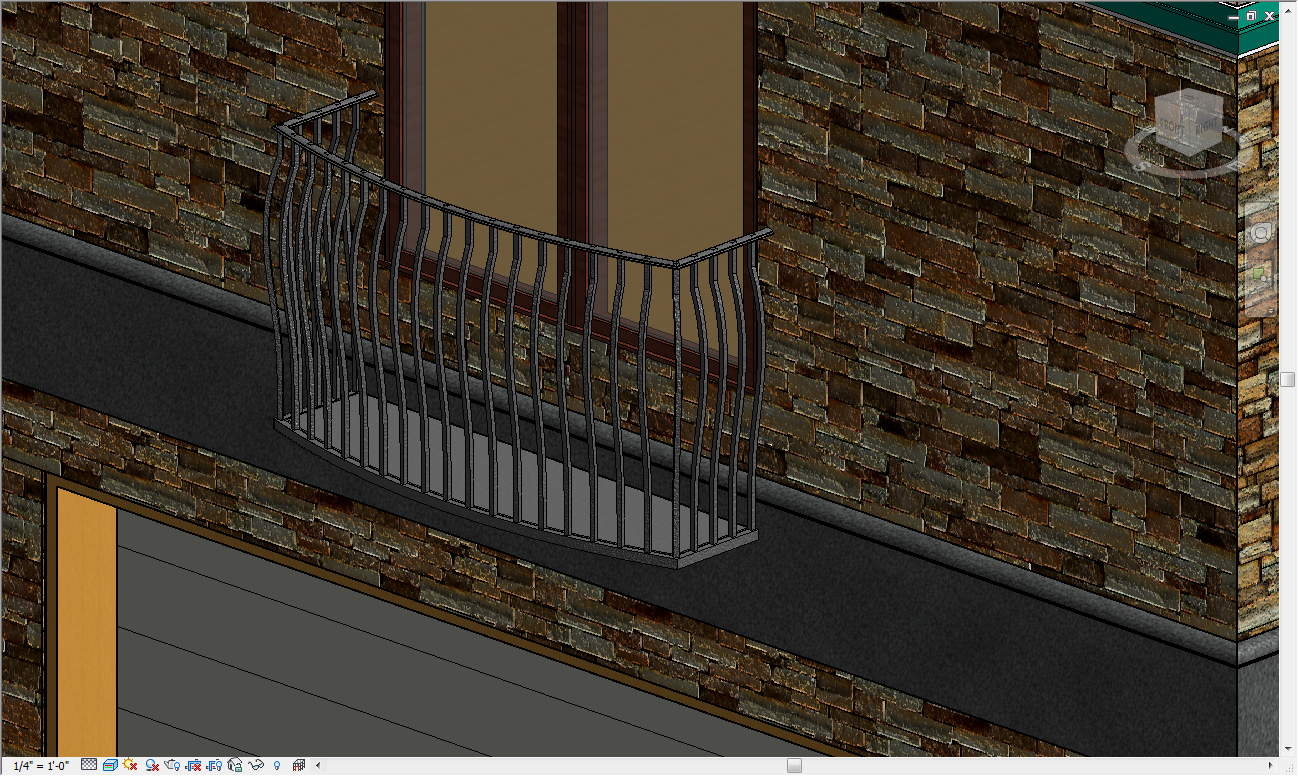

example of railing and platform kinda french window platform



Edited on: Mon, Jun 4, 2012 at 4:45:04 PM
