Fri, Jun 1, 2012 at 7:48:32 PM | wall by face

#1

viktorik


active

Joined: Sat, Jul 2, 2011
43 Posts
No Rating

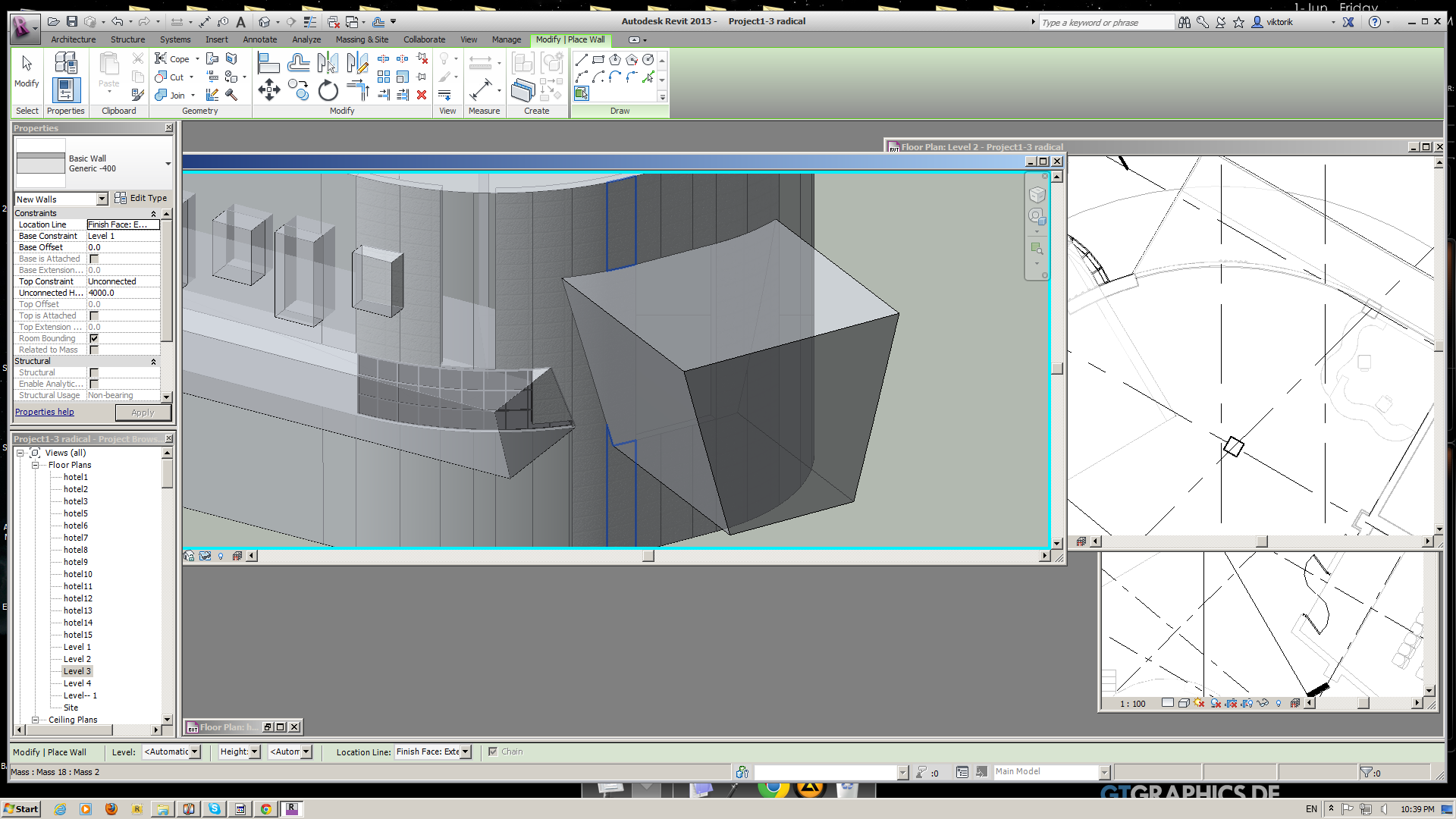

Hi to all , here is my another problem wit some joined masses, wall by face igmore the joins, it shows the correct face but the wall is applied to all height, I tried to divide the face, but that resolved only some faces nat all, I tried to make cuts into that big mass, and nothing better, the wall ignors tha little joined, or cuted mass,

may be there is a better way or place where I can modelo multy joined,cuted masses, where I can get that masses for base...

(sorry for my bad english)

thanks!



Attached Images


This user is offline



Fri, Jun 1, 2012 at 8:02:51 PM | wall by face

#2

viktorik


active

Joined: Sat, Jul 2, 2011
43 Posts
No Rating

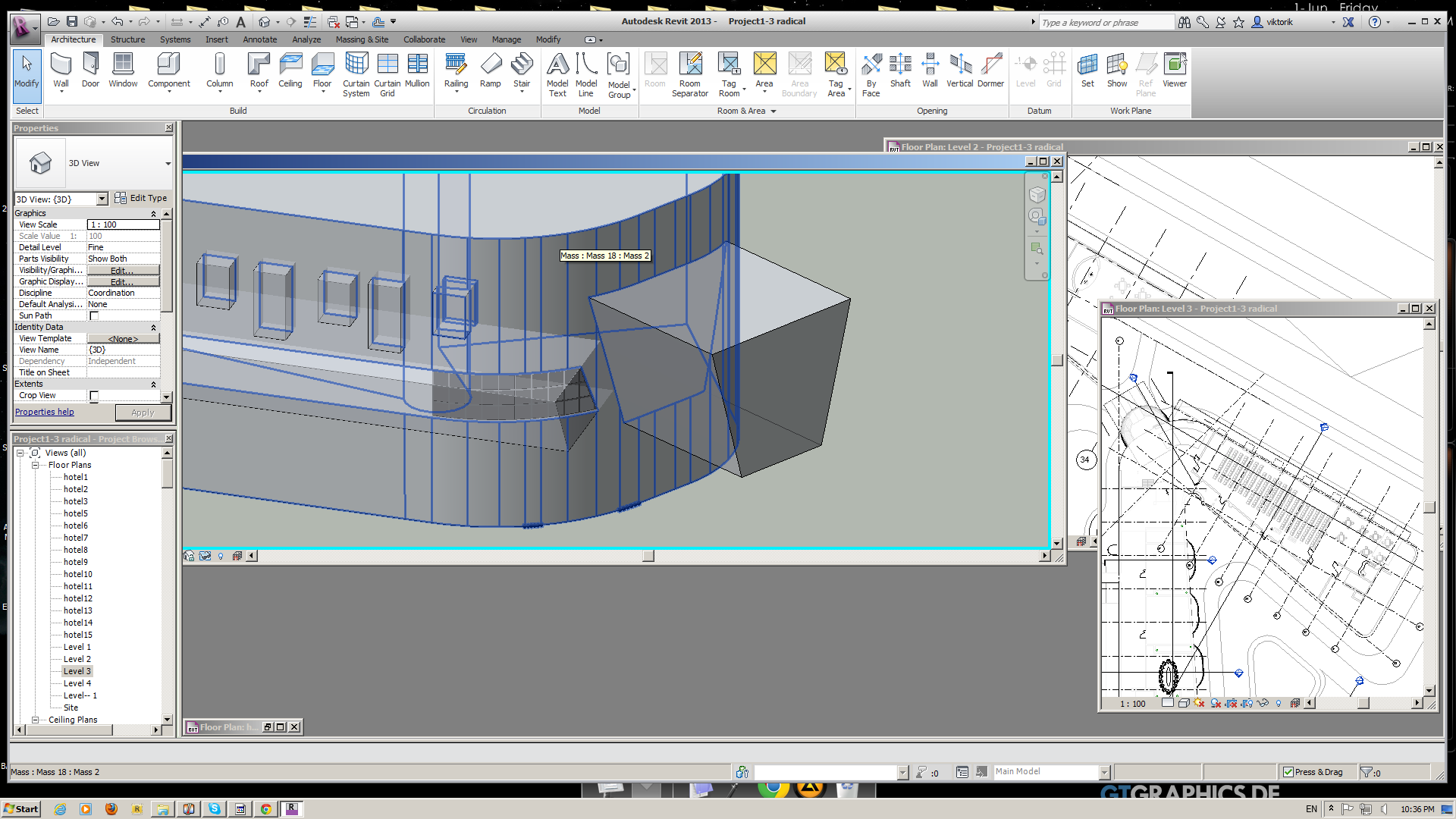

same with that mass, first time it have done very well, but after some manipulations here, and added new masses, it doesn't want to apply correct any more, neighbor faces are working well... don't remember when it disappeared ...



Attached Images


This user is offline



Fri, Jun 1, 2012 at 8:03:55 PM | wall by face

#3

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 361 Votes


You have to build the mass with a hole where the join is.



I would build most of this with regular walls - much easier and then other components work right.



Edited on: Fri, Jun 1, 2012 at 3:06:13 PM

This user is offline



Sat, Jun 2, 2012 at 8:23:33 AM | wall by face

#4

viktorik


active

Joined: Sat, Jul 2, 2011
43 Posts
No Rating


But how to cut the windows-curtain in a regular wall, there are angles at intersection ,  the mass for curtain isn't perpendicular to the face for a wall by face,


This user is offline



Sat, Jun 2, 2012 at 8:32:16 AM | wall by face

#5

viktorik


active

Joined: Sat, Jul 2, 2011
43 Posts
No Rating

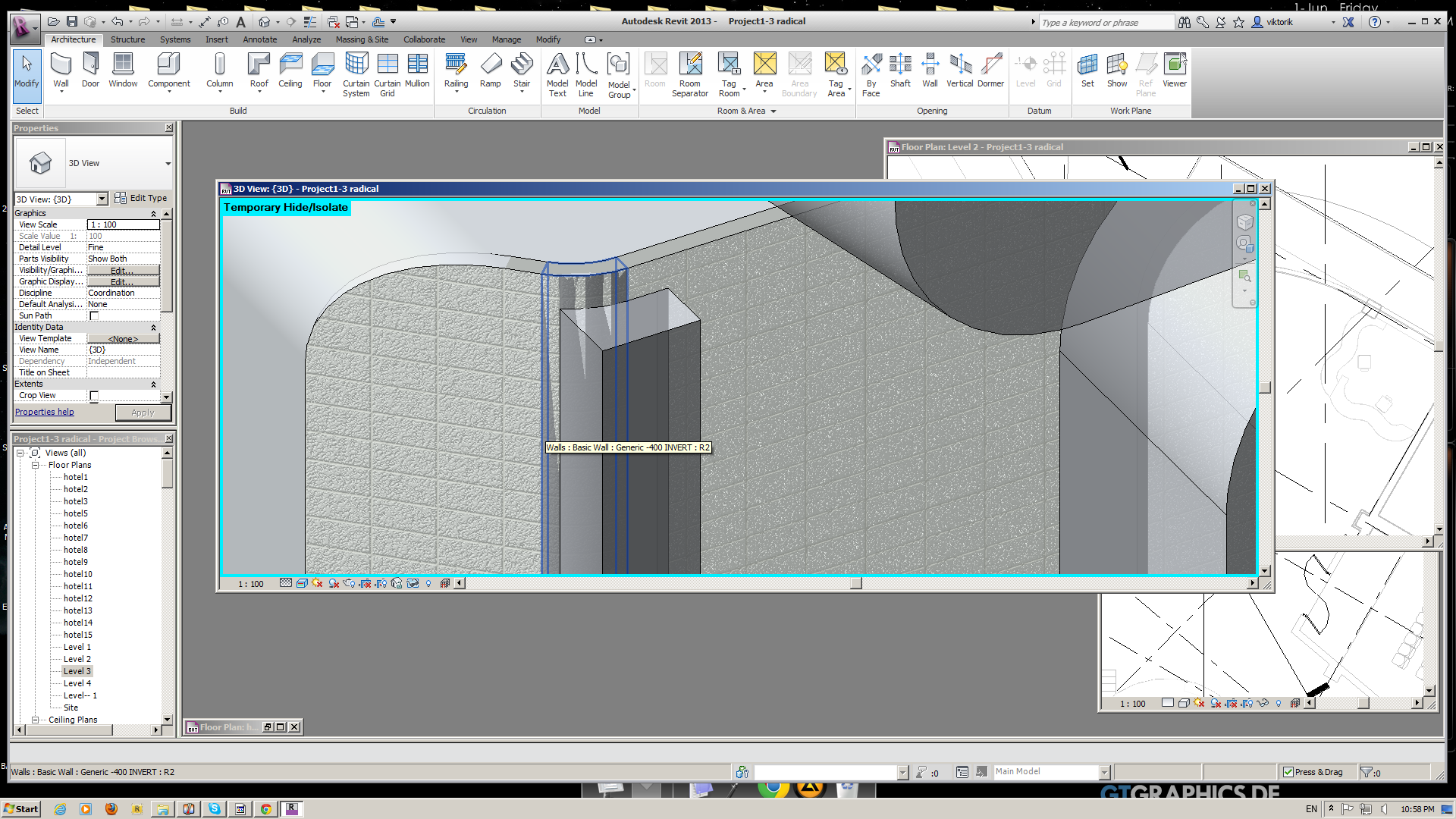

And somewhere I need 2 kinds of walls, with different material only, like here ...



Attached Images


This user is offline



Sat, Jun 2, 2012 at 11:38:54 AM | viktorik

#6

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 198 Votes


Quoting viktorik from 2012-06-02 03:23:33

"

But how to cut the windows-curtain in a regular wall, there are angles at intersection ,  the mass for curtain isn't perpendicular to the face for a wall by face, "



Use IN-PLACE VOIDS in Wall category.




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Sat, Jun 2, 2012 at 4:16:36 PM | wall by face

#7

viktorik


active

Joined: Sat, Jul 2, 2011
43 Posts
No Rating


I am beginner sorry, I can't find it,  here I have wall opening in architecture tab, near is shaft , opening by face...


This user is offline



Sat, Jun 2, 2012 at 4:52:03 PM | wall by face

#8

viktorik


active

Joined: Sat, Jul 2, 2011
43 Posts
No Rating


component>model in place>>void extrusion>cut> ?   only thing that I don't see the void in view after appliing the in place model. wall is cutted but the void have no control arrow , is it so?  not bad for my situation it cuttaed at all, and all multiple walls, thanks ...


This user is offline



Sat, Jun 2, 2012 at 7:47:58 PM | wall by face

#9

viktorik


active

Joined: Sat, Jul 2, 2011
43 Posts
No Rating


and if I delete the wall , where I can find that in-place void? , when wall was the in place void wa selectable from the aparent edges ...

thanks to all , problems mostly resolved...


This user is offline



Sun, Jun 3, 2012 at 8:55:33 AM | wall by face

#10

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 198 Votes


"component>model in place>>void extrusion>cut> ?" - Yes

"and if I delete the wall , where I can find that in-place void?" - If you create a void to cut a wall then you delete that wall, the void is erased because it wont have anything to cut.




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Wed, Sep 19, 2012 at 5:25:50 AM | wall by face

#11

IoanIancu


active

Joined: Fri, Sep 14, 2012
8 Posts
2.5 Stars: 2 Votes


You have to use the Curtain System tool on the Massing tab of the Design Bar. Mel Persin, AIA AEC Technology Consultant Technology to Visualize and Realize Solutions Modeling for the Future/Drafting in the Present/Building on the Pas.....


-----------------------------------

scrapbooking

This user is offline



Thu, Sep 5, 2013 at 12:43:59 PM | WWHub

#12

samjohnsonus


active

Joined: Tue, Sep 3, 2013
8 Posts
3 Stars: 2 Votes


Quoting WWHub from 2012-06-01 15:03:55

"

You have to build the mass with a hole where the join is.



I would build most of this with regular walls - much easier and then other components work right.

Edited on: Fri, Jun 1, 2012 at 3:06:13 PM"

WWHub: Thanks for the solution


This user is offline
