Forums >> Revit Building >> Technical Support >> Modeling/Creating Galvalume Edges in Revit...help!

ddfrazee

active

Joined: Thu, Aug 20, 2009
6 Posts
No Rating

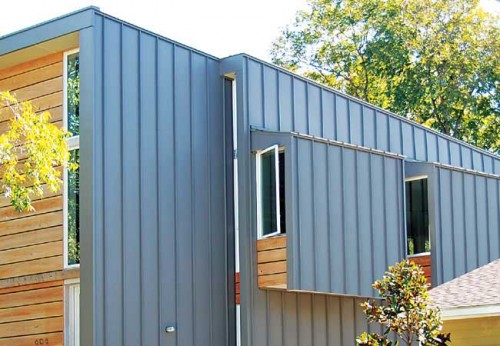

I am currently trying to create a "corner wrap" from the wall around the roof (See leftside attached pic, where the galvalume goes up, around, and frames the wood siding)...where do I even begin to do something like that inside revit? I would imagine I just have to model all of corners...and assign them as "walls" or "roofs." But that just...doesn't seem right to me. Is is a wall sweep issue? Very stuck here...

Thanks,

DDFrazee

Attached Images

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

Are you asking about a Rake Flashing?  This could be a roof edge sweep.  You can do it in place or use the roof facia tool < that would be better.

This user is offline

ddfrazee

active

Joined: Thu, Aug 20, 2009
6 Posts
No Rating

Thank you very much! That definately solves the roof problem...

however the exterior/outside corner of the two walls, is still giving me grief...I cannot seem to find a tool that could cap the corner... any suggestions there?

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

I would use a vertical wall sweep there.  This is a flashing in real life ... and so it is in Revit.

This user is offline

ddfrazee

active

Joined: Thu, Aug 20, 2009
6 Posts
No Rating

Problems: SOLVED

Cheers to and you and Revit both!

This user is offline
