Forums >> Community >> Newbies >> About sphere truss..HELP!

Search this ThreadSearch this Thread | Page 1 of 1 |

Thu, May 3, 2012 at 7:33:39 AM | About sphere truss..HELP!

#1

komanwong


active

Joined: Thu, May 3, 2012
2 Posts
No Rating

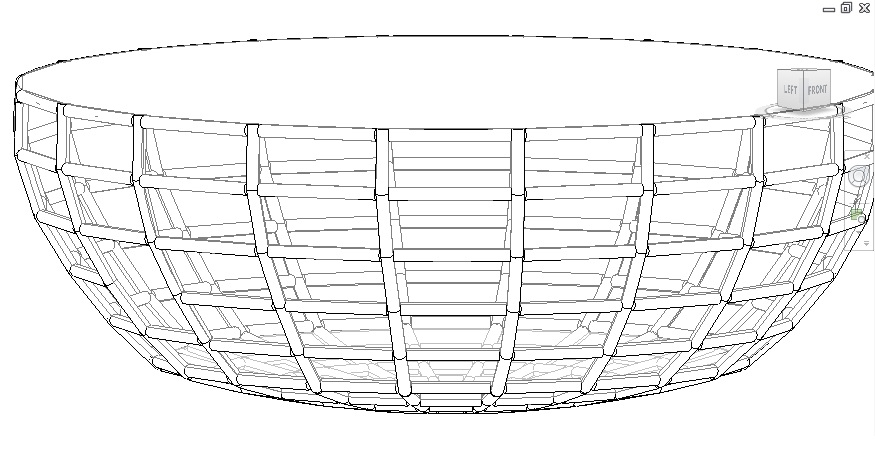

How can i build a truss around the sphere??? Thank you so much..

Now I am using a mullions, but how can I change it to be a truss system...



(Sorry about the bad english)



Attached Images


This user is offline



Thu, May 3, 2012 at 12:50:59 PM | About sphere truss..HELP!

#2

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4.5 Stars: 43 Votes


Model a component, probably an extrusion, to do what you want.


This user is offline

View Website

Thu, May 3, 2012 at 1:15:15 PM | About sphere truss..HELP!

#3

komanwong


active

Joined: Thu, May 3, 2012
2 Posts
No Rating


Model a component???

thats mean i should use a Metric Generic Model to build it??

how can i import my massing into a Metric Generic Model...btw thank you for your answer


This user is offline



Thu, May 3, 2012 at 1:23:54 PM | About sphere truss..HELP!

#4

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4.5 Stars: 43 Votes


Yes.. Load your mass into a project and use the Model-In-Place option


This user is offline

View Website

Thu, May 3, 2012 at 5:38:46 PM | About sphere truss..HELP!

#5

itsmyalterego


active
itsmyalterego Avatar

Joined: Fri, May 29, 2009
829 Posts
4 Stars: 14 Votes

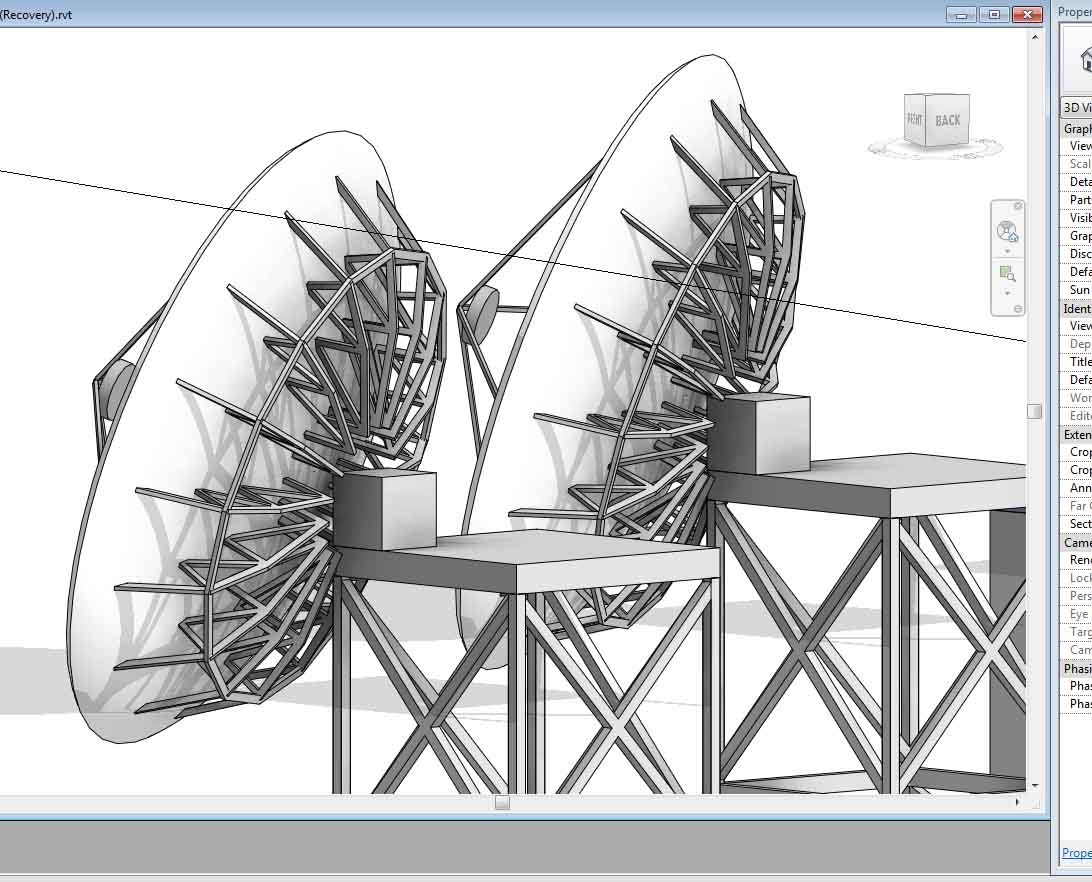

Radial array is your friend.   Here are some sloppy sattelite dishes we have gracing a property next to ours... just modeled one truss, and arrayed it 20 times around the dish.  Looks pretty convincing, and in the end took about 5 minutes.



Attached Images


This user is offline



Thu, May 3, 2012 at 5:53:49 PM | About sphere truss..HELP!

#6

jterrell


active

Joined: Thu, Mar 9, 2006
118 Posts
3 Stars: 5 Votes

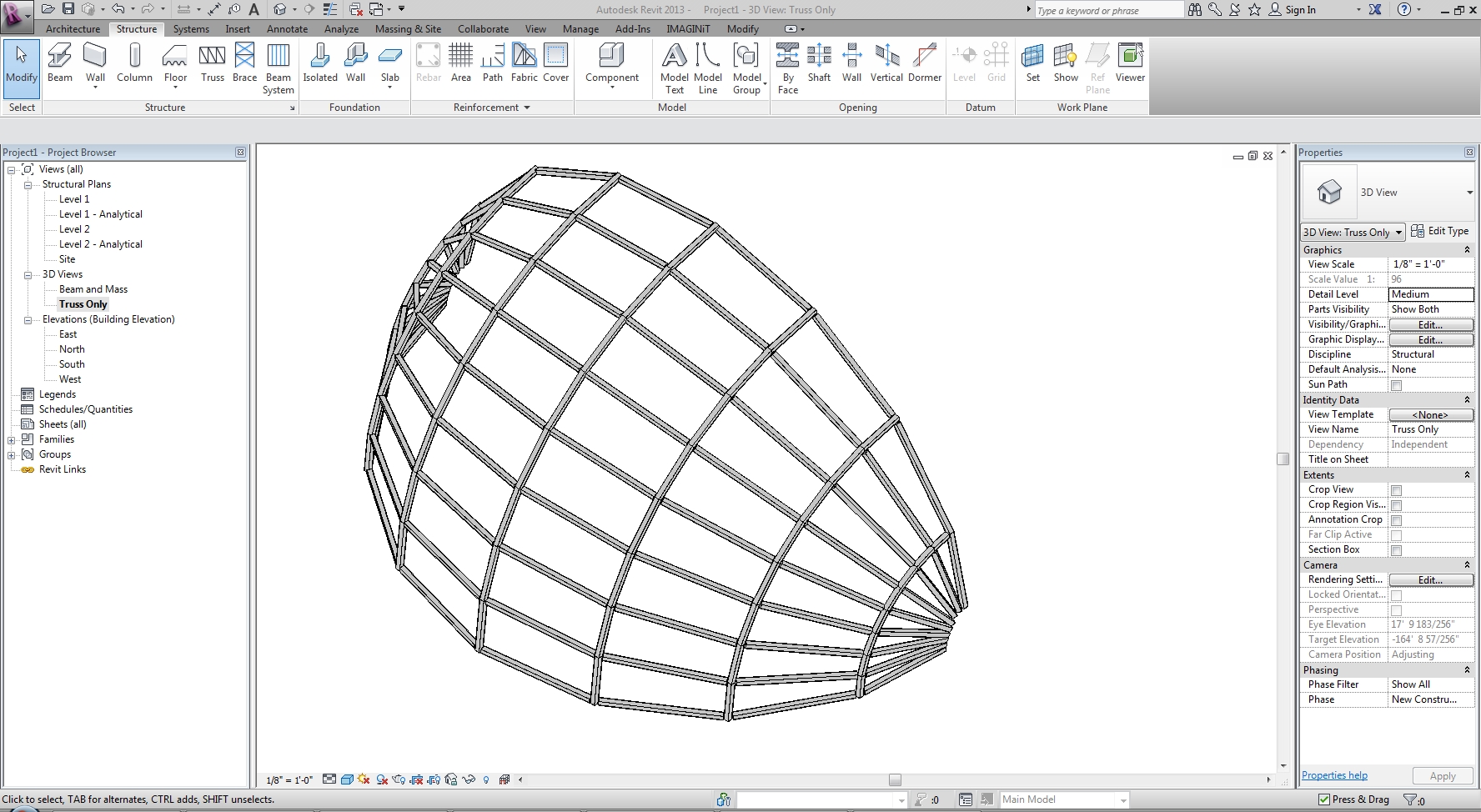

Create a mass and divide its surface. Then, in a 3d view with the mass visible, use the beam tool with the pick line option. Square beams have a tendancy to twist in strange ways, but pipe beams would look great with no modification. See the attached files.



Attached Images

105944_Autodesk_Revit_2013_-_3D_View_Truss_Only_-_Project12012-05-0312-47-16.jpg105944_Autodesk_Revit_2013_-_3D_View_Beam_and_Mass_-_Project12012-05-0312-47-28.jpg

This user is offline

View Website

Thu, May 3, 2012 at 5:56:26 PM | About sphere truss..HELP!

#7

jterrell


active

Joined: Thu, Mar 9, 2006
118 Posts
3 Stars: 5 Votes


Here is the RVT (2013) file

.........

Apparently I cannot attach the rvt file.Edited on: Thu, May 3, 2012 at 1:00:59 PM



Edited on: Thu, May 3, 2012 at 1:01:44 PM

This user is offline

View Website
