Forums >> Revit Building >> Technical Support >> modeling sweep/blend/void? - STUMPED

Search this ThreadSearch this Thread | Page 1 of 1 |

Fri, Apr 27, 2012 at 10:19:09 AM | modeling sweep/blend/void? - STUMPED

#1

nmt80


active

Joined: Tue, Oct 30, 2007
12 Posts
No Rating


I'm completely stumped on how to approach this. This is typical for 4 sides. Any advice?


This user is offline



Fri, Apr 27, 2012 at 10:47:13 AM | modeling sweep/blend/void? - STUMPED

#2

nmt80


active

Joined: Tue, Oct 30, 2007
12 Posts
No Rating


hopefully this will work



Attached Images


This user is offline



Fri, Apr 27, 2012 at 10:56:04 AM | modeling sweep/blend/void? - STUMPED

#3

rod23


active

Joined: Wed, Dec 2, 2009
89 Posts
5 Stars: 4 Votes


That's what we call a compound curve.  Last time I had to do this, I was forced to model it in CAD and import.  But that was before the conceptual mass editor.


-----------------------------------

http://www.turbosquid.com/Search/Artists/Revitaoist

This user is offline



Fri, Apr 27, 2012 at 12:34:56 PM | modeling sweep/blend/void? - STUMPED

#4

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 388 Votes

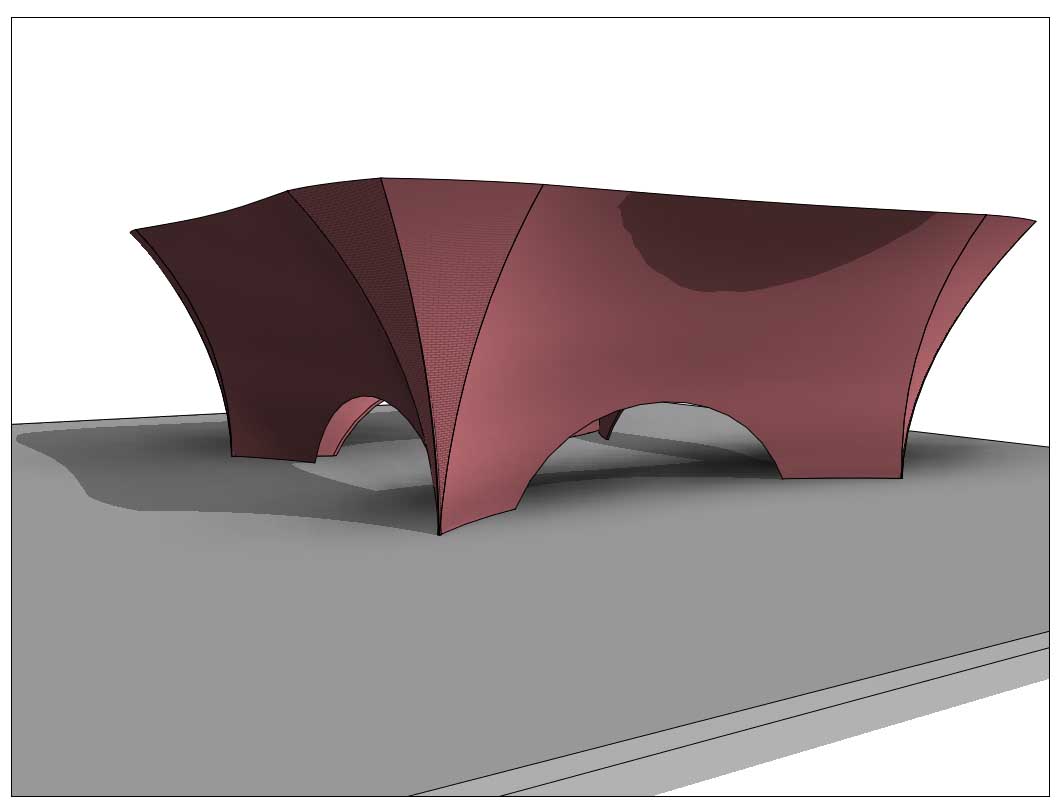

You might be able to do this with a solid cut by tw different voids


This user is offline



Fri, Apr 27, 2012 at 12:53:58 PM | modeling sweep/blend/void? - STUMPED

#5

itsmyalterego


active
itsmyalterego Avatar

Joined: Thu, May 28, 2009
829 Posts
4 Stars: 16 Votes


Swept blends are the only way I can see this accomplished with the basic modeling tools, and it'd be difficult to stay accurate.

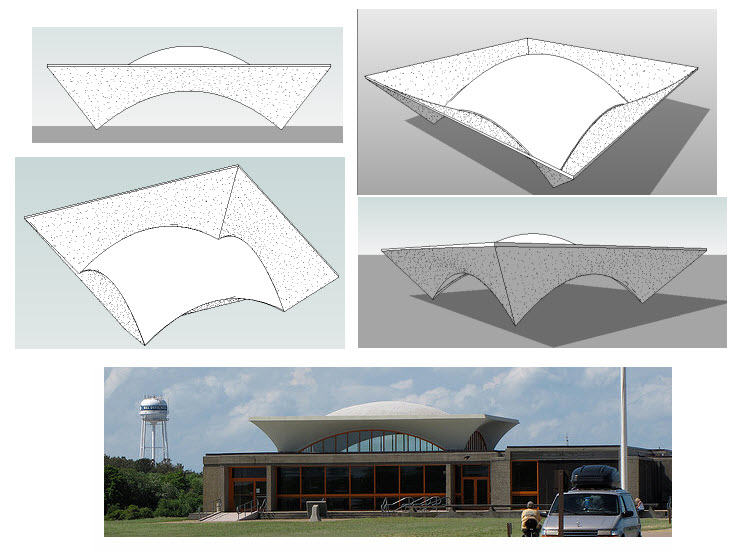

EDIT:  this is the closest I could get with a single swept blend, (including a couple void extrusions to trim it nicely)  without spending too much time.





Edited on: Fri, Apr 27, 2012 at 3:48:54 PM

Attached Images


This user is offline



Sat, Apr 28, 2012 at 11:56:49 AM | modeling sweep/blend/void? - STUMPED

#6

alfmedina


active
alfmedina Avatar

Joined: Wed, Sep 26, 2007
162 Posts
4 Stars: 8 Votes

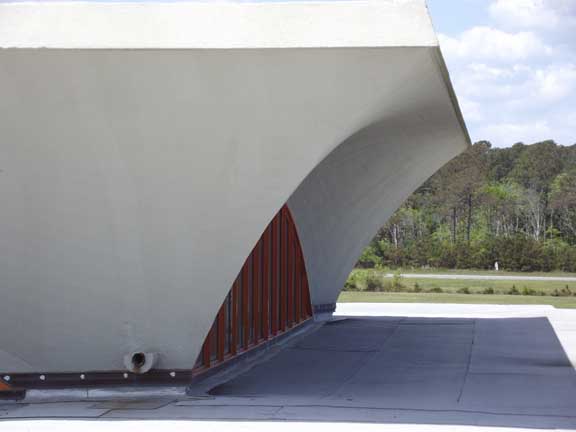

Hello, a form like this can be done by making a flat projection of all the points at the reference level. The edges that are going to be curved in the 3d form are created by a spline of 3 points, and the edges that are going to remain horizontal or straight are created as reference lines. Then you need some reference planes in elevation to control the height of the points. Then, create forms. This is the approximate result. It is possible to make another version with a slight curve in the corner edges, as in the photograph.



Attached Images


-----------------------------------

Planta1 Revit Online Consulting | info@planta1.com

This user is offline

View Website
