Thu, Apr 12, 2012 at 5:23:50 PM | Linked CAD file Visisbility Issues

#1

BigD


active
BigD Avatar

Joined: Mon, Nov 26, 2007
100 Posts
1 Stars: 1 Votes


I've already scoured the forums for an answer.  No luck.  So, thanks ahead of time for the help.

I have a section cut in my Revit Structure model.

I want to insert a CAD file of the architect's matching section.

After inserting it, I can't see it.

It IS there.  I CAN select it (by luckily picking it out of thin air) and it will show up as a blue tinted, selected object.  But, as soon as I unselect it, it dissapears.  I've had this problem a lot before, and usually if I zoom out a good bit, the linked file will be visible.  But when I zoom in tight, it dissappears.  However, in this case, it doesn't show at all no matter the zoom level.

The good news is that it DOES show in print preview, and it DOES print.

But it's really difficult to work with it, if I can't see it in Revit. Sad

Any help would be HUGELY appreciated.

Could this be a graphics card issue?  I have a brand new computer, with a killer graphics card in it.


This user is offline



Thu, Apr 12, 2012 at 5:32:25 PM | Linked CAD file Visisbility Issues

#2

BigD


active
BigD Avatar

Joined: Mon, Nov 26, 2007
100 Posts
1 Stars: 1 Votes

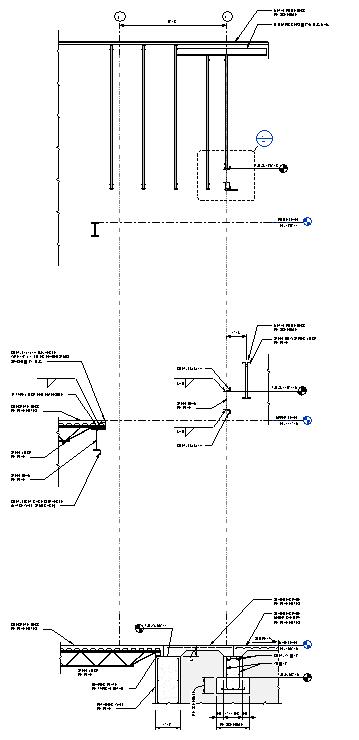

Here's a couple of screen shots:

  • one with Linked CAD file "invisible"
  • one with Linked CAD file SELECTED & thus, "visible"



Any clues?



Attached Images

105200_Print_Screen_-_CAD_file_NOT_visible.jpg105200_Print_Screen_-_CAD_file_Selected__Visible.jpg

This user is offline



Thu, Apr 12, 2012 at 6:32:09 PM | Linked CAD file Visisbility Issues

#3

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 364 Votes


If you don't have any model elements like walls hiding the CAD import, it should be visible.



As you suggested, I bet it is a memory / graphics card issue.  Close out and restart Revit with just this window open.



BTW - If this is a huge drawing, you should wblock out just this portion.  ....  And BTW - Are you looking at this from a sheet placed view?  That is a problem with CAD imports on a sheet.  Look at it in the native view.


This user is offline



Thu, Apr 12, 2012 at 6:55:50 PM | Linked CAD file Visisbility Issues

#4

BigD


active
BigD Avatar

Joined: Mon, Nov 26, 2007
100 Posts
1 Stars: 1 Votes


Well, I was hoping to upload a Revit Model and the AutoCAD detail, but for the life of me, I can't get the revit model below the 2mb file size limit.  I've deleted nearly the entire model, purged it, and even used Ideat Explorer to find hidden things to delete.  I'm going crazy!

Anyway, the CAD file is a WBLOCKED view of only the needed section, and its in model space.

Graphics Card is Nvidia Quadro 2000.  Revit Options says that the driver I'm using is NEWER than the certified driver.  I tried turning off graphics acceleration but it didn't help. (see attached)



Attached Images


This user is offline



Thu, Apr 12, 2012 at 8:18:21 PM | Linked CAD file Visisbility Issues

#5

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 364 Votes


When you imported this CAD, you should have checked the box "current view only"  That would have made this import 2D and only in this view.


This user is offline



Thu, Apr 12, 2012 at 8:33:11 PM | Linked CAD file Visisbility Issues

#6

BigD


active
BigD Avatar

Joined: Mon, Nov 26, 2007
100 Posts
1 Stars: 1 Votes


Did that


This user is offline



Thu, Apr 26, 2012 at 8:08:54 AM | Linked CAD file Visisbility Issues

#7

SBBMIKE


active

Joined: Tue, Oct 26, 2010
4 Posts
No Rating


And now i have the same problem ( revit 2012/vidia quadro fx 1700 and certified driver Winking

linked cad ( first perfect visible) and now it has disapeared.

Can only view it when i select it but it prints fine!

placed in view only and it's not in the background ... strange problem ....


This user is offline



Wed, May 9, 2012 at 7:55:39 PM | Linked CAD file Visisbility Issues

#8

SofiaClark


active

Joined: Mon, Jan 12, 2009
17 Posts
No Rating


I had this same problem and spoke with my Revit Structure teacher about it.  He was puzzled to but found this workaround.  Set your far clip offset to 25' or more.  It worked for me.  Hope this helps.


This user is offline



Thu, Aug 9, 2012 at 9:23:25 AM | Linked CAD file Visisbility Issues

#9

MaeDae315


active

Joined: Wed, Jun 27, 2012
4 Posts
No Rating


I had the same problem as well.  But setting the far clip option didn't work for me.  What did work was this: to select the .dwg (mine was a link and not an import) and then in the "properties" dialogue I changed the draw layer from "background" to "foreground".


This user is offline



Fri, Nov 9, 2012 at 6:25:33 PM | Linked CAD file Visisbility Issues

#10

MEBDesign


active

Joined: Thu, Jun 9, 2011
45 Posts
No Rating


I'm experiencing exactly the same problem, happens in different locations. Changing draw layer doesn't seem to make a difference.


This user is offline



Mon, Sep 23, 2013 at 9:33:02 PM | Linked CAD file Visisbility Issues

#11

Aaronemma1908


active

Joined: Wed, Jul 10, 2013
1 Posts
No Rating


It has to do with the Far Clipping.  Play with the different options for that view and it will show up with one of them.


This user is offline



Fri, Apr 17, 2015 at 5:47:58 PM | Linked CAD file Visisbility Issues

#12

MrLombardi


active

Joined: Wed, Apr 15, 2015
0 Posts
1 Stars: 1 Votes


My solution-

Select everything in current view by pressing ctrl+A

Filter results and select .dwg file

Under properties/other turn Draw Layer to Foreground




This user is offline



Wed, Mar 30, 2016 at 7:12:06 AM | Linked CAD file Visisbility Issues

#13

christiaandewit


active

Joined: Sun, Feb 11, 2007
0 Posts
No Rating


If you can select it, it's there. I think it's probably set to "background" instead of "foreground" and hidden behind another object. Once the dwg is selected, you can change this "Draw Layer" parameter in de options bar (the green bar between the ribon and your workspace) or at the properties of the dwg.


This user is offline



Wed, Feb 7, 2018 at 9:41:01 PM | Linked CAD file Visisbility Issues

#14

rbrown


active

Joined: Fri, Dec 14, 2007
1 Posts
No Rating


In case someone is looking at this old thread for answers:  What worked for me was to go to the default 3d view.  I could see the CAD file there. I got the Selection ID of the CAD link ("Manage" tab, "Inquiry" area on ribbon, "IDs of Selection" button).  Once I had the selection ID I went to the plan view where I wanted the CAD file to be visible, selected the CAD link using the selection ID ("Manage" tab, "Inquiry", "Select by ID").  Once selected then I right-clicked "Overide Graphics in View".  I saw that the visibility checkbox was filled, not checked.  I checked the box and the CAD file appeared in the view.  This all assumes the necessary worksets are active in the view.



Edited on: Wed, Feb 7, 2018 at 3:42:02 PM

This user is offline
