Forums >> Revit Building >> Technical Support >> Tile Pattern

Search this ThreadSearch this Thread | Page 1 of 1 |

Mon, Mar 19, 2012 at 4:35:37 PM | Tile Pattern

#1

JLink


active

Joined: Mon, Nov 20, 2006
22 Posts
No Rating


How can I make this tile pattern a fill pattern?

Does anyone know how to code this or use hatch22?  I cannot get it to repeat properly



http://tilecity.com/_tile_layouts/pattern_3f.jpg


This user is offline



Mon, Mar 19, 2012 at 4:48:02 PM | Tile Pattern

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 370 Votes


In order for it to be a Revit or AutoCAD pattern, you have to have a repeatable area in the x/y direction and you have to define the whole pattern to that size.  I don't see where this pattern repeats in the sample you provided.


This user is offline



Mon, Mar 19, 2012 at 6:15:23 PM | Tile Pattern

#3

LIZARD2806


active

Joined: Fri, May 5, 2006
262 Posts
3.5 Stars: 7 Votes


WWHUB, it is a repeating pattern, but the pattern moves AND rotates.


-----------------------------------

**Using Revit Architecture 2009, 2011, and 2012**

This user is offline



Tue, Mar 20, 2012 at 5:59:18 AM | Tile Pattern

#4

hugh


active

Joined: Tue, Jan 27, 2004
80 Posts
3.5 Stars: 4 Votes


It's a rosette of four tiles, arranged skewed in both X and Y. This is based on 2" by 5" tiles - easy to scale manually if necessary as everything is integer.



Try this:

;%VERSION=3.0

;%UNITS=INCH

*TILECITY

;%TYPE=MODEL

;-------------------------------------------------------------------------------;        Pattern written by HatchKit v2.7 Hatch Pattern Editor

;        HatchKit v2.7 Hatch Pattern Editor(c) Cadro Pty Ltd 1990-2012.

;        www.cadro.com.au/hatchkit/

;-------------------------------------------------------------------------------

;-Template=tilecity

;-Source  =C:\Documents and Settings\Hugh\Desktop\test\tilecity.PAT

;-Date    =20/03/2012

;-Time    =4:42:00 PM

;-------------------------------------------------------------------------------

90,0,2,12,1,2,-27

90,0,2,12,1,2,-27

90,0,3,12,1,2,-27

90,0,3,12,1,2,-27

90,0,4,12,1,3,-26

90,0,0,12,1,3,-26

90,0,0,12,1,3,-26

90,-2,4,12,1,3,-26

90,0,4,12,1,3,-26

90,-3,2,12,1,3,-26

90,2,5,12,1,3,-26

180,-2,5,12,1,3,-26

180,0,4,12,1,3,-26

180,0,2,12,1,7,-22





Attached Files

-----------------------------------

Hugh Adamson

www.hatchkit.com.au

This user is offline

View Website

Tue, Mar 20, 2012 at 12:06:25 PM | Tile Pattern

#5

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 370 Votes


I have always built my patterns by hand.  Either I forgot or I did not know that you could define a skewed pattern.



It is never to late to learn (or re-learn).  But sometimes its a bummer when you forget.



Thanks hugh


This user is offline



Tue, Mar 20, 2012 at 1:00:52 PM | Tile Pattern

#6

LIZARD2806


active

Joined: Fri, May 5, 2006
262 Posts
3.5 Stars: 7 Votes


I hear that, WWHUB.  Everytime I do a hatch pattern I have to relearn it because I do it so infrequently.  Nice job, Hugh.


-----------------------------------

**Using Revit Architecture 2009, 2011, and 2012**

This user is offline



Fri, Mar 23, 2012 at 5:27:45 PM | Tile Pattern

#7

mertens3d


active

Joined: Mon, Jul 6, 2009
22 Posts
5 Stars: 2 Votes


JLink,

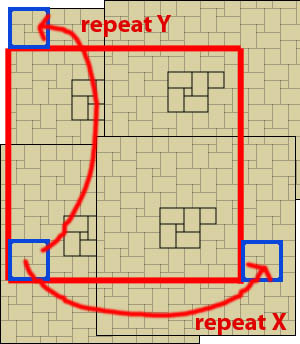

If you wanted to do it in hatch22 you'd have to define your pattern as shown in the attached image.

All the lines within the red boundary would need to be included in the pattern definition.

As you can see, in this case this will create a pattern file that is larger than the one that much larger than the one from hatchkit.

Hugh,

How does this work in hatchkit?

Do you just draw the spinner shape and then tell it to offet in the x and y a certain amount (within your program)?



...gregory



Attached Images


-----------------------------------

...gregory

http://mertens3d.com

my Revit - Bugs/ Issues/ Requests

This user is offline



Fri, Mar 23, 2012 at 5:32:27 PM | Tile Pattern

#8

mertens3d


active

Joined: Mon, Jul 6, 2009
22 Posts
5 Stars: 2 Votes


a little more detail

Even though the .pat file is larger than the hatchkit one, I suspect it's not any slower for Revit to draw.

But I'd need to verify that somehow.

...gregory



Attached Images


-----------------------------------

...gregory

http://mertens3d.com

my Revit - Bugs/ Issues/ Requests

This user is offline



Sat, Mar 24, 2012 at 9:49:51 AM | Tile Pattern

#9

hugh


active

Joined: Tue, Jan 27, 2004
80 Posts
3.5 Stars: 4 Votes


>Hugh,

>How does this work in hatchkit?

>Do you just draw the spinner shape and then tell it to offet in the x and y a certain amount (within your program)?

Basically, yes. The attached picture shows the arrangement for the template discussed above.

We offer a full demonstration to download from http://www.hatchkit.com.au/download.php

We're working on an extensive update.





Attached Images


-----------------------------------

Hugh Adamson

www.hatchkit.com.au

This user is offline

View Website

Sat, Mar 24, 2012 at 12:10:38 PM | Tile Pattern

#10

hugh


active

Joined: Tue, Jan 27, 2004
80 Posts
3.5 Stars: 4 Votes


This pattern can be apecified using a 29x29 square arrangement of about 440 lines.



Attached Images


-----------------------------------

Hugh Adamson

www.hatchkit.com.au

This user is offline

View Website
