Forums >> Revit Building >> Technical Support >> Curtain Wall queries

Search this ThreadSearch this Thread | Page 1 of 1 |

Tue, Mar 13, 2012 at 4:10:37 PM | Curtain Wall queries

#1

Bobby12


active

Joined: Tue, Mar 13, 2012
10 Posts
No Rating


Hi there,

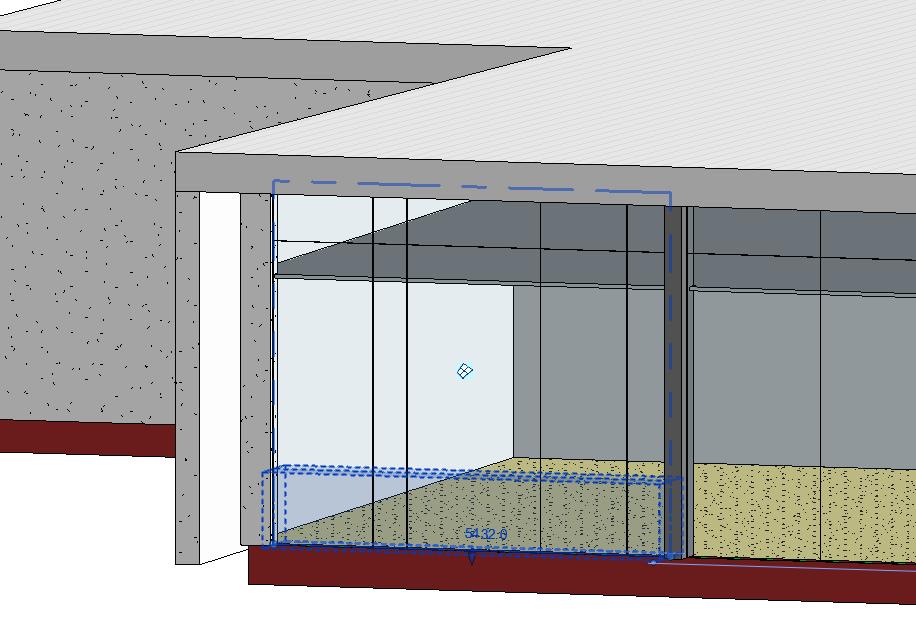

I'm trying to recreate this curtain wall in Revit (I've included a screen grab of a SketchUp model). The first query is relating to Attach Top/Base. My flat roof has a slight fall, so I haven't made a level that can act as a Top Constraint for the curtain wall - I hoped I might be able to Attach Top/Base. But when I do, there seems to be an outline of the original size left over. See the example I have included: I originally made the wall 1m high, then used Attach Top/Base - but as you can see, a 1m high outline remains. Perhaps this isn't a problem; it just seemed strange.

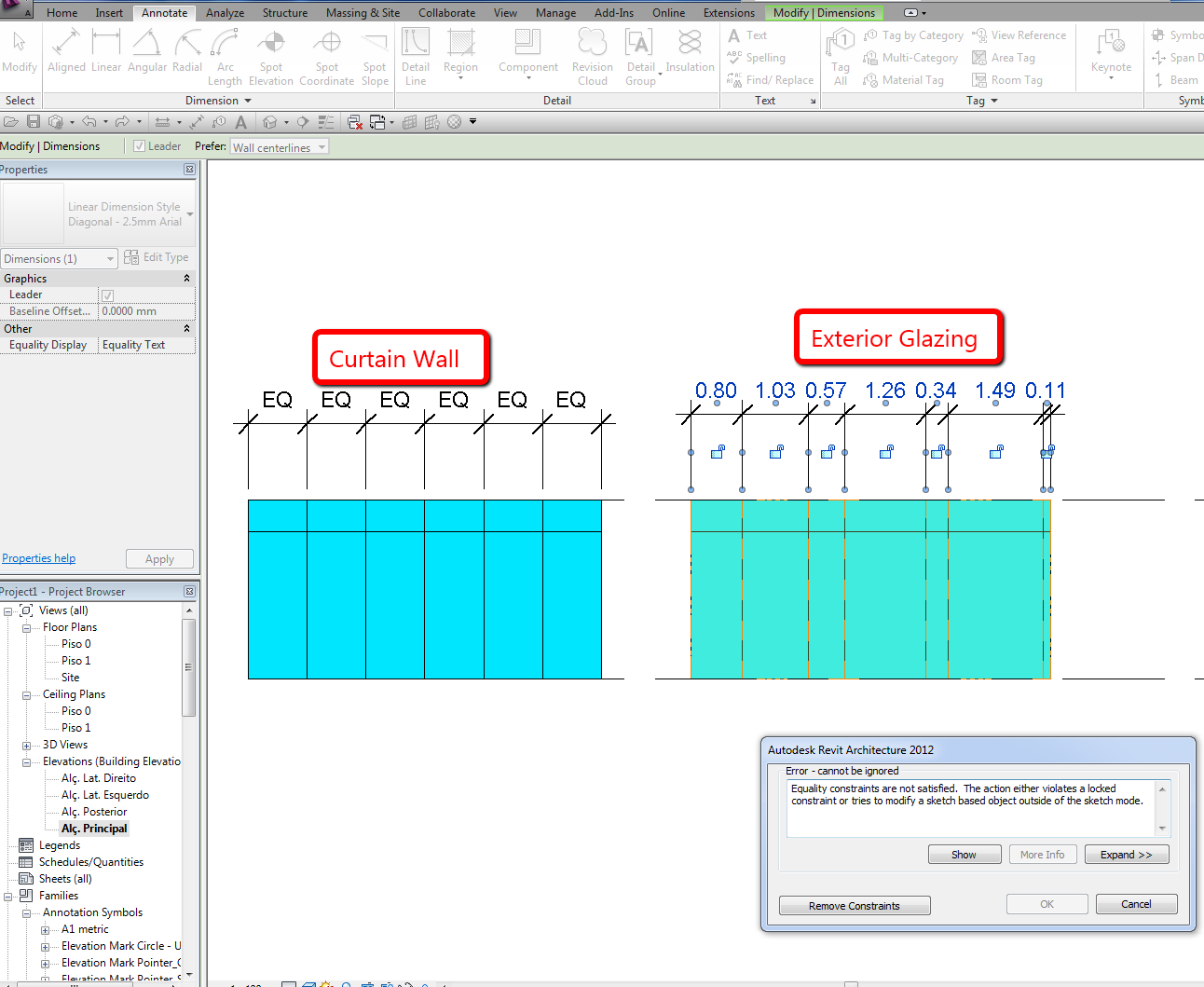

The second query I have relates to the grid of the curtain wall. I've tried it using both standard Curtain Wall and Exterior Glazing. I've attempted to add divisions to the glazing, and then to Equalise using the Aligned Dimension tool. But I keep getting an error relating to constraints (see attached picture). I've tried "Remove Constraints" but it doesn't seem to do anything.



I hope you can help. If you need any more info, I'll respond as quickly as I can.



Thanks in advance.



Attached Images

104143_REVIT_-_SketchUp_example.JPG104143_REVIT_-_Attach_Top_Base.png104143_REVIT_-_Attempt_to_Equalise.JPG

This user is offline



Tue, Mar 13, 2012 at 4:12:49 PM | Curtain Wall queries

#2

Bobby12


active

Joined: Tue, Mar 13, 2012
10 Posts
No Rating


& I forgot to add: I'm using Revit 2012.


This user is offline



Tue, Mar 13, 2012 at 6:46:04 PM | Curtain Wall queries

#3

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes


You are using "Exterior Glazing" instead a "Curtain Wall", you will need to UNPIN those curtain grids
