Forums >> Revit Building >> Technical Support >> Brise Soleil Modelling

Search this ThreadSearch this Thread | Page 1 of 1 |

Tue, Mar 13, 2012 at 3:40:58 PM | Brise Soleil Modelling

#1

MEBDesign


active

Joined: Thu, Jun 9, 2011
45 Posts
No Rating


Trying to get to grips with various elements ot a project we  are working on, sometimes things just don't work how you expect!

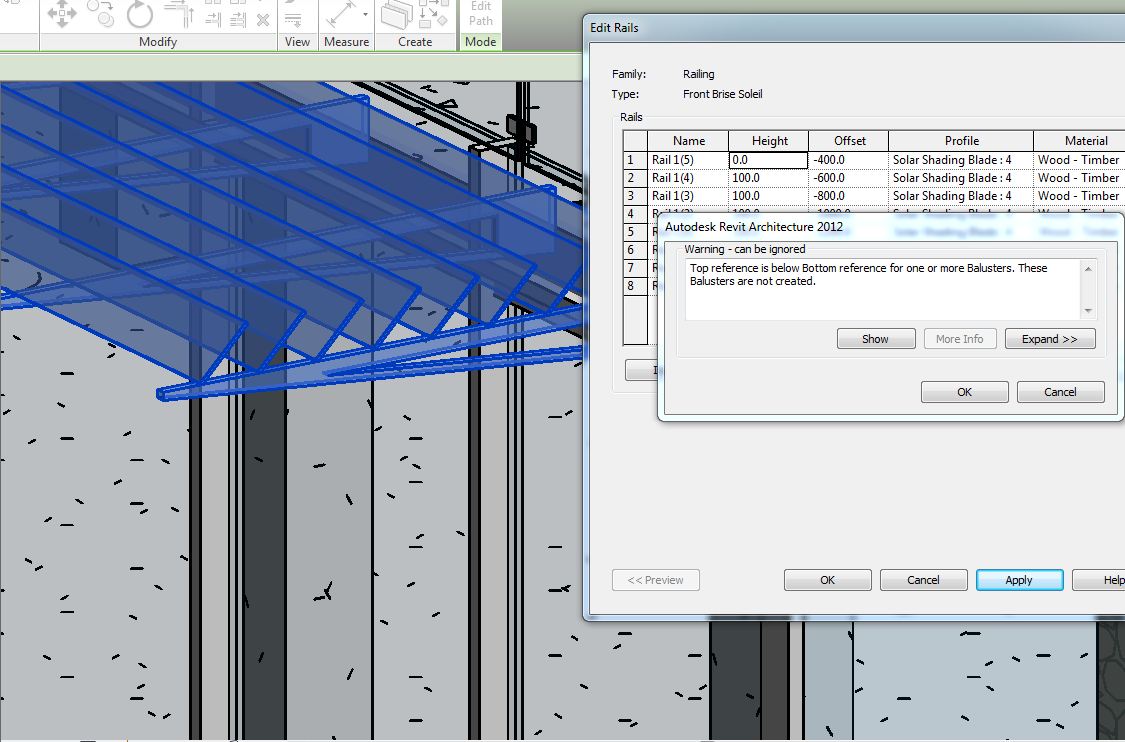

Trying to model brise soleil as a railing element, have the arms as balustrades and blades as railings however it won't allow me to move the blades between or even below the arms. At the moment the closest I can get them is setting them at a height of 100mm. If I enter the height any lower I get the message 'Top reference is below bottom refernce for one of more Balusters.' I've attached image to show what's going on.

What am I doing wrong?



Thanks



Simon



Attached Images


This user is offline



Tue, Mar 13, 2012 at 3:48:26 PM | Brise Soleil Modelling

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 363 Votes


Using a railing for this is just plain ackward.  We use one family for the idividual brackets and a profile family for an in-place sweep that does the blades.  You could also does as independent family with adjustible length but that will not do a mitered corner and the in-place will.


This user is offline



Tue, Mar 13, 2012 at 4:09:04 PM | Brise Soleil Modelling

#3

MEBDesign


active

Joined: Thu, Jun 9, 2011
45 Posts
No Rating


Hadn't thought of that strategy, thanks!


This user is offline



Tue, Mar 13, 2012 at 9:41:27 PM | Brise Soleil Modelling

#4

LIZARD2806


active

Joined: Fri, May 5, 2006
262 Posts
3.5 Stars: 7 Votes


Search for "Kawneer 1600 Sunshade" in the downloads and you'll find one I made as a railing, if you choose to do it that way.  You'll need to open the file and then transfer it in to your job.  It is nice to have it automatically miter corners and a cinch to place into the model.  I respectfully disagree with WWHUB that it is awkward, as this is as simple as simple can be, at least it was for me.  I am sure he can convince me otherwise....he just hasn't yet.  Give this family a try and judge for yourself.

HTH


-----------------------------------

**Using Revit Architecture 2009, 2011, and 2012**

This user is offline



Wed, Mar 14, 2012 at 9:26:08 AM | Brise Soleil Modelling

#5

MEBDesign


active

Joined: Thu, Jun 9, 2011
45 Posts
No Rating


Lizard,

I had seen that model, and was going to try it as my next step, maybe I should have a look at yours anyway and explore the settings. I was more frustrated beause I didn't undertstand what I was doing wrong in the settings. Thanks


This user is offline



Wed, Mar 14, 2012 at 12:34:26 PM | Brise Soleil Modelling

#6

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 363 Votes


Lizard ... I didn't say you could not use railings - just that they were awkward.  Railing really just use the sweep process.  The problem is the ballusters.  Railings work for stairs because the balluster placement is predictable.  Not so with a sun shade.  And setting up the railings is more difficult than doing one profile that defines all of the fins and relationship in one sketch.



MEP - It will be a good exercise anyway.


This user is offline
