Forums >> Revit Building >> Technical Support >> Problematic Projection Lines In Section
|
|
active
Joined: Wed, Dec 14, 2011
4 Posts No Rating |
I have been having an problem with my projected element lines in my sections. As the problem only appears once I open the print preview and not within the model, I think it may be a print setting issue but I could be wrong.

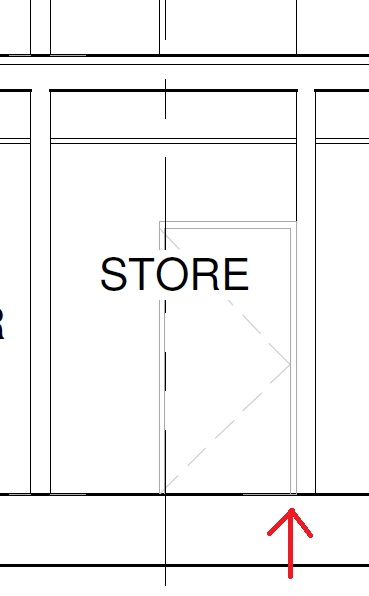

I have attached a jpeg showing an example.
The elevation of the door has overidden to a half tone but even though it is a projection it appears to take presidence to wall which has been cut. I have tried different methods to achieve this effect (instead of using halftone, simply changing the line colour etc) but all have been unsuccessful.
Any help would be great. Ultimately I need my cut elements to stand out more from my projected elements, giving my sections better clarity.
I realise that changing line weights could also achieve better deliniation but I don't particularly want to change this project wide.
Thanks in advance.
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
|
Lineweights can be set by view if you don't want to change project wide. And these can be controlled by view templates.
|
This user is offline |
|
|
active
Joined: Wed, Jan 6, 2010
99 Posts
|
I usually draw over with detail lines.
|
This user is offline |
View Website
|
|
|
