Forums >> Revit Building >> Technical Support >> Mapping faces

Search this ThreadSearch this Thread | Page 1 of 1 |

Mon, Mar 5, 2012 at 5:31:02 AM | Mapping faces

#1

brjdk


active

Joined: Sun, Jan 23, 2011
9 Posts
No Rating


Hi I'm trying to figure out how to adjust textures on single faces. I would like to be able to move, scale and rotate textures, but I simply can't find where to do it. Is it actually possible? Thanks

This user is offline



Mon, Mar 5, 2012 at 8:59:18 AM | Mapping faces

#2

brjdk


active

Joined: Sun, Jan 23, 2011
9 Posts
No Rating

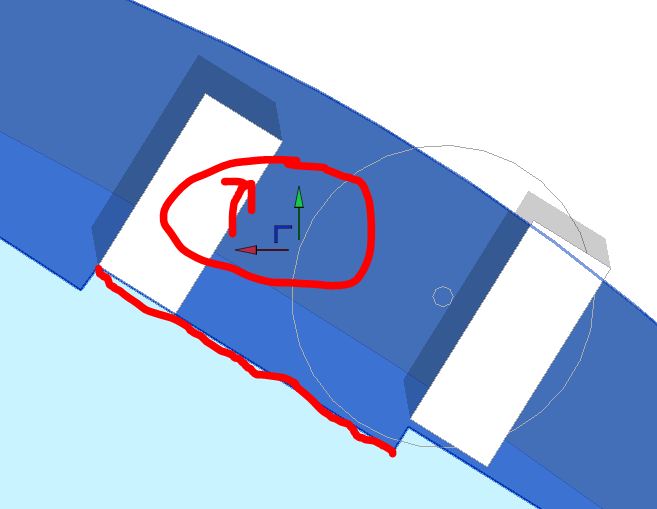

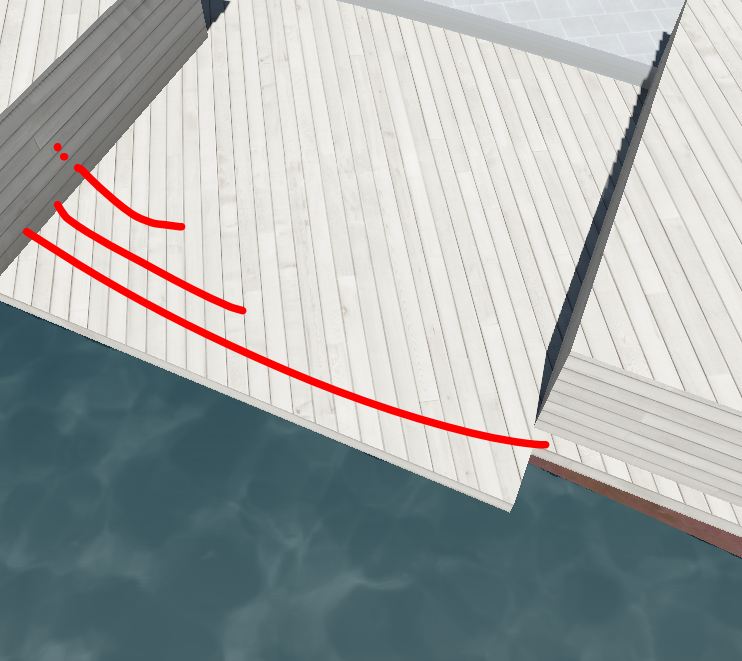

I'm asking this, because I would like the wood to be aligned like shown in the attached image.

I hope someone know how to change the alignment.

Thanks



Attached Images


This user is offline



Mon, Mar 5, 2012 at 1:51:36 PM | Mapping faces

#3

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 369 Votes


From your HELP:

Texture Alignment






Use the Texture Alignment tool to align the texture of the render appearance to the surface pattern of the material (defined on the Graphics tab of the Materials dialog). When you render a 3D view, the rendered image displays the texture, positioned as specified using the Texture Alignment tool.



Topics in this section

AND



Aligning the Surface Pattern on a Model Element

To align a surface pattern on a model element

  1. Open a project view that displays the model element with the surface pattern to align.

    To specify a surface pattern for the material of the model element, see Changing the Display Properties of a Material. If the surface pattern does not display in the view, you may need to change the view’s detail level to fine, or zoom in on the model element.

  2. Place the cursor over a line of the surface pattern.
  3. Press TAB one or more times until the surface pattern line highlights.

  4. Click to select the surface pattern line.
  5. Move the selected surface pattern line as desired, using one or more of the following techniques:
    • Press the arrow keys to nudge the surface pattern up, down, left, or right, in small increments.
    • Use the Move tool to move it a specified distance. See Moving Elements with the Move Tool.
    • Use the Rotate tool to rotate the surface pattern. See Rotating Elements.
    • Use the Align tool to select a model reference with which to align the surface.


This user is offline



Mon, Mar 5, 2012 at 7:55:20 PM | Mapping faces

#4

brjdk


active

Joined: Sun, Jan 23, 2011
9 Posts
No Rating


Hi wwhub

I'm sure doing someting wrong.

I create a mass, add a texture, select a texture line and tries to rotate it. But it's the mass face that rotate, not the texture :-(


This user is offline
