Forums >> Revit Building >> Technical Support >> sweeps/reveals on curved wall

amokkamokka

active

Joined: Wed, Mar 17, 2010
5 Posts
No Rating

hey there

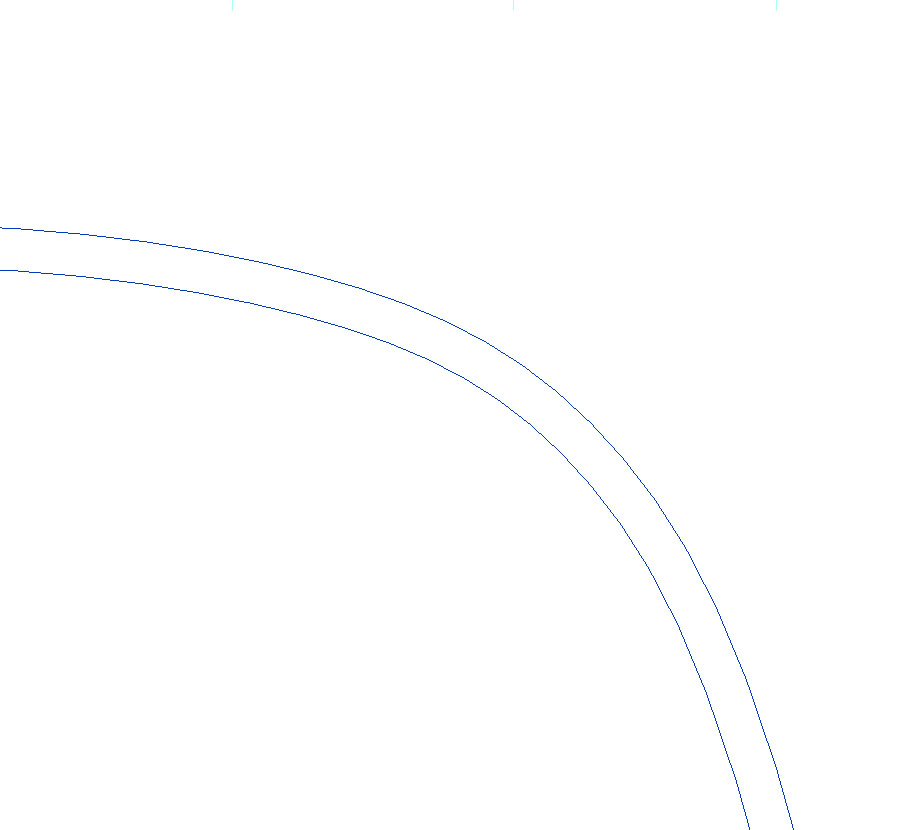

i have an issue with a curved inner wall. I need to do this panel-system (see att.) on a curved innerwall (see 2. att.) but it gives me a lot of problems. - i've tried with a custom sweep/reveal profile, but it seems that revit divides my curved wall into a lot of straight walls, so i cant really place my sweeps. i've tried to build a mass in the shape of the wall incl. the panels, but revit simply tells me that it cant create the form!

I'm soooo frustrated right now - have no idea how to make this work...

hope you guys can help me?!

Attached Images

This user is offline

amokkamokka

active

Joined: Wed, Mar 17, 2010
5 Posts
No Rating

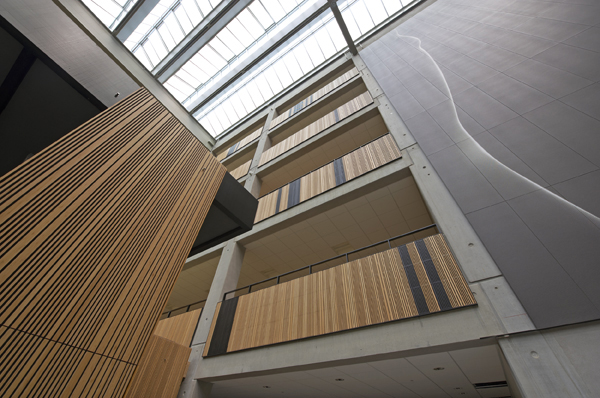

*it's the wood panels on the left i need to recreate!

This user is offline

amokkamokka

active

Joined: Wed, Mar 17, 2010
5 Posts
No Rating

OK - never mind... i figured it out!

feel kind of stupid - but the only problem was that i used the 'pick lines' tool when making the wall. It works fine when you draw tje wall yourself!
