Forums >> Revit Building >> Technical Support >> Exported model patterns shift in DWG

Search this ThreadSearch this Thread | Page 1 of 1 |

Thu, Mar 1, 2012 at 7:44:41 PM | Exported model patterns shift in DWG

#1

JFloor


active

Joined: Sat, Dec 17, 2011
1 Posts
No Rating

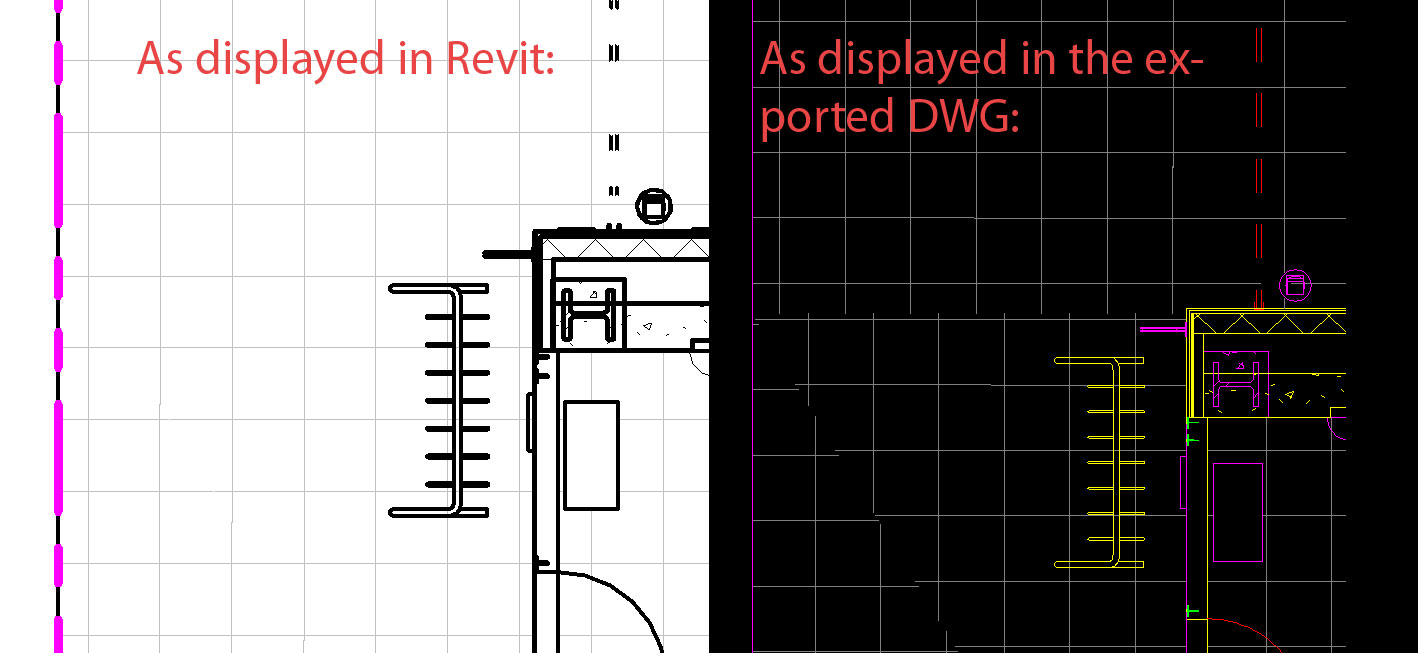

Working with sloping floors with a score pattern.  Everything looks great in Revit, but when exported to DWG (as the client requires), the resulting hatches come through totally out of whack from one sloping plane to another.  See comparison in uploaded jpg.  Have tried the align tool and exporting to DXF, but the same result.  Floors must be built with the slope to drain for coordinating with other consultants.  Have resorted to 2d workaround (filled regions), but not exactly satisfactory.  Ideas?
