Hello all,

The age old problem of showing load bearing walls on a first floor plan. Has anyone created a PAT. file (fill pattern) that is a grey fill colour with black diagonal lines?

I've successfully overlayed two wall plans, one with the diagonal hatch (transparent) and one with the solid fill, but this seems like a tedious work around. I found a hatch generator but that only allowed me to use lines and not a solid fill as well.

Does anyone else have alternative solutions?

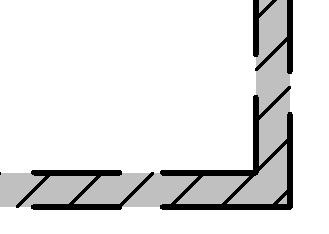

Attached Images
