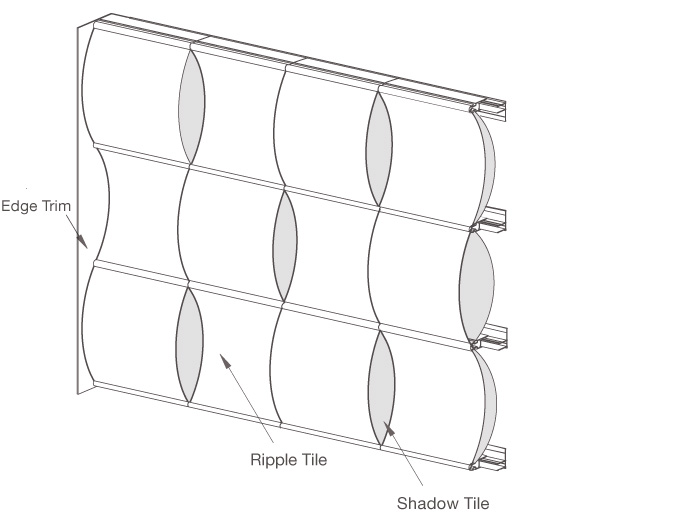

So I found this ripple wall feature that I want to recreate in revit for a project. I have attached a picture of what I'm trying

to make, and also files of what I've come up with so far. As you can see, I'm not doing a great job. The wave pattern,

when applied to a mass is tileted even though I have not rotated it at all. On top of that, it just doesn't look as elegant

as I would like.

I picked a 1-2 step panel system family to edit. Was that the right choice?

Does anyone have any tips on how to improve my mass?

Attached Images

Attached Files 102833_Ripple_Wall.rfa 102833_1-2_Step_Surface_wave_pattern.rfa

This user is offline

Typhoon

site moderator|||

Joined: Tue, May 22, 2007
5921 Posts

Check this blog: http://buildz.blogspot.com/search?updated-max=2010-11-13T12:12:00-05:00&max-results=7

-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT
