Thu, Jan 19, 2012 at 6:04:16 PM | building pad, shared edges

#1

Passa


active

Joined: Sun, Apr 10, 2011
7 Posts
No Rating


Hi,

How can pads share edges? I have tried what have been suggested in Forums discussions:

-          Draw the pad 2 on different level, move it down into position

-          copying the line, which I want to share an edge to the clipboard and then pasting that into the other pad sketch

-          I tried a reference plane as the shared line

-          copy/paste pad 2 from clipboard

None of this works. I always get a tiny slim slice between my pads. Please can anyone help.


This user is offline



Thu, Jan 19, 2012 at 6:25:09 PM | building pad, shared edges

#2

mathill


active

Joined: Mon, Jan 21, 2008
26 Posts
No Rating


select pad - edit boundary - copy the lines - close the pad - start a new pad - paste aligned the lines from the first pad - delete all the lines you do not want and draw the rest - should work...


This user is offline



Thu, Jan 19, 2012 at 8:43:23 PM | building pad, shared edges

#3

Passa


active

Joined: Sun, Apr 10, 2011
7 Posts
No Rating


mathill,

thank you for you response. unfortunately it works only when the building pad is level & rectangular.

i have 2 sloping building pads which are connected but with different slopes/gradients. any idea how i can share those  edges?


This user is offline



Thu, Jan 19, 2012 at 10:00:20 PM | building pad, shared edges

#4

mbsteve


active
mbsteve Avatar

Joined: Fri, Sep 22, 2006
759 Posts
4 Stars: 12 Votes


pads are a real pain, did you try spliting the topo surface


This user is offline



Fri, Jan 20, 2012 at 11:02:44 AM | building pad, shared edges

#5

Passa


active

Joined: Sun, Apr 10, 2011
7 Posts
No Rating


unfortunately not. when i draw a split surface and locate the pads exactly on the boundary lines, I get 'A Pad can't extend beyond the edge of a Toposurface'. I have to move them slightly away and then I get the tiny upstand again.

any more ideas how to solve this?


This user is offline



Fri, Jan 20, 2012 at 2:37:09 PM | building pad, shared edges

#6

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 348 Votes

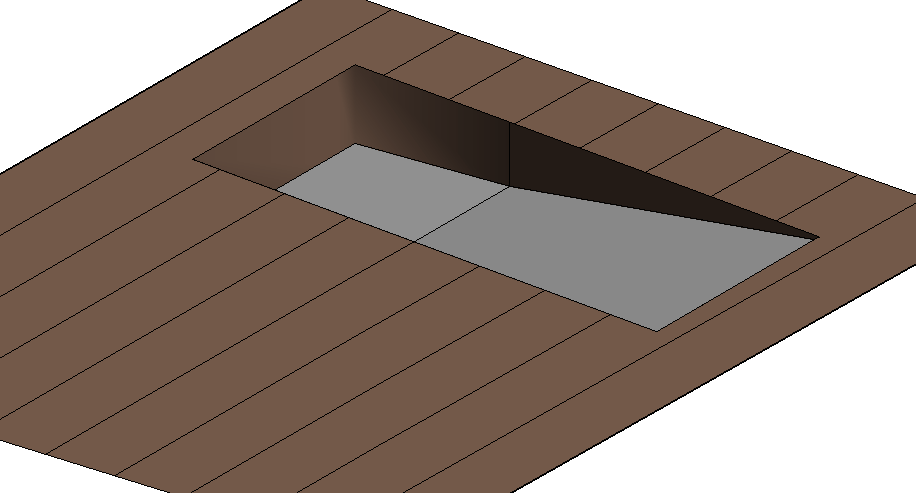

If the shared pad ege is level, then mathills method should work.  Does for me - see image.



Attached Images


This user is offline



Sat, Jan 21, 2012 at 9:03:06 PM | building pad, shared edges

#7

Passa


active

Joined: Sun, Apr 10, 2011
7 Posts
No Rating


hi wwhub,

do both of your pads slope? when i draw 2 sloping pads with shared edge on same level -100mm offset topographie (like a road consisting of 2 parts with 2 different slopes), it won't work unfortunately. I think if one pad is straight, it will work. Thank you anyway. if you have any more ideas, i would be grateful.


This user is offline



Sun, Jan 22, 2012 at 5:18:39 PM | building pad, shared edges

#8

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 348 Votes


Look at the image and you will see that both slabs slope.  As mathill says, edit the one slab and copy the lines to clipboard.  Paste those into your new sketch and delete all of the lines except the shared edge.


This user is offline



Thu, Mar 27, 2014 at 12:20:39 AM | building pad, shared edges

#9

Moogooguypan


active

Joined: Fri, Feb 20, 2009
0 Posts
No Rating


*****  ANSWER****

Pain in my a$$$$  ive been here.  Here is the solution:  Make all your pads on exactly the same level with all the same properties.  Begin by sketching each pad region one at a time.  You should now be able to complete the pad sketch with the shared edges.  After this is done, Select your pad and modify the properties to change the elevations, structure etc.

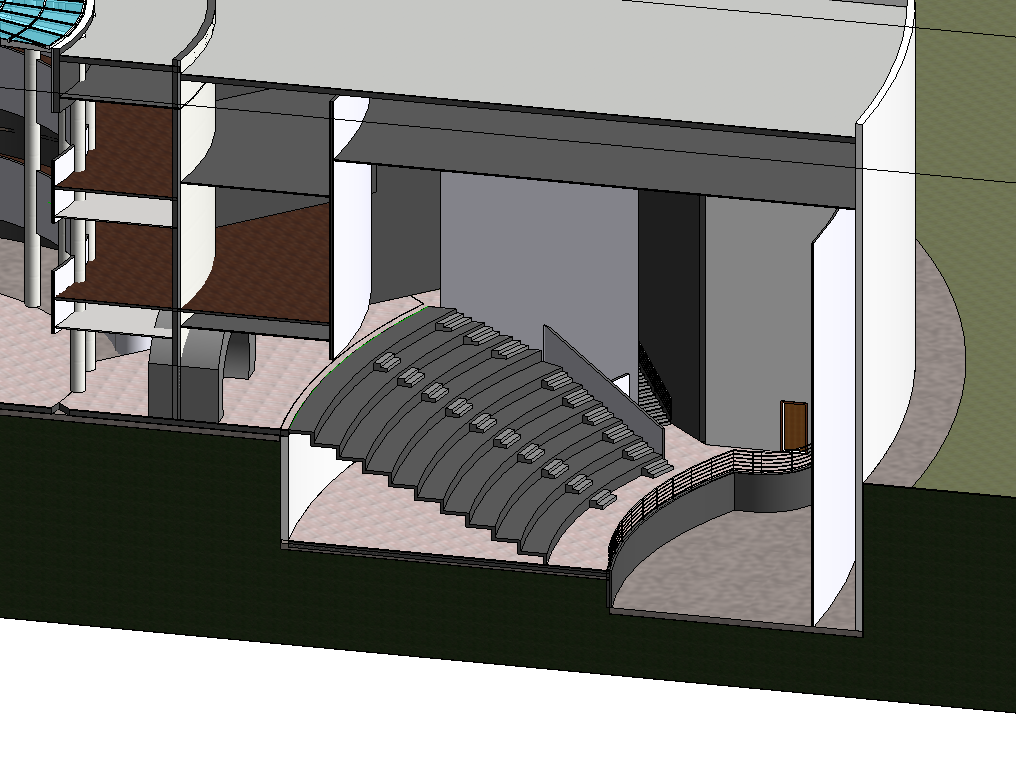

Attached Images


This user is offline



Thu, Mar 27, 2014 at 4:42:59 PM | building pad, shared edges

#10

mbsteve


active
mbsteve Avatar

Joined: Fri, Sep 22, 2006
759 Posts
4 Stars: 12 Votes


if this works you are genious


This user is offline
