Forums >> Revit Building >> Technical Support >> Stair nosing

Search this ThreadSearch this Thread | Page 1 of 1 |

Tue, Jan 17, 2012 at 6:23:34 PM | Stair nosing

#1

jarosa


active
jarosa Avatar

Joined: Tue, Feb 19, 2008
251 Posts
4 Stars: 5 Votes


Stair nosing shows in section, 3d and elevation ... but not in plan. What do I do to make it show in plan?


This user is offline

View Website

Tue, Jan 17, 2012 at 8:05:15 PM | Stair nosing

#2

teafoe5


site moderator|||
teafoe5 Avatar

Joined: Fri, Nov 12, 2010
1749 Posts
4.5 Stars: 45 Votes


Are your stairs not showing at all?  Can you show a pic of what is happening.  Make sure your visability graphics your stairs are checked on.


This user is offline

View Website

Tue, Jan 17, 2012 at 8:50:58 PM | Stair nosing

#3

dgcad


active
dgcad Avatar

Joined: Fri, Mar 18, 2005
1231 Posts
3.5 Stars: 34 Votes


Actually the nosing probably IS showing in plan but it's wonkie.

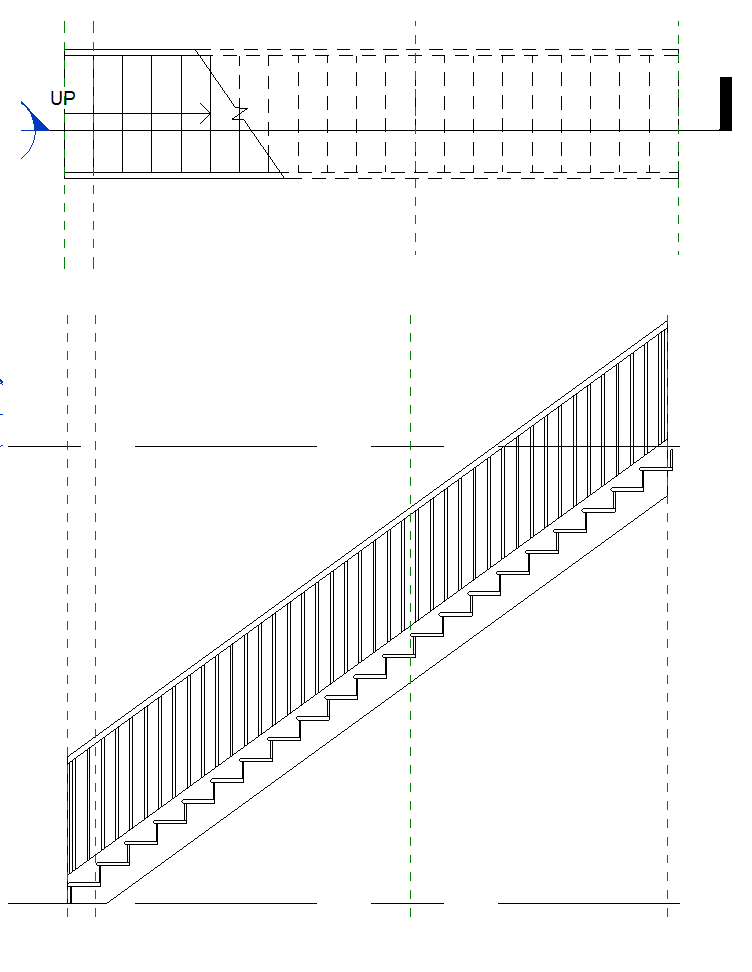

See image.

Try using reference planes to show where the linework is. Then compare the plan to the section.

Stairs definately have their issues as far as creating an 'accurate' facsimilie of what really would be the stair.

Specifically when you 'end with riser'. Look at the top of the stair and compare the plan to the section.

There are weak work arounds.

The monolithic stair works much better.





Attached Images


-----------------------------------

.

FULL 'DOWNLOAD ACCESS' to all 850+ CADclips videos for only $150



This user is offline

View Website

Tue, Jan 17, 2012 at 9:11:45 PM | Stair nosing

#4

mhans


active

Joined: Tue, Nov 7, 2006
456 Posts
3 Stars: 10 Votes

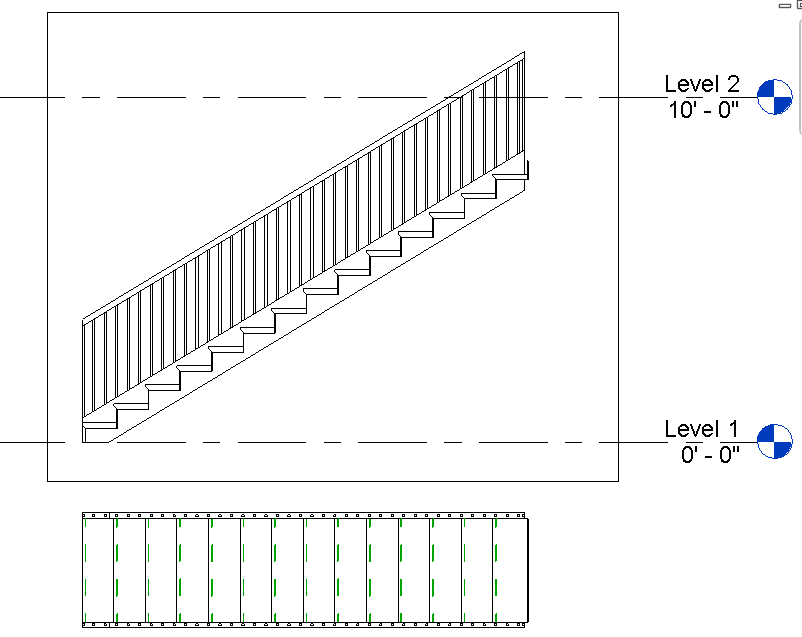

Are you looking for the line of nosing as hidden on plan?



Attached Images


-----------------------------------

Motto: "No Post left behind"

This user is offline



Mon, Jan 23, 2012 at 6:58:40 PM | Stair nosing

#5

jarosa


active
jarosa Avatar

Joined: Tue, Feb 19, 2008
251 Posts
4 Stars: 5 Votes


Ok I'm back.

Nosing on sides of stair shows in elevation but not in plan????





Edited on: Mon, Jan 23, 2012 at 12:59:39 PM

This user is offline

View Website

Mon, Jan 23, 2012 at 7:10:14 PM | Stair nosing

#6

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 374 Votes


You mean the hidden riser line doesn't show.  The edge of the nosing is the tread edge and Revit will not show the hidden riser line.  If you want that, then you will have to add it.


This user is offline



Mon, Jan 23, 2012 at 7:35:42 PM | Stair nosing

#7

jarosa


active
jarosa Avatar

Joined: Tue, Feb 19, 2008
251 Posts
4 Stars: 5 Votes


Not the hidden riser line.

I selected the "Apply nosing Profile: Front, Left and Right" in the type properties. No show on left and right in plan.


This user is offline

View Website

Mon, Jan 23, 2012 at 7:50:17 PM | Stair nosing

#8

mhans


active

Joined: Tue, Nov 7, 2006
456 Posts
3 Stars: 10 Votes


Sorry, no nosing will show left, front or right on plan view.


-----------------------------------

Motto: "No Post left behind"

This user is offline



Mon, Jan 23, 2012 at 7:59:31 PM | Stair nosing

#9

jarosa


active
jarosa Avatar

Joined: Tue, Feb 19, 2008
251 Posts
4 Stars: 5 Votes


Figured. No big worry but ..... ???


This user is offline

View Website

Mon, Jan 23, 2012 at 8:27:10 PM | Stair nosing

#10

dgcad


active
dgcad Avatar

Joined: Fri, Mar 18, 2005
1231 Posts
3.5 Stars: 34 Votes


Stairs have a few flaws.

No doubt about it. . . . . and no changes / improvements in 3-4 years at this point.

The first thing I tell my students is "Do not get caught up in stair and curtain wall details".

REVIT has some short comings in those areas that may or may not ever get addressed.


-----------------------------------

.

FULL 'DOWNLOAD ACCESS' to all 850+ CADclips videos for only $150



This user is offline
