hello every body ,

i have to make gable mass in place family how can i do it , when i tried to made it its be flat not gable can you help me please ?


This user is offline



Mon, Jan 16, 2012 at 4:34:02 PM | gable mass in place model

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 380 Votes


Do you really need a mass or could you just model a gabel roof?


This user is offline



Mon, Jan 16, 2012 at 4:38:44 PM | gable mass in place model

#3

husam3


active

Joined: Tue, Oct 11, 2011
39 Posts
No Rating


no i need it amss not roof


This user is offline



Mon, Jan 16, 2012 at 4:41:08 PM | gable mass in place model

#4

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes


Put some images of what you want please.




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Mon, Jan 16, 2012 at 4:43:27 PM | gable mass in place model

#5

husam3


active

Joined: Tue, Oct 11, 2011
39 Posts
No Rating


i need to make a mass for building which is her shape cupe with gable roof so the total shape it will be gable mass

sorry i dont have pic


This user is offline



Mon, Jan 16, 2012 at 4:45:37 PM | gable mass in place model

#6

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 380 Votes


Just extrude the form....


This user is offline



Mon, Jan 16, 2012 at 4:46:57 PM | gable mass in place model

#7

husam3


active

Joined: Tue, Oct 11, 2011
39 Posts
No Rating


so there is no way to make it in place ?


This user is offline



Mon, Jan 16, 2012 at 5:06:01 PM | gable mass in place model

#8

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 380 Votes

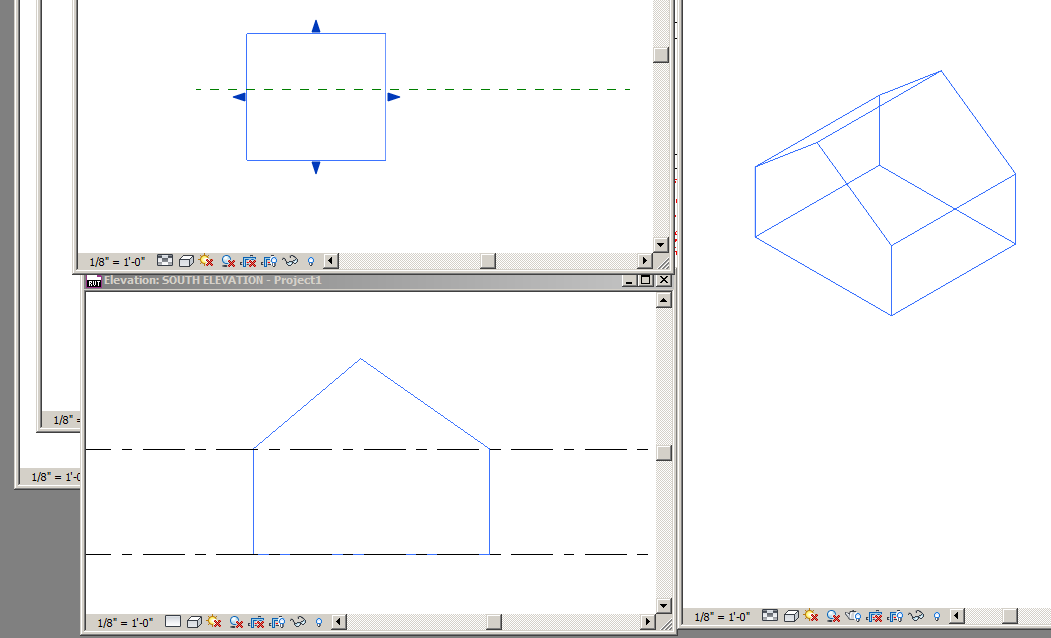

Like this?



Attached Images


This user is offline



Mon, Jan 16, 2012 at 5:16:25 PM | gable mass in place model

#9

husam3


active

Joined: Tue, Oct 11, 2011
39 Posts
No Rating


YES , THAT WHAT I WANT


This user is offline



Mon, Jan 16, 2012 at 5:20:55 PM | gable mass in place model

#10

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 380 Votes


  1. Create a reference plane in your plan view to work from.
  2. Switch do your elevation and turn on mass.
  3. Using the reference plane sketch the form - mass category.
  4. Set the extruded form depth.

This user is offline



Mon, Jan 16, 2012 at 5:23:01 PM | gable mass in place model

#11

husam3


active

Joined: Tue, Oct 11, 2011
39 Posts
No Rating


THANK YOU SO MUCH , I LL TRY TO DO IT

APPRECIATED THAT


This user is offline



Mon, Jan 16, 2012 at 5:43:58 PM | gable mass in place model

#12

dgcad


active
dgcad Avatar

Joined: Fri, Mar 18, 2005
1231 Posts
3.5 Stars: 35 Votes

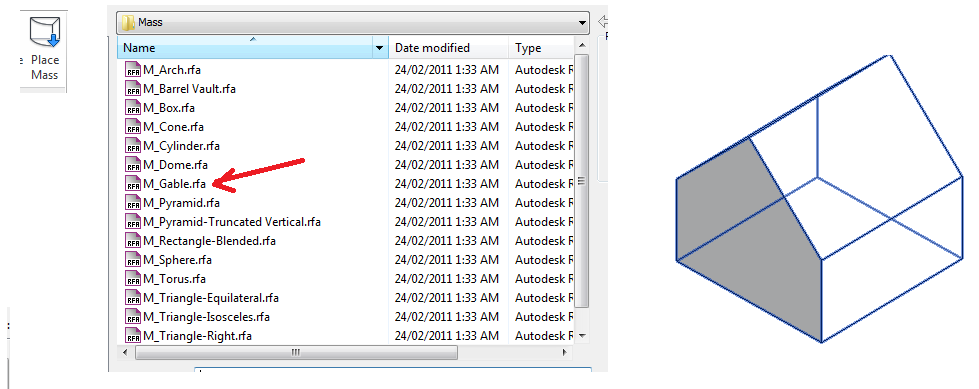

If I understand this correctly, what about loading one of the predefined Mass Element Families that comes with REVIT ?

There is a gable family ready to go.

See Image.





Attached Images


-----------------------------------

.

FULL 'DOWNLOAD ACCESS' to all 850+ CADclips videos for only $150



This user is offline

View Website

Mon, Jan 16, 2012 at 5:53:59 PM | gable mass in place model

#13

husam3


active

Joined: Tue, Oct 11, 2011
39 Posts
No Rating


yes i already used this one for some  building but others its has compecated edges so i cant use it beacause the edgs are not the same


This user is offline



Mon, Jan 16, 2012 at 5:54:57 PM | gable mass in place model

#14

husam3


active

Joined: Tue, Oct 11, 2011
39 Posts
No Rating


my project is masre plan and i want to modeling all building as masses i hope i can explane it correctly


This user is offline



Tue, Jan 17, 2012 at 12:41:13 AM | gable mass in place model

#15

mhans


active

Joined: Tue, Nov 7, 2006
456 Posts
3 Stars: 10 Votes


If it's a lot of gables, would you like to try sketchup and import it to revit?


-----------------------------------

Motto: "No Post left behind"

This user is offline
