Thu, Jan 12, 2012 at 11:08:13 PM | conceptual mass problem

#1

davidlowery


active

Joined: Fri, Oct 2, 2009
38 Posts
No Rating


I've got a conceptual mass issue here.  I have a large conceptual mass (a huge tangle of piping, walls, and ductwork) and I would like to print out various levels of it.  But all the levels show everything, as if my view range is unlimited and I see the floor, ceiling, 2nd, and 3rd levels all at once.  HELP!


This user is offline



Fri, Jan 13, 2012 at 5:37:57 PM | conceptual mass problem

#2

mhans


active

Joined: Tue, Nov 7, 2006
456 Posts
3 Stars: 10 Votes


Are you on the top floor or site plan looking down on a wireframe view? Or you have not come up with levels? Or you have overlays? Or can you show a screenshot so we would know that is going on?


-----------------------------------

Motto: "No Post left behind"

This user is offline



Fri, Jan 13, 2012 at 10:02:05 PM | conceptual mass problem

#3

dgcad


active
dgcad Avatar

Joined: Fri, Mar 18, 2005
1231 Posts
3.5 Stars: 34 Votes


I was able to replicate your problem.

The fix was two fold.

a) Adjust 'View range' Top and Cutplane. (maybe check the bottom and depth as well.)

b) Remove the default 'Underlay' that the Conceptual Mass Template applies to each level plan view.

Also use hidden or shaded view. Not Wireframe.

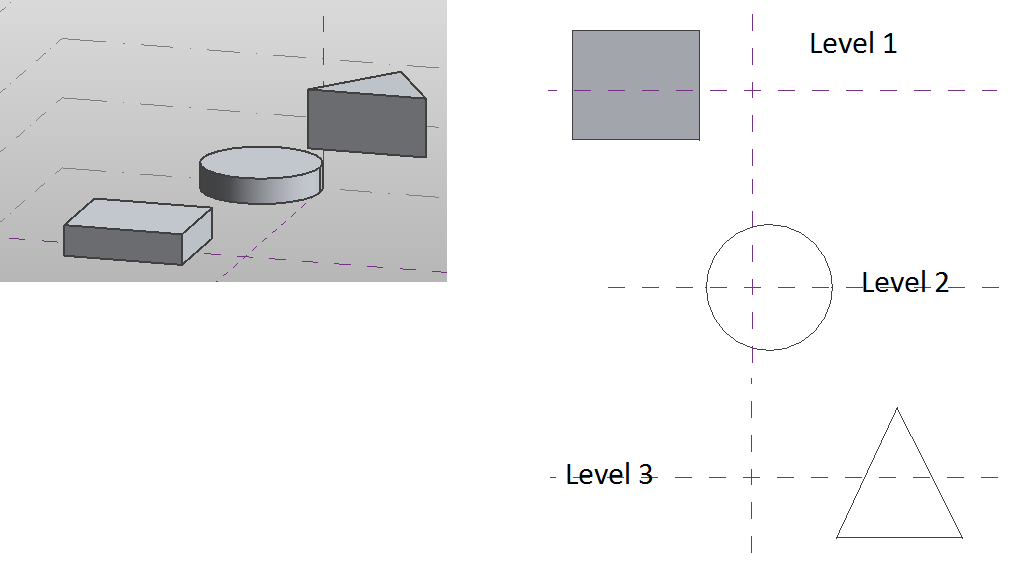

See attached Image



Edited on: Fri, Jan 13, 2012 at 4:03:31 PM



Edited on: Fri, Jan 13, 2012 at 4:04:33 PM
