Forums >> Revit Building >> Technical Support >> L-shaped curtain wall
|
|
active
Joined: Tue, Jan 10, 2012
13 Posts No Rating |

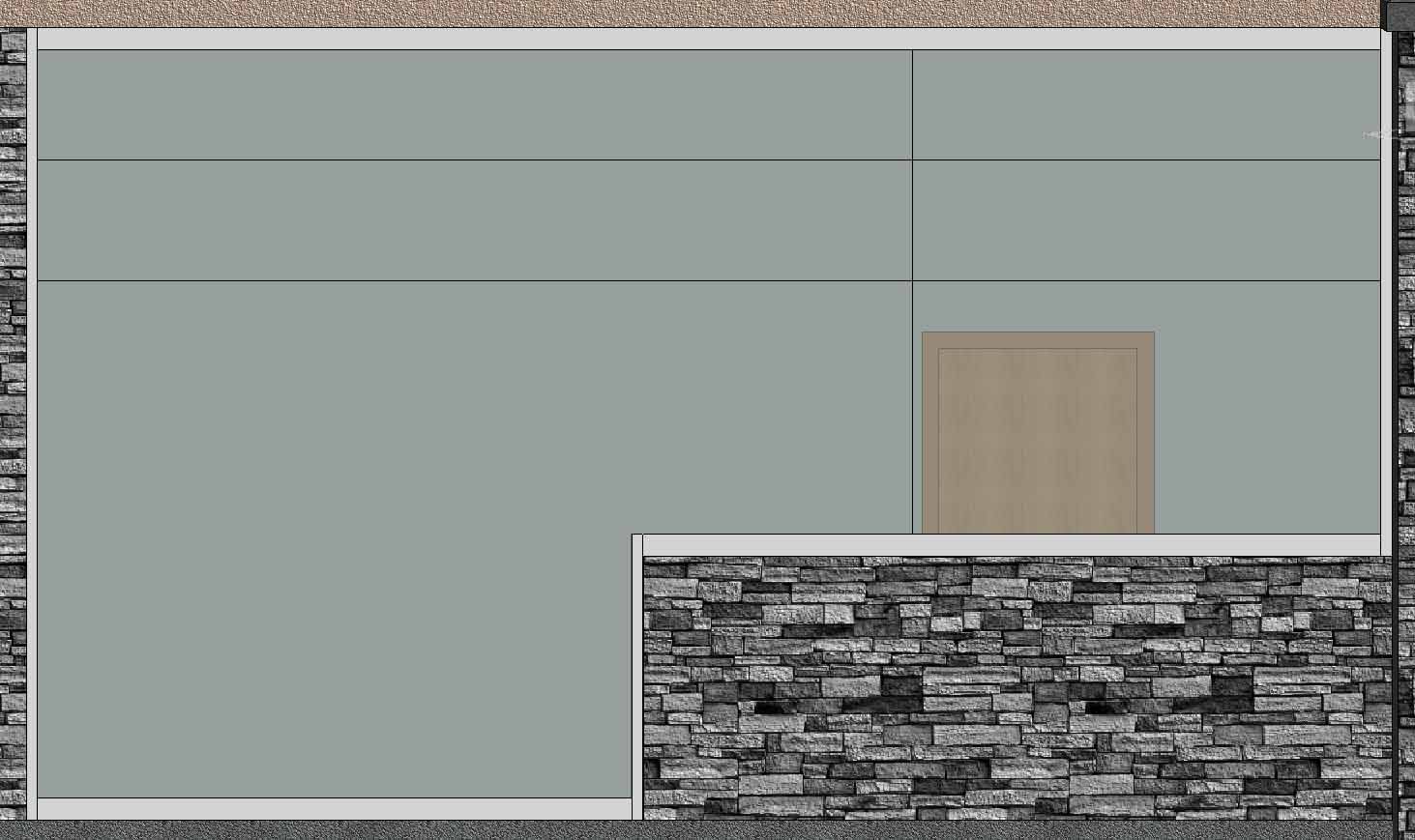

See attached image.
I am trying to make an L-shaped curtain wall where a portion of the bottom frame is on the floor slab and a portion is on a 4' high watertable. I tried making the full rectangular curtain wall and deleting the bottom right mullions and panels, but the wall cut remains intact and there is a gaping hole in my building. I also built the wall by face to the shape I wanted, but the mullions I need at the watertable height and vertically at the corner of the watertable keep bringing error messages. It will not let me place a segment of a grid line at those crucial points to continue my mullions. Is there another way to do this?
Thanks for the help.
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
|
Just edit the (curtain) wall sketch like you do a regular wall in elevation.
|
This user is offline |
|
|
active
Joined: Tue, Jan 10, 2012
13 Posts No Rating |
I could get the shape to work in the wall. It's the mullions that would not cooperate.

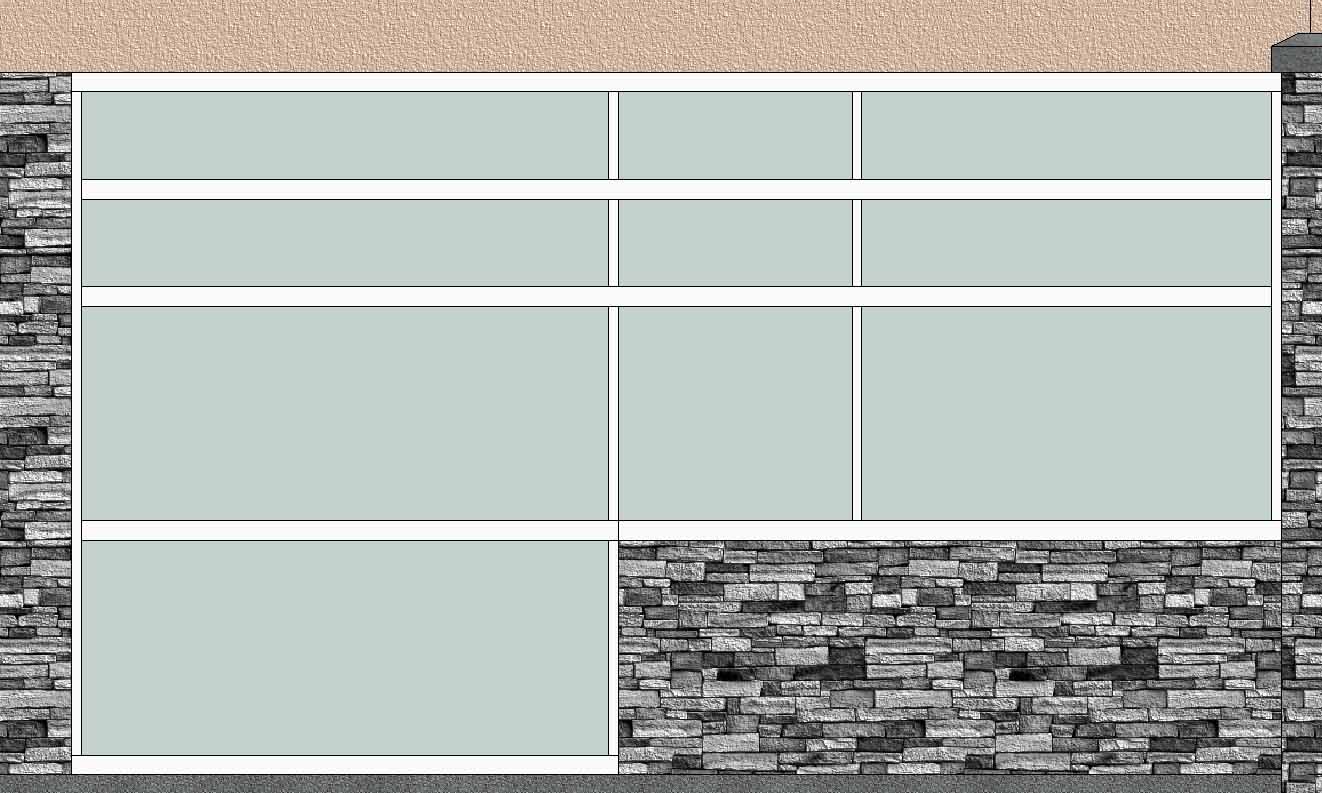

Solved: I was able to create mullions that offset to one side of the grid line so they line up with the appropriate frame.
Thanks for the help. Still fairly new at this.
|
