Forums >> Revit Building >> Technical Support >> Aligning Grout Lines in Render Materials

Search this ThreadSearch this Thread | Page 1 of 1 |

Fri, Dec 16, 2011 at 4:20:40 AM | Aligning Grout Lines in Render Materials

#1

emnight87


active

Joined: Mon, Nov 23, 2009
1 Posts
No Rating

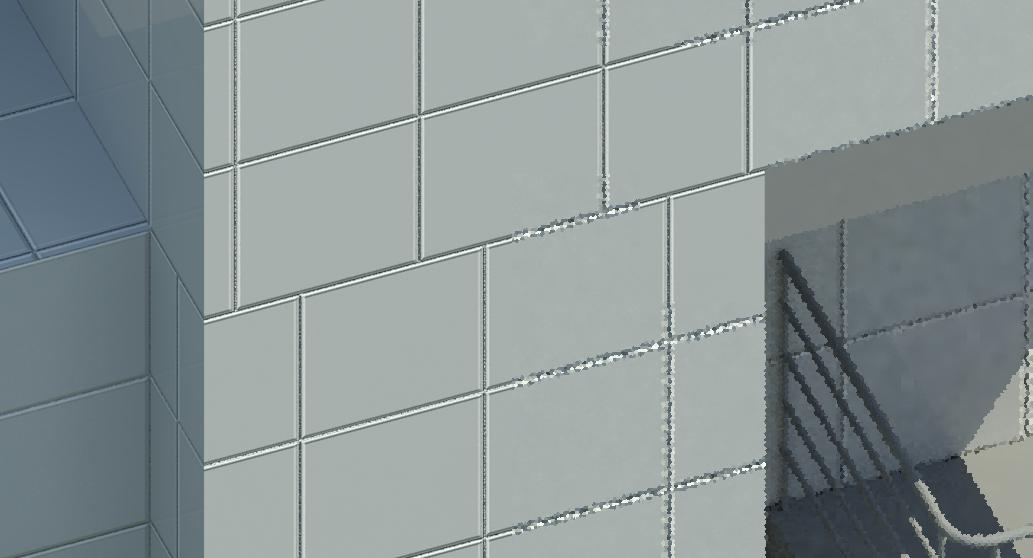

I am having issues aligning tiles in a project.  I created a wall with an in-place model on top of it.  The exterior of both elements is the same tile.  I cannot get the grout lines to align.  Does anyone have any tips for how to make this work? (Attached is a half-rendered image of this)



Attached Images


This user is offline



Fri, Dec 16, 2011 at 10:42:16 AM | Aligning Grout Lines in Render Materials

#2

chimngy


active
chimngy Avatar

Joined: Tue, Oct 9, 2007
6 Posts
No Rating


just align the upper and lower wall to the same locationuse spit tool to it in plan view


-----------------------------------

8Years with Revit in the caveI come out now Nice to meet you

This user is offline



Fri, Dec 16, 2011 at 12:47:21 PM | Aligning Grout Lines in Render Materials

#3

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 374 Votes


You should have a model hatch assigned to this material.  In elevation, just use your align tool to aline one vertical line with the one below/above.



You can also move a pattern by tab selecting a line.  I often add a dimesion, then select the line so I can adjust the dimension to what I want.  This is useful for getting horizontal joints at the proper elevation.
