Tue, Nov 22, 2011 at 6:07:34 AM | Dimension Question

#1

StaticDOS


active

Joined: Thu, Nov 3, 2011
18 Posts
No Rating


Hi guys, another simple question apologies, IM tring to dimension 2 points on the same wall but aligned dimension wont work as it only lets me dimsion the face of walls and not points in walls and since the wall is not at a right angle to the adjoining wall the dimension wont be correct, ive included a PDF of the 2 points I need to dimension. Thanks







Attached Files

-----------------------------------

Dell Precision T1500 Intel(R) Core(TM) i5 CPU 660 @ 3.33GHz Installed Memory 4.00 GB

This user is offline



Tue, Nov 22, 2011 at 6:23:05 AM | Dimension Question

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 388 Votes


Simply start your dimension and tab until you get the point at those intersections.


This user is offline



Tue, Nov 22, 2011 at 6:47:42 AM | Dimension Question

#3

StaticDOS


active

Joined: Thu, Nov 3, 2011
18 Posts
No Rating


I can pick up the first point of the wall but not the second point


-----------------------------------

Dell Precision T1500 Intel(R) Core(TM) i5 CPU 660 @ 3.33GHz Installed Memory 4.00 GB

This user is offline



Tue, Nov 22, 2011 at 9:35:31 AM | Dimension Question

#4

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 388 Votes


You have to tab select at both points/


This user is offline



Tue, Nov 22, 2011 at 10:39:35 AM | Dimension Question

#5

StaticDOS


active

Joined: Thu, Nov 3, 2011
18 Posts
No Rating

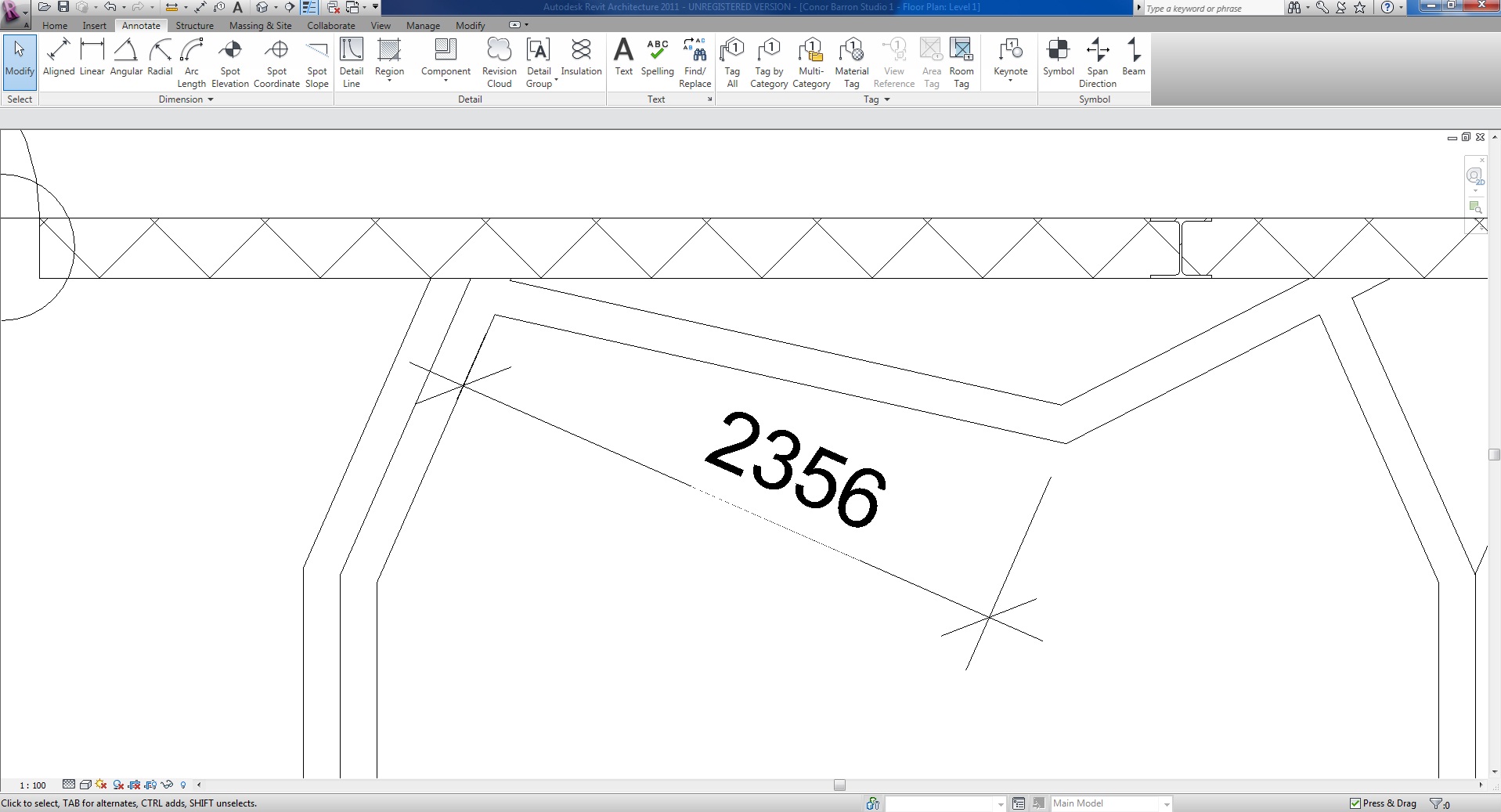

I did that but the dimension is wrong because the adjoining wall is not perpendicular to the wall I want to dimension so I end up with a dimension like the one in the image, I had to hide the adjoining wall then dimension the wall then unhide the adjoining wall.



Attached Images


-----------------------------------

Dell Precision T1500 Intel(R) Core(TM) i5 CPU 660 @ 3.33GHz Installed Memory 4.00 GB

This user is offline



Tue, Nov 22, 2011 at 10:45:45 AM | Dimension Question

#6

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 388 Votes


You have not used the process I described.   You have to tab select the point at each end.  You started with a face - not a point.  Try it again.



Edited on: Tue, Nov 22, 2011 at 10:46:10 AM

Attached Images


This user is offline



Tue, Nov 22, 2011 at 11:00:25 AM | Dimension Question

#7

StaticDOS


active

Joined: Thu, Nov 3, 2011
18 Posts
No Rating


Hi thanks I got it eventually after hitting the tab button about 50 times and putting on a pair of binoculars so I could see the dot


-----------------------------------

Dell Precision T1500 Intel(R) Core(TM) i5 CPU 660 @ 3.33GHz Installed Memory 4.00 GB

This user is offline



Tue, Nov 22, 2011 at 11:07:37 AM | Dimension Question

#8

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 388 Votes


LOL - You missed the dot 48 times.... black background I bet....



Edited on: Tue, Nov 22, 2011 at 11:08:50 AM

This user is offline



Tue, Nov 22, 2011 at 11:13:33 AM | Dimension Question

#9

StaticDOS


active

Joined: Thu, Nov 3, 2011
18 Posts
No Rating


LOL no I only use a black background when usinf AutoCAD, the joys of learning Revit.


-----------------------------------

Dell Precision T1500 Intel(R) Core(TM) i5 CPU 660 @ 3.33GHz Installed Memory 4.00 GB

This user is offline



Wed, Nov 23, 2011 at 11:16:54 AM | Dimension Question

#10

mbsteve


active
mbsteve Avatar

Joined: Fri, Sep 22, 2006
759 Posts
4 Stars: 13 Votes


Not a useful method for dimensioning that kind of thing in any case, how is someone to build with that kind of dimension. You should use a string with offsets.


This user is offline



Wed, Nov 23, 2011 at 11:41:34 AM | Dimension Question

#11

Lucius4


active

Joined: Thu, May 19, 2011
12 Posts
No Rating

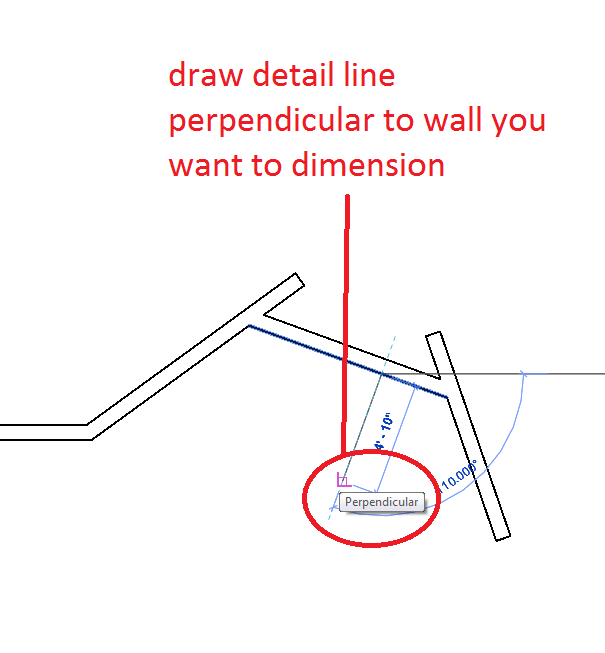

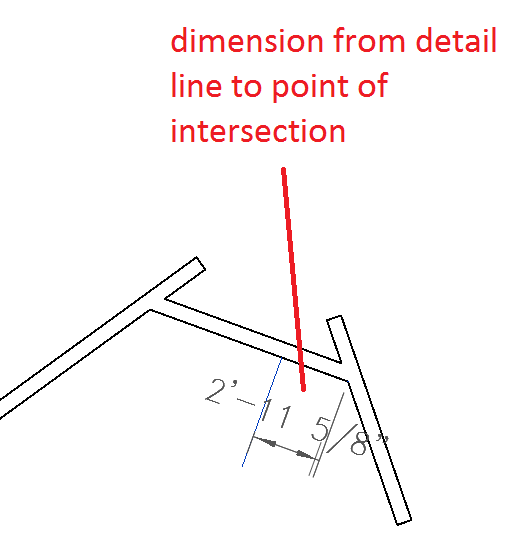

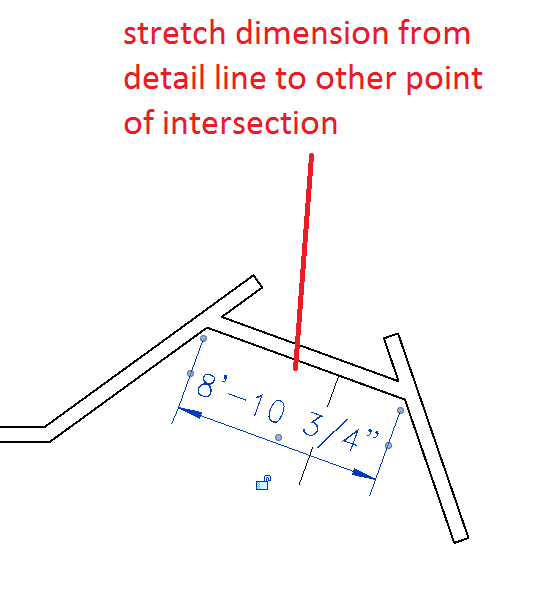

here is what I would have done



Attached Images


This user is offline
