Hi,

I had a question about families. Some families I download from this site can be altered in plan view. They have arrow grip boxes that let me adjust the size without having to go into edit family. How can I get those grips for families that I make?



I also had a questiona about conceptual masses. I have only been able to add edges on vertical surfaces, when I try to put an edge on a horozontal surface, revit won't let me. Any ideas on why this is?



Thanks in advance.


This user is offline



Tue, Nov 22, 2011 at 9:37:39 AM | Parametric grips and conceptual mass questions

#2

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes


1. - When you create a family use "Ref. planes" and attach/align the geometry to those ref.planes and if those parameters are "INSTANCE" param. you'll have those arrows grip.



2. - "when I try to put an edge on a horozontal surface, revit won't let me" - NO, you need to add a "Profile" not an edge (if i'm not misunderstood the question...)


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Tue, Nov 22, 2011 at 11:04:29 PM | Parametric grips and conceptual mass questions

#3

gulliver49


active

Joined: Sun, Oct 30, 2011
17 Posts
No Rating


Thank you Typhoon. I managed to get the grips now.



As for the conceptual mass issue, I've managed to get profiles on just fine, but edges I can't. I'll upload some pictures tomorrow to show what I'm talking about. I'll try to upload the file too if I can.



I also can't put edges on objects that are curved. Once I post pictures I'm sure you'll see what I'm doing wrong.


This user is offline



Wed, Nov 23, 2011 at 10:09:33 AM | Parametric grips and conceptual mass questions

#4

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes


"I'll try to upload the file too if I can. I also can't put edges on objects that are curved. Once I post pictures I'm sure you'll see what I'm doing wrong." - Go ahead, show me the "money" and will see if we can help you. Smile






-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Wed, Nov 23, 2011 at 6:40:58 PM | Parametric grips and conceptual mass questions

#5

gulliver49


active

Joined: Sun, Oct 30, 2011
17 Posts
No Rating

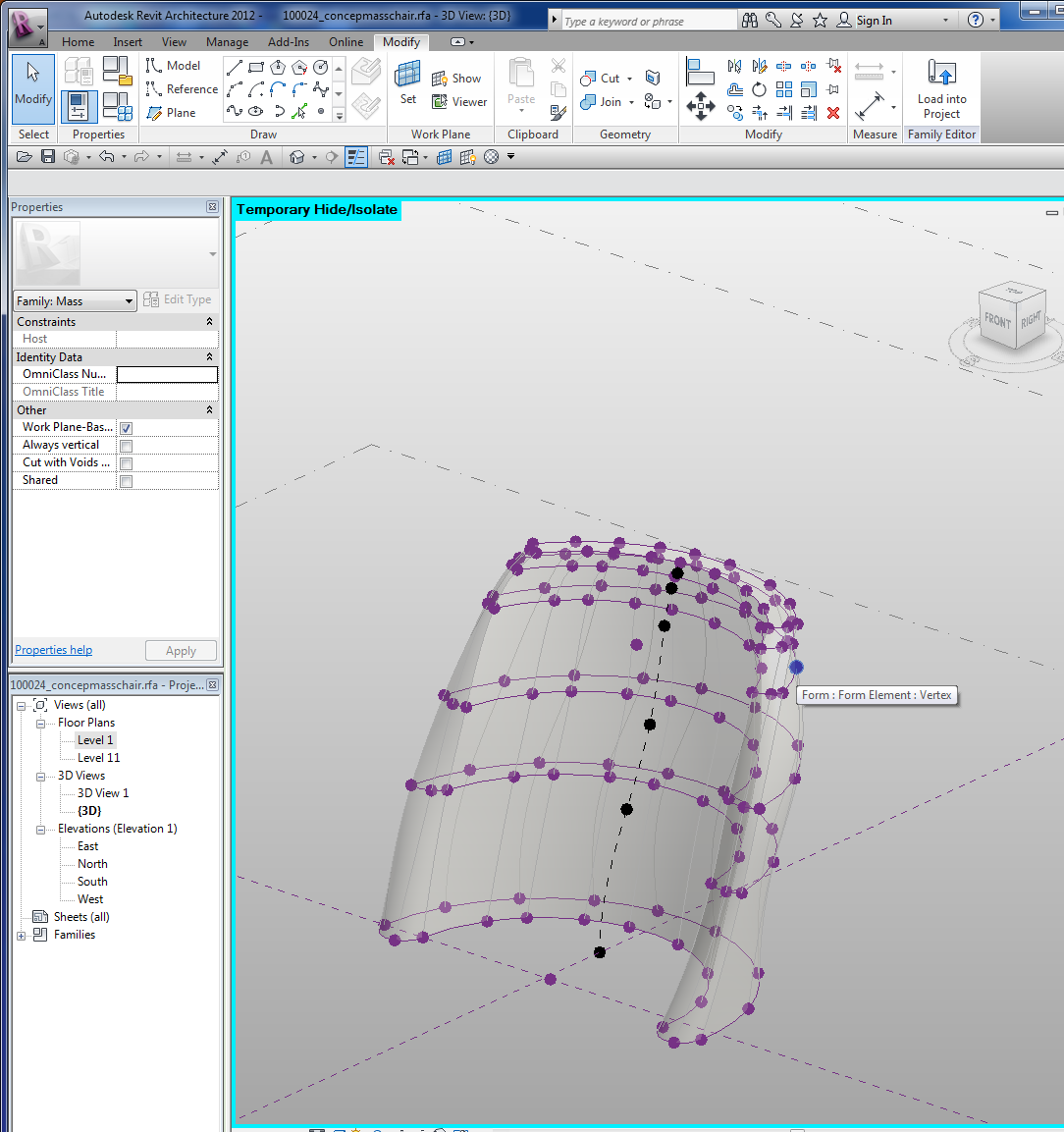

Here's the file and some pics of what I'm having trouble with.

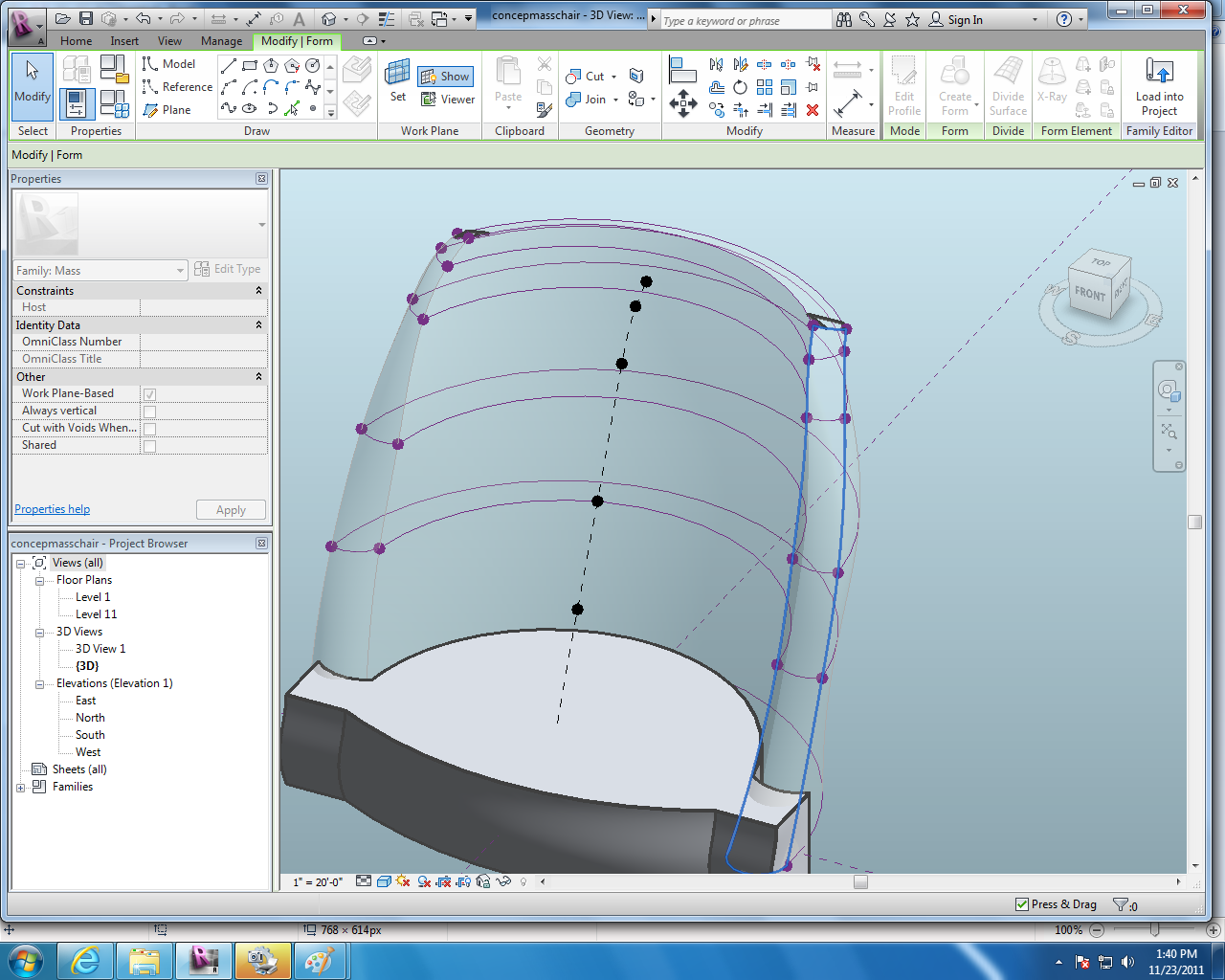

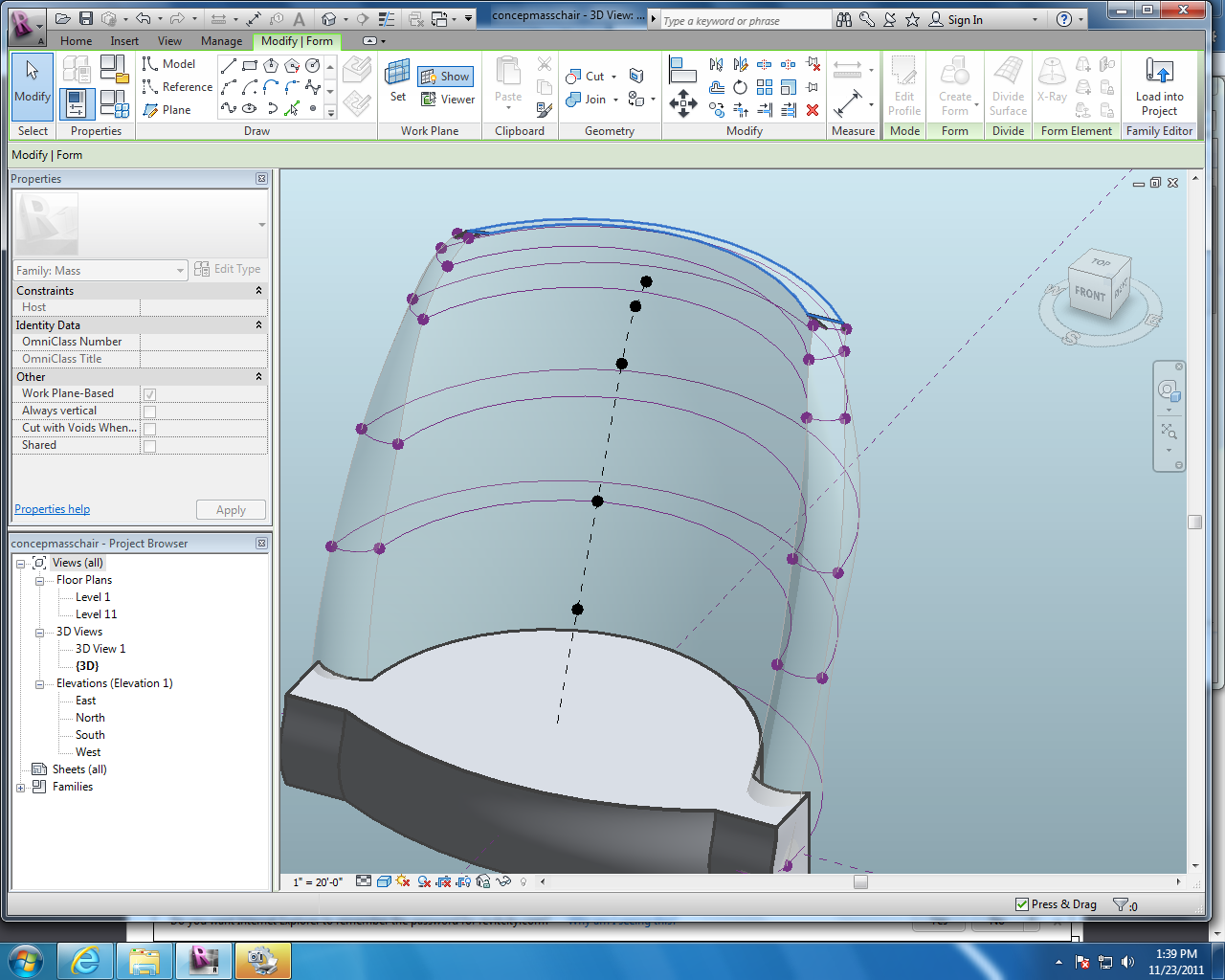

I can add an edge to the sides of the seat, but not to the top of the seat. And I can't add edges to the whole backrest. Profiles are okay though.



Attached Images


Attached Files

This user is offline



Wed, Nov 23, 2011 at 7:13:01 PM | Parametric grips and conceptual mass questions

#6

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes


Select the object, click on "Dissolve", select again those lines and click on "create form" now you can add the edges.

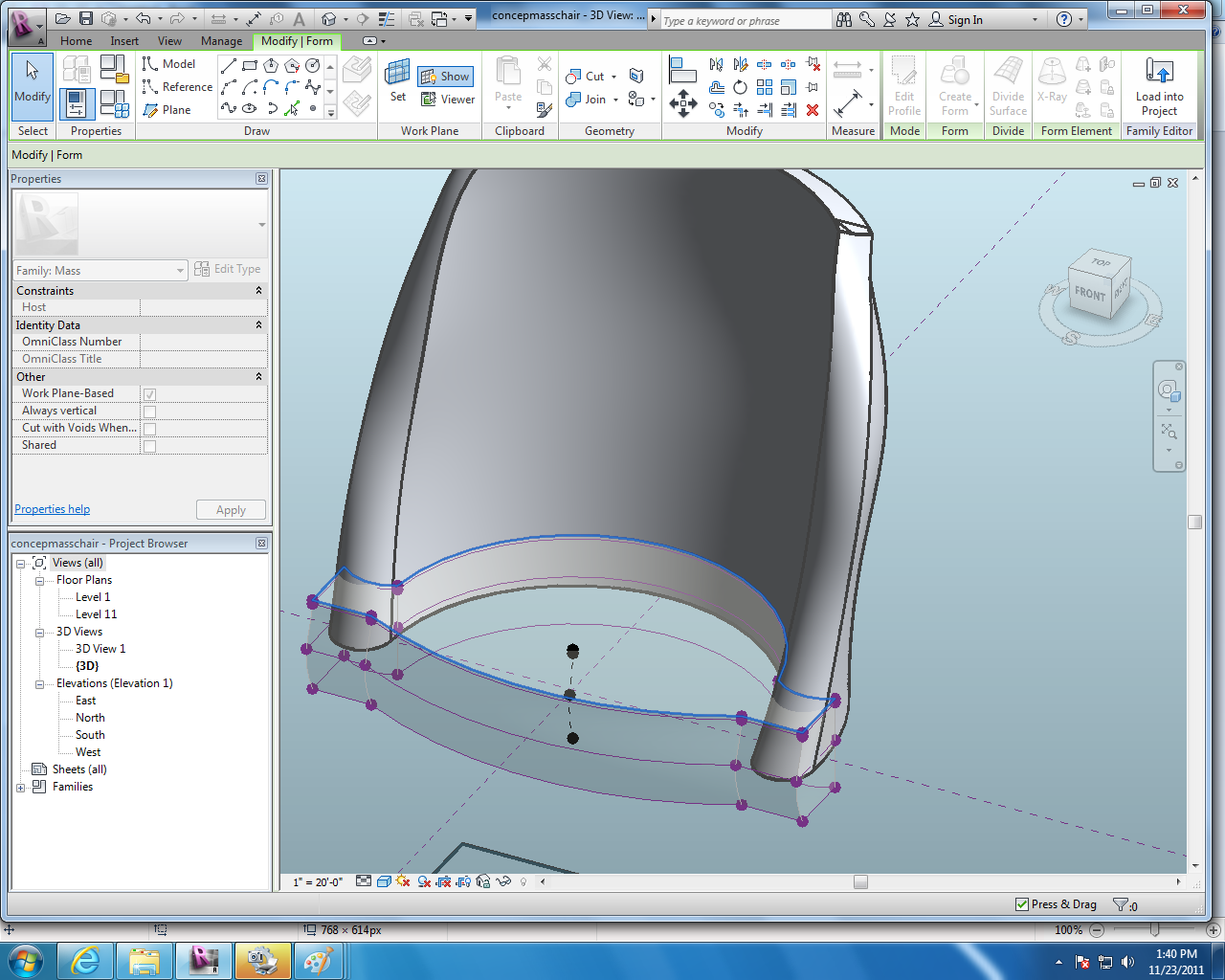

Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline
