Forums >> Revit Building >> Technical Support >> Revit 2012 Roof by extrusion

Search this ThreadSearch this Thread | Page 1 of 1 |

Wed, Nov 16, 2011 at 10:17:16 PM | Revit 2012 Roof by extrusion

#1

techman7


active

Joined: Thu, Apr 14, 2011
2 Posts
No Rating

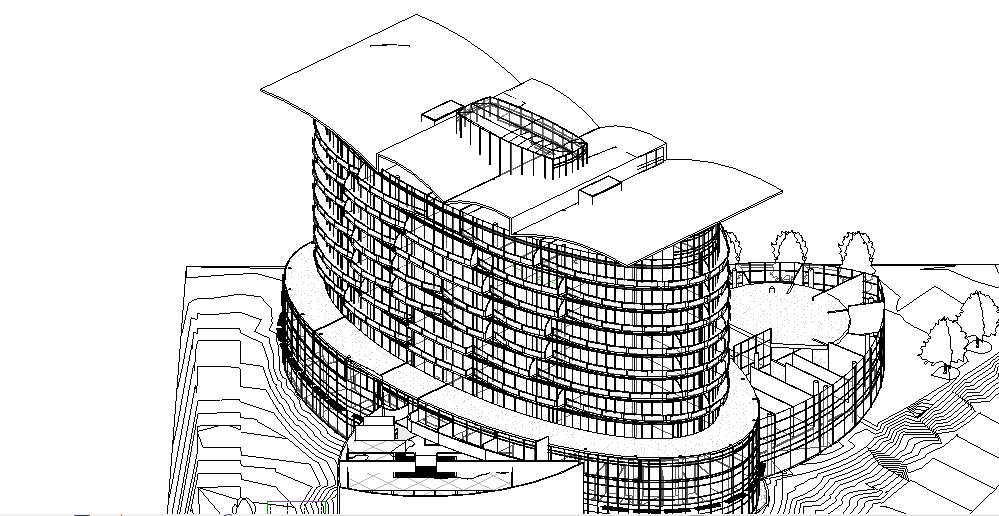

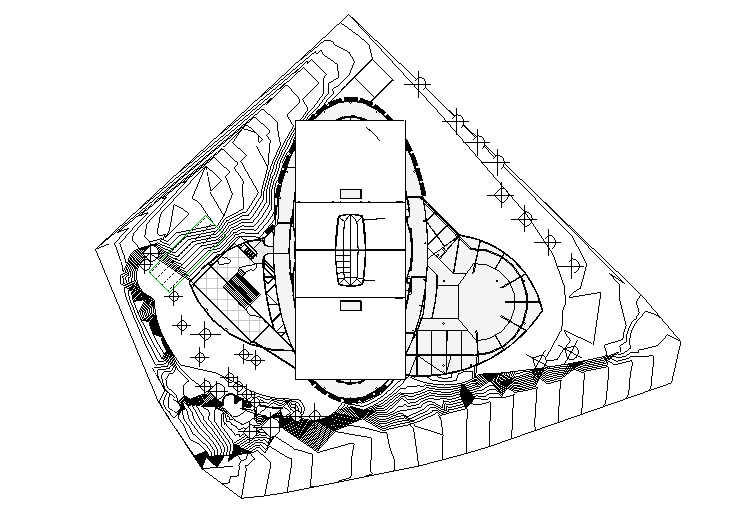

Does anyone know how to edit a curved roof by extrusion? My building shape is elliptical and the roof generated is rectangular after doing the roof extrusion. Attached is what it is doing right now. I'm trying to cut out the corners of the rectangular roof to go with the curve of the tower below it. Would it be any easier by massing? Thanks!



Attached Images


This user is offline



Thu, Nov 17, 2011 at 11:24:57 AM | Revit 2012 Roof by extrusion

#2

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 196 Votes


"I'm trying to cut out the corners of the rectangular roof to go with the curve of the tower below it." - At "HOME" tab go to "Opening>Vertical Opening" and cut those corners.

Or with "Model In-Place" in Roof category you can create a VOID to cut what you want.





Edited on: Thu, Nov 17, 2011 at 1:15:02 PM

Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Fri, Nov 18, 2011 at 8:12:44 PM | Revit 2012 Roof by extrusion

#3

techman7


active

Joined: Thu, Apr 14, 2011
2 Posts
No Rating

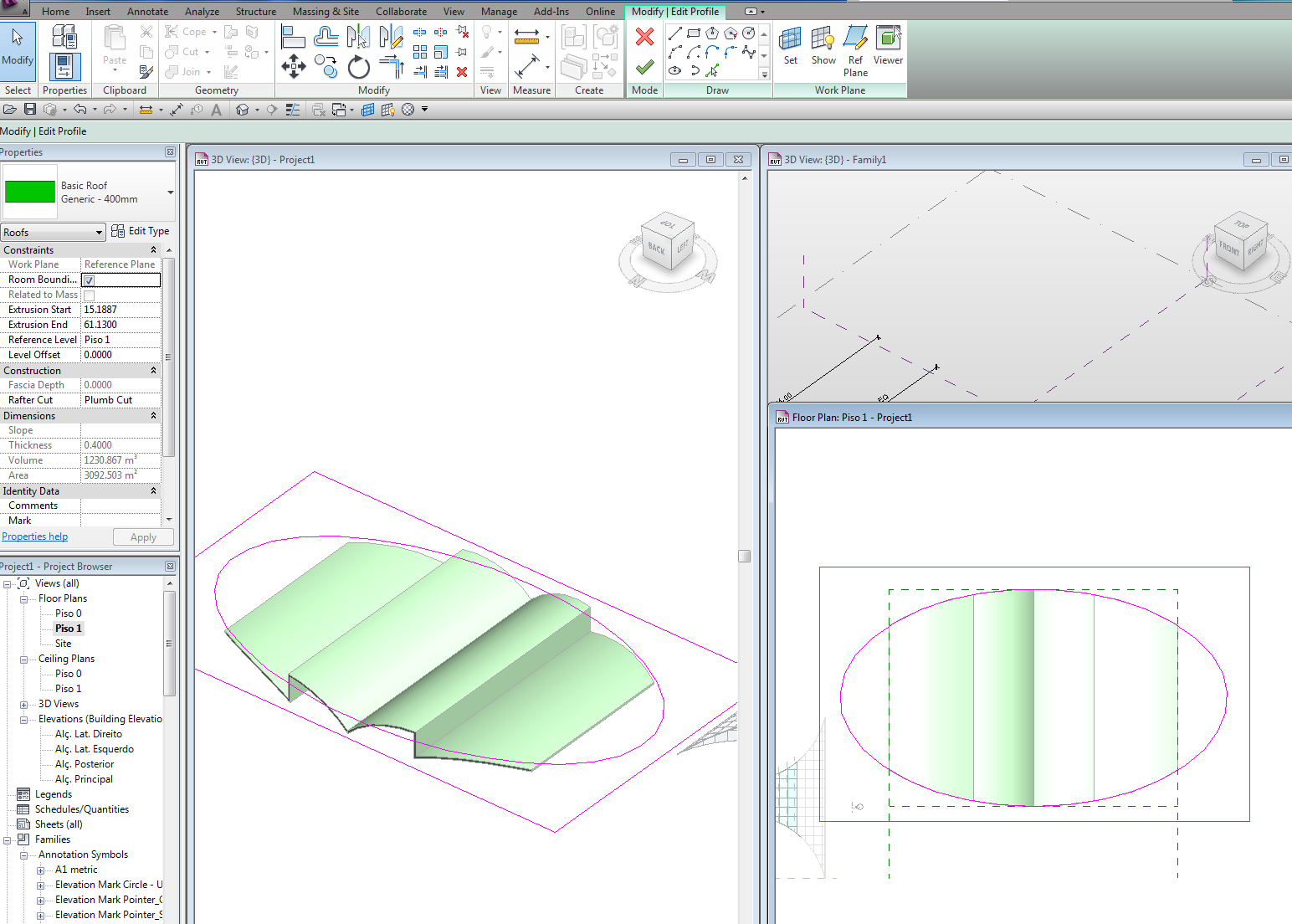

Typhoon, it is not allowing me to cut the roof that way. I'm doing a roof mass and trying to cut it with the void form, but it is not allowing me to cut or remove those edges.


This user is offline



Sat, Nov 19, 2011 at 10:49:20 AM | Revit 2012 Roof by extrusion

#4

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 196 Votes

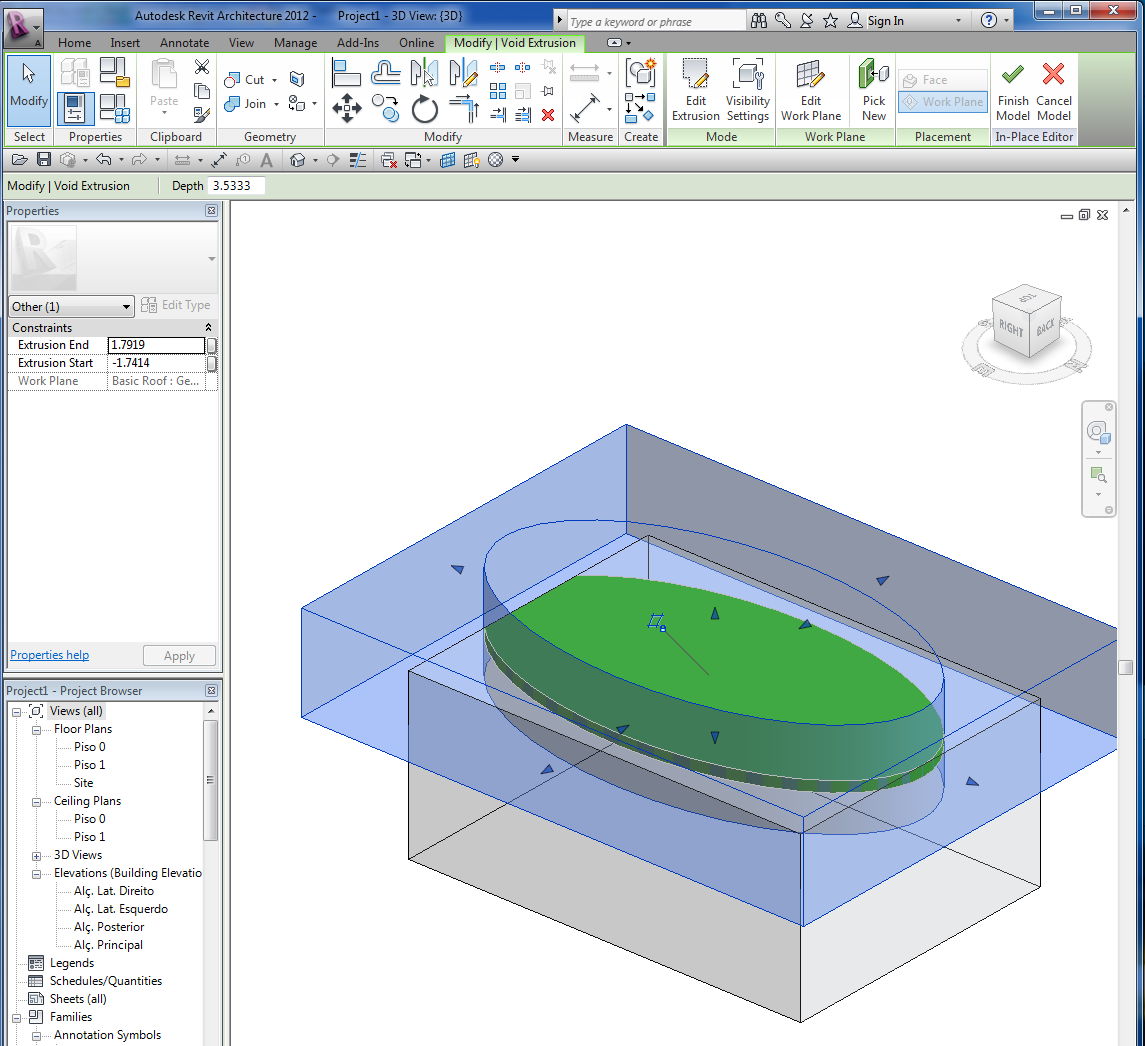

You said you created that roof by "EXTRUSION" not by "roof by face" but with an In-place void in ROOF CATEGORY you can cut that too, you are doing something wrong... after you create the void use the "CUT GEOMETRY" tool, select the void then the roof.





Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline
