Forums >> Revit Building >> Tips & Tricks >> Issue with Dividing Surface for conceptual mass

Search this ThreadSearch this Thread | Page 1 of 1 |

Wed, Oct 26, 2011 at 4:05:53 PM | Issue with Dividing Surface for conceptual mass

#1

bfoley


active

Joined: Thu, Sep 22, 2011
4 Posts
No Rating

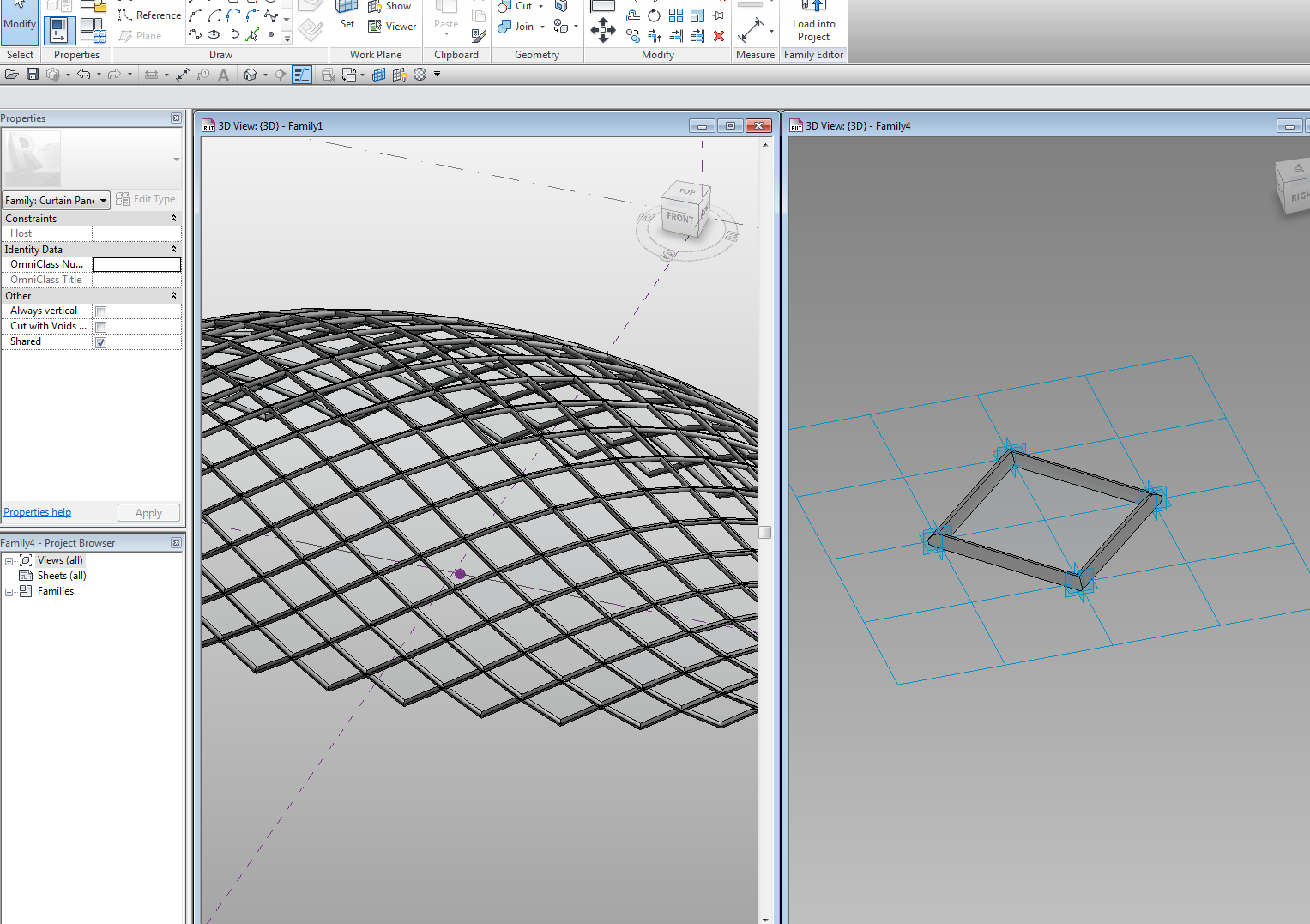

I am trying to create a glass atrium. (please see the attached png)

I created a form from two elipses and divided the surface to create a lattice-type structure.  I then added a 4 point curtain panel (that I made with adaptive components) to create a mullion.

The issue that I am running into is that revit seems to automatically split the surface in half, creating a seam that does not clean up well.  Is there a way to fix this area or avoid this seam?

Any help is much appreciated!



Edited on: Wed, Oct 26, 2011 at 11:07:12 AM

This user is offline



Wed, Oct 26, 2011 at 5:41:03 PM | Issue with Dividing Surface for conceptual mass

#2

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 198 Votes


Where is the attached png?






-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Wed, Oct 26, 2011 at 6:22:52 PM | Issue with Dividing Surface for conceptual mass

#3

bfoley


active

Joined: Thu, Sep 22, 2011
4 Posts
No Rating


I attached it with the file attachment uploader, but it seems like it isnt attaching to the post when I submit the thread.

I have tried to attach it to this post







Edited on: Wed, Oct 26, 2011 at 1:23:57 PM

This user is offline



Wed, Oct 26, 2011 at 6:28:25 PM | Issue with Dividing Surface for conceptual mass

#4

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 198 Votes


I don't know if it's your "Browser" because I don't have problems with that, don't use "Chrome" or "Safari".

Use JING to capture your image or SCEENHUNTER

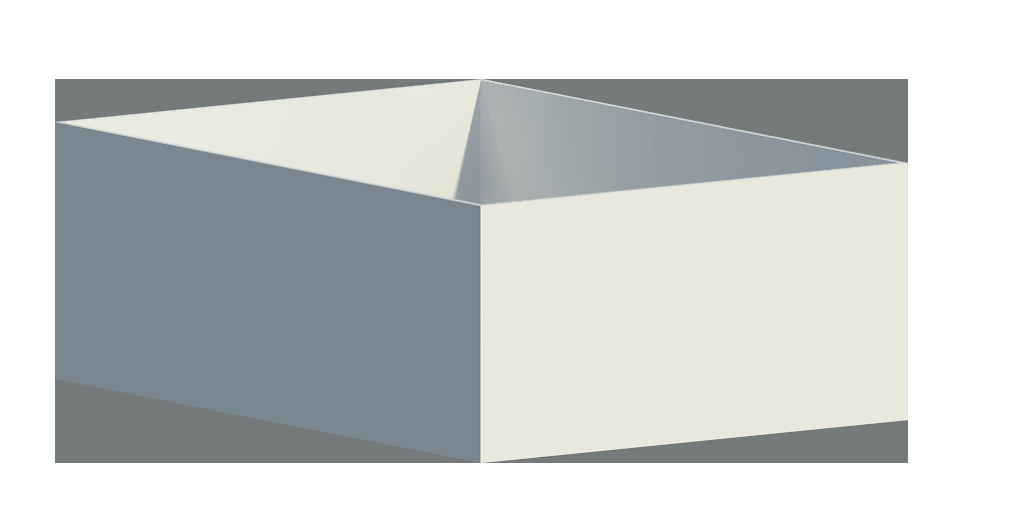

Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Wed, Oct 26, 2011 at 6:33:14 PM | Issue with Dividing Surface for conceptual mass

#5

bfoley


active

Joined: Thu, Sep 22, 2011
4 Posts
No Rating


Trying again in internet explorer.

Edited on: Wed, Oct 26, 2011 at 1:35:41 PM

Edited on: Wed, Oct 26, 2011 at 1:38:32 PM



Edited on: Wed, Oct 26, 2011 at 1:39:06 PM

This user is offline



Wed, Oct 26, 2011 at 6:43:50 PM | bfoley

#6

bfoley


active

Joined: Thu, Sep 22, 2011
4 Posts
No Rating



Not sure why it wont upload my file. It is the appropriate size and I am in internet explorer browser.
What I am making is similar to what you are showing in your uploaded image.  I wish I could upload my image, you might know what to do.
Thanks anyway!

Quoting bfoley from 2011-10-26 13:33:14



Trying again in internet explorer.

Edited on: Wed, Oct 26, 2011 at 1:35:41 PM

Edited on: Wed, Oct 26, 2011 at 1:38:32 PM

Edited on: Wed, Oct 26, 2011 at 1:39:06 PM"




This user is offline



Wed, Oct 26, 2011 at 6:53:16 PM | Issue with Dividing Surface for conceptual mass

#7

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 198 Votes


I will talk with ADMIN about this issue again... I'm using Mozilla firefox 3.6.23




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Wed, Oct 26, 2011 at 7:01:47 PM | Issue with Dividing Surface for conceptual mass

#8

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 358 Votes


IE test



There is something going on with some of these people.  IE works just fine.



Edited on: Wed, Oct 26, 2011 at 2:02:46 PM

Attached Images


This user is offline



Fri, Nov 11, 2011 at 4:25:53 PM | Issue with Dividing Surface for conceptual mass

#9

renderforfun


active

Joined: Fri, Sep 24, 2010
39 Posts
4.5 Stars: 6 Votes


@typhoon - If its not to much trouble I am really interested to see a tutorial/video on how you made that object you posted above. Could you do that?


This user is offline



Fri, Nov 11, 2011 at 6:45:47 PM | Issue with Dividing Surface for conceptual mass

#10

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 198 Votes


Sure, here you have:

1º Video: http://screencast.com/t/Mg1swcWBH

2º Video: http://screencast.com/t/vzONdnvNJHMF

BTW, watch those videos from Zach Kron, you will learn a lot from him: http://www.youtube.com/user/zachkron#p/u




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline
