Forums >> Revit Building >> Technical Support >> "Two Cut - Square" Rafter Cut won't appear with Roof by Extrusion.

Search this ThreadSearch this Thread | Page 1 of 1 |

Mon, Oct 10, 2011 at 8:20:16 PM | "Two Cut - Square" Rafter Cut won't appear with Roof by Extrusion.

#1

rastamanCP


active
rastamanCP Avatar

Joined: Wed, Feb 11, 2009
50 Posts
4 Stars: 4 Votes


Hi All,

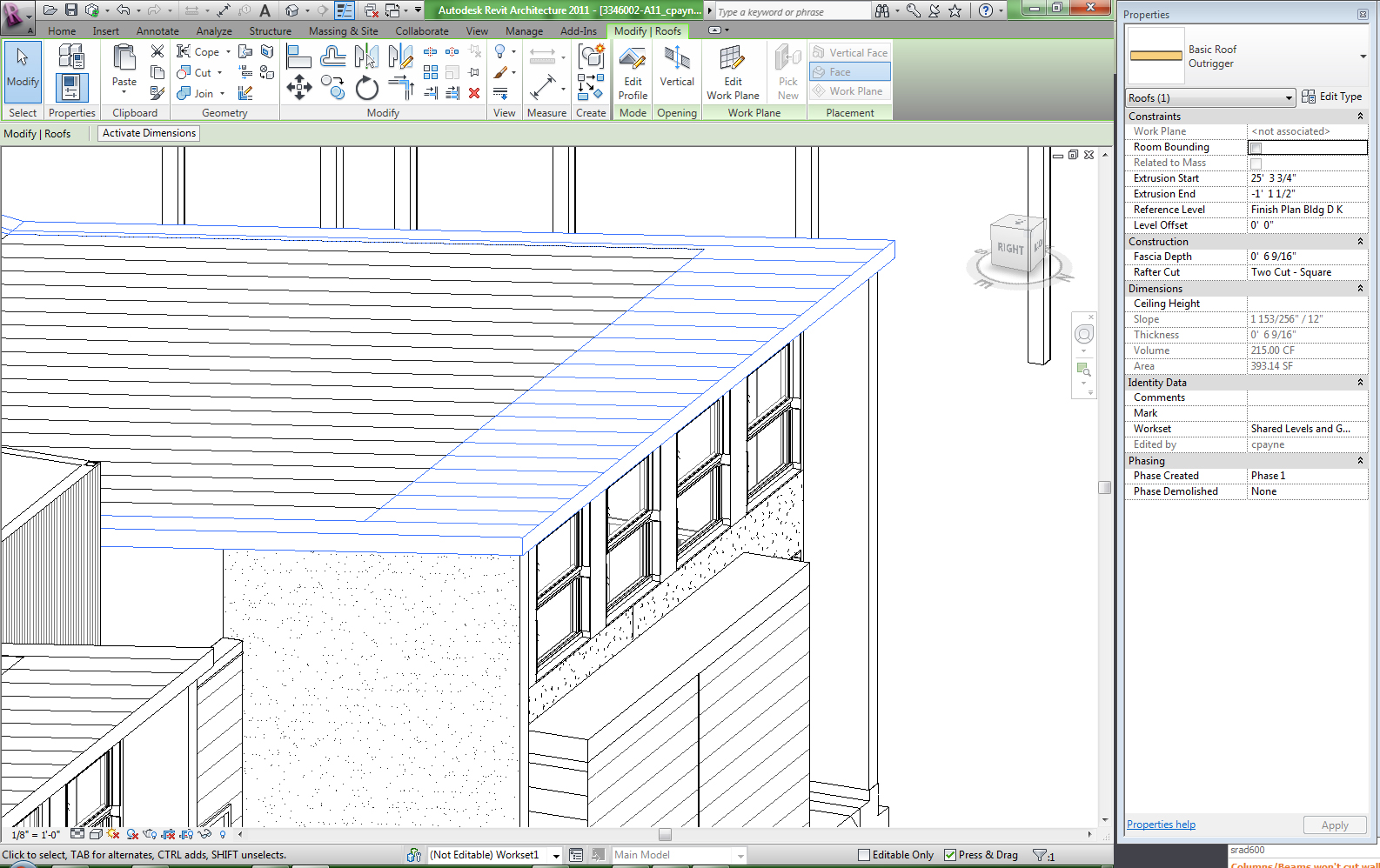

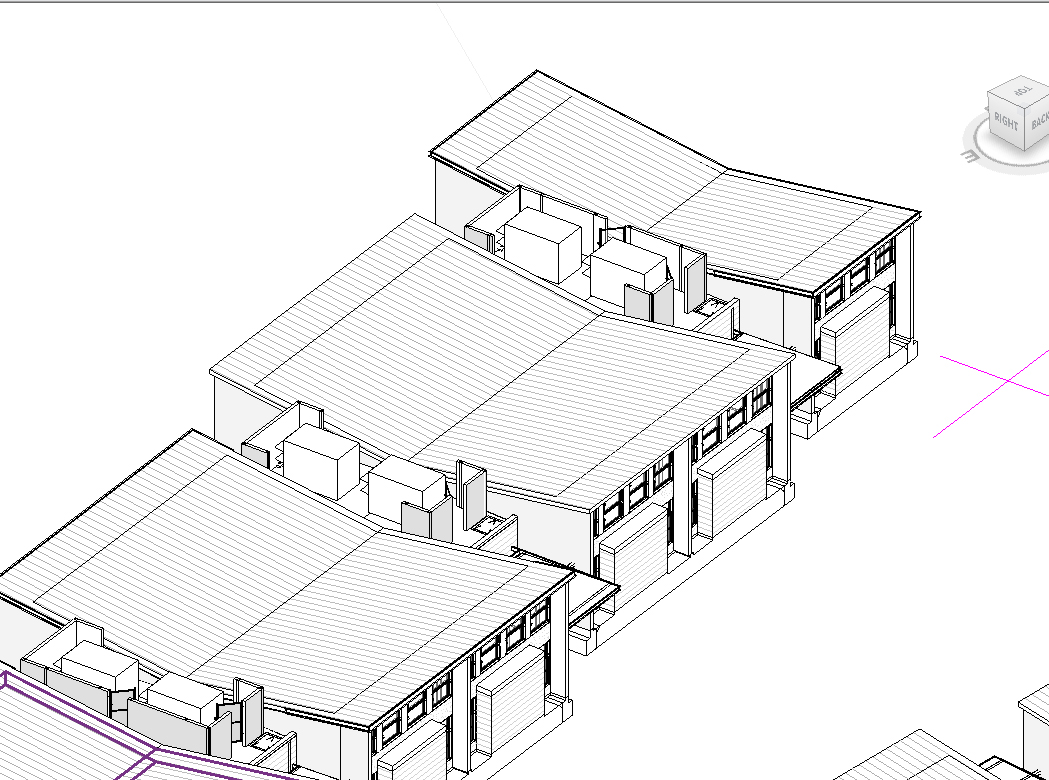

We're working on a project with a butterfly roof (see image 1) and are finding it impossible to create a roof by extrusion with square cut rafter ends. Normally I would use a roof by footprint, but since our roof pitch varies depending on the width of the building, the roof by extrusion would save us an awful lot of slope calculation and other inaccuracies. I've tried to fix this by setting the facia depth to match the roof thickness (this works perfectly in a roof by footprint) but it remains plumb cut (see image 2).

Any tips would be greatly appreciated!

Working in Revit Architecture 2011



Edited on: Mon, Oct 10, 2011 at 5:37:05 PM

Attached Images


This user is offline



Mon, Oct 10, 2011 at 8:21:59 PM | "Two Cut - Square" Rafter Cut won't appear with Roof by Extrusion.

#2

rastamanCP


active
rastamanCP Avatar

Joined: Wed, Feb 11, 2009
50 Posts
4 Stars: 4 Votes


*Working in Revit Architecture 2011


This user is offline



Fri, Jun 2, 2017 at 2:43:21 PM | "Two Cut - Square" Rafter Cut won't appear with Roof by Extrusion.

#3

lorne17


active
lorne17 Avatar

Joined: Wed, Aug 29, 2007
417 Posts
3.5 Stars: 7 Votes


I know this is super old, but any update on how to do this?  I too am looking at how to get this to be a square cut?  We have a curved barrel roof and it's showing a vertical fascia (plumb cut), when I want it to be square to the curve.



working in Revit 2017.



Thanks,

Lorne


-----------------------------------

AutoDesk Revit Certified Professional

Denver, CO

Revit Architecture

This user is offline



Fri, Jun 2, 2017 at 3:10:30 PM | "Two Cut - Square" Rafter Cut won't appear with Roof by Extrusion.

#4

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 369 Votes


I don't think thats going to happen automatically. You could include an in-place void.




This user is offline



Fri, Jun 2, 2017 at 4:03:31 PM | "Two Cut - Square" Rafter Cut won't appear with Roof by Extrusion.

#5

lorne17


active
lorne17 Avatar

Joined: Wed, Aug 29, 2007
417 Posts
3.5 Stars: 7 Votes


That worked!  Thank you!


-----------------------------------

AutoDesk Revit Certified Professional

Denver, CO

Revit Architecture

This user is offline



Sat, Jun 3, 2017 at 2:49:09 AM | lorne17

#6

pijpiwo


active
pijpiwo Avatar

Joined: Fri, Sep 3, 2010
0 Posts
5 Stars: 23 Votes


Quoting lorne17 from 2017-06-02 09:43:21

"

I know this is super old, but any update on how to do this?  I too am looking at how to get this to be a square cut?  We have a curved barrel roof and it's showing a vertical fascia (plumb cut), when I want it to be square to the curve.



working in Revit 2017.



Thanks,

Lorne

"

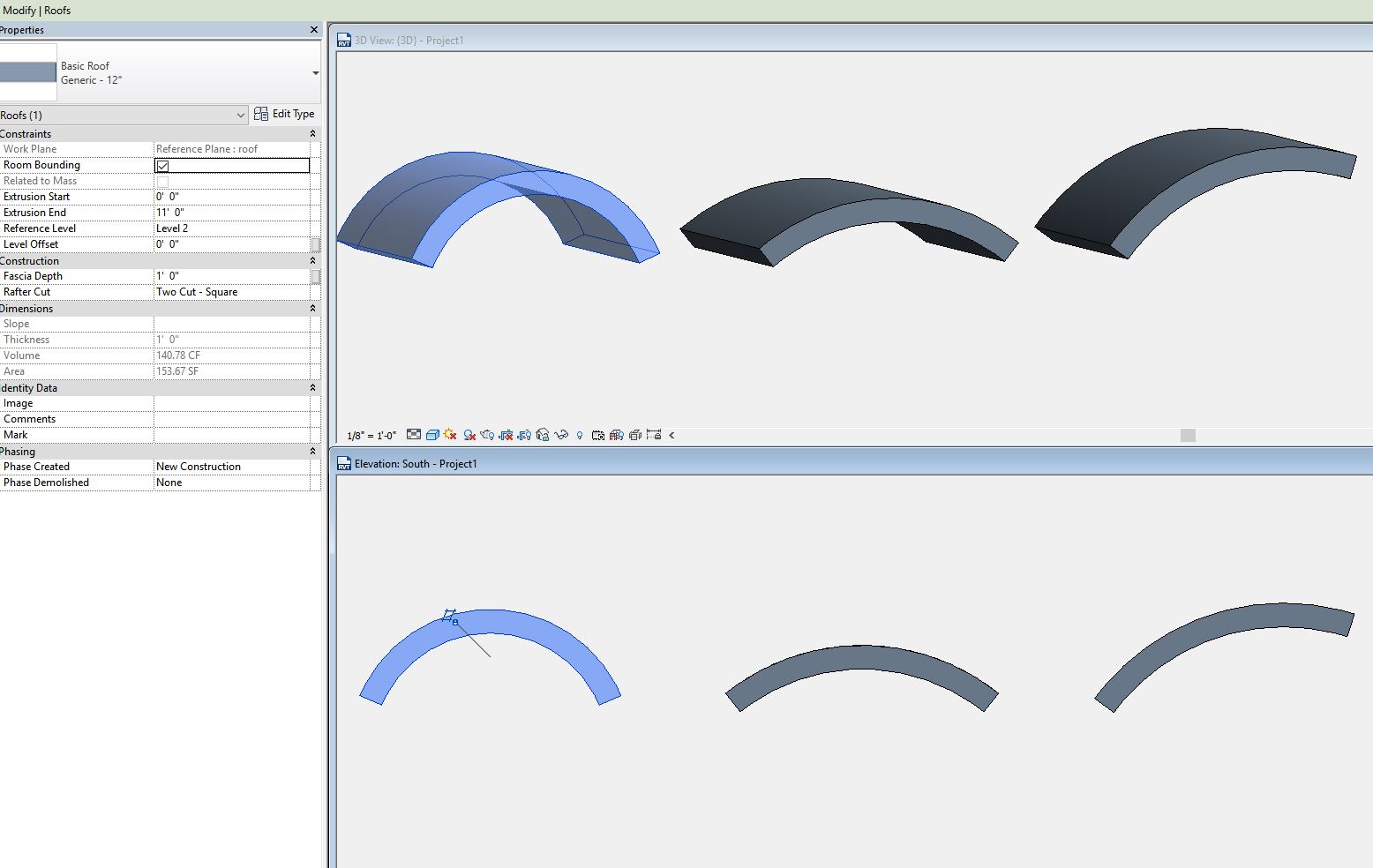

It's working fine here (see pic), unless I totally misunderstood your question.



Attached Images


This user is offline



Mon, Jun 5, 2017 at 3:57:14 PM | pijpiwo

#7

lorne17


active
lorne17 Avatar

Joined: Wed, Aug 29, 2007
417 Posts
3.5 Stars: 7 Votes


Quoting pijpiwo from 2017-06-02 21:49:09

"

It's working fine here (see pic), unless I totally misunderstood your question.

"

That's weird.  Mine won't do that.  But the void worked fine for this project.  I don't want to spend too much time troubleshooting!



Thanks,

Lorne


-----------------------------------

AutoDesk Revit Certified Professional

Denver, CO

Revit Architecture

This user is offline
