Forums >> Revit Building >> Technical Support >> Need help with a PAT file
|
|
|
active
Joined: Tue, Oct 7, 2008
27 Posts
No Rating |
I'm in a bind here fellow Revitizers. I don't have AutoCad on my computer at the moment and need to create a .pat file for use in Revit 2012. I need a simple pattern if someone is willing to help me out and make it for me.
It is alternating bands of 3 1/4" and 11 1/4" (full scale) siding.
Also, for use in the model and elevation shots, do I need both a drafting and model pat file?
Thank you for you help on this!
-----------------------------------
Eric Sahnow
Project Lead/Designer |
This user is offline |
|
 | |
|
|
active
Joined: Wed, Oct 7, 2009
654 Posts
 |
Hatch tool
|
This user is offline |
|
|
|
active
Joined: Tue, Oct 7, 2008
27 Posts
No Rating |
Thanks for the link TK. I've never made a .pat file and would have no idea where to begin. I've seen some of the other posts on here about the file structure but I fear that this is way over my head. Any other help you could give me?
Am I remembering incorectly that there is a way to draw a pat file in Illustrator or Photoshop?
Edited on: Thu, Sep 29, 2011 at 11:28:38 AM
-----------------------------------
Eric Sahnow
Project Lead/Designer |
This user is offline |
|
|
|
active
Joined: Wed, Oct 7, 2009
654 Posts
|
That tool is an add-on for Revit, and it's about as easy as it gets for creating .pat files. You'll draw your hatch pattern in Revit, then it will make a .pat file for you.
|
This user is offline |
|
|
|
active
Joined: Thu, May 28, 2009
829 Posts
|
I second this. You draw the hatch with drafting lines to the exact scale you wish -- within a boundary box -- select all the lines, and tell it to make a hatch. I've used it for realistic wood grains that aren't excessively wavy, LARGE swaths of cobbled rock walls that graduate in size.

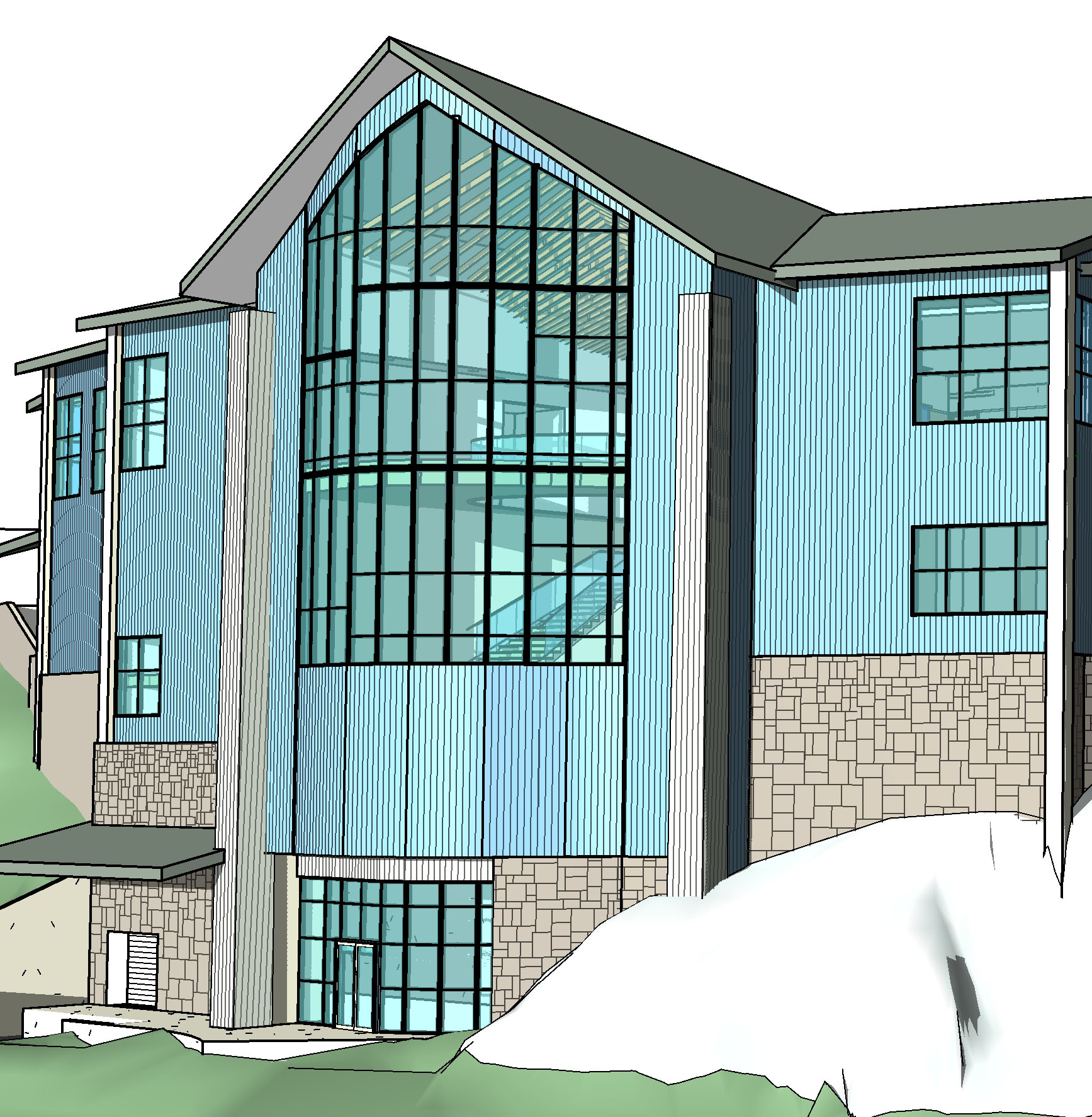

This is an 8' x 30' model hatch pattern. crazy, huh?
once upon a time super-efficient hatch patterns might have been necessary for CAD machines that used vacuum tubes instead of microcircuits... (okay, that's an exaggeration,) but on today's machines this isn't really a problem, considering the other burdens a 3D model places on the memory and processor.
pic related.
|
