Forums >> Revit Building >> Technical Support >> Line weights to roof

Search this ThreadSearch this Thread | Page 1 of 1 |

Fri, Dec 2, 2005 at 4:17:52 AM | Line weights to roof

#1

cadjockey


active

Joined: Thu, Jul 28, 2005
208 Posts
No Rating


Hi all, As we know, you are able to show the individual layers of a roof makeup when in 'fine detail' view. With good drafting practice one does not backline the top and bottom of the roof depth when in section if you are showing the makeup of the roof. You would backline the roof covering only. Is it possible to set a pen weight to a specific layer? cadjockey

This user is offline



Fri, Dec 2, 2005 at 5:14:47 AM | RE: Line weights to roof

#2

Mr Spot


site moderator|||
Mr Spot Avatar

Joined: Tue, Jan 13, 2004
2889 Posts
4.5 Stars: 92 Votes


Yes. Override Host layers in your view settings...

This user is offline

View Website

Mon, Dec 5, 2005 at 5:12:32 AM | RE: Line weights to roof

#3

cadjockey


active

Joined: Thu, Jul 28, 2005
208 Posts
No Rating


Hi Mr Spot, Can you please clarify? When creating a roof style you have the ability to select a number of respective layers ie. roof finish, structure etc. As you know these are assigned a material type eg. finish - roof slate When manipulating the view settings do I need to create a sub-category within the object style 'roof' and call it 'roof slate' in order to set the pen wieght for this segement of the roof make-up? This challenge also applies to ceiling. Essentially I am wanting to have just one layer of the roof(or ceiling) to print with a heavier line weight in section. The roof lining or ceiling lining cadjockey Post edited on 2005-12-05 01:28:04

This user is offline



Mon, Dec 5, 2005 at 7:39:38 AM | RE: Line weights to roof

#4

psymon


active
psymon Avatar

Joined: Sun, Sep 11, 2005
185 Posts
3.5 Stars: 5 Votes


I have a similar question relating to walls. When you view them in elevation, I would prefer to have the surround (edges) in a heavier lineweight. Is there a way to do this? At the moment all the wall and adjacent objects seem to be about the same lineweight *** don't worry. worked it out.*** Post edited on 2005-12-05 02:09:33

This user is offline

View Website

Mon, Dec 5, 2005 at 7:49:08 AM | RE: Line weights to roof

#5

Mr Spot


site moderator|||
Mr Spot Avatar

Joined: Tue, Jan 13, 2004
2889 Posts
4.5 Stars: 92 Votes

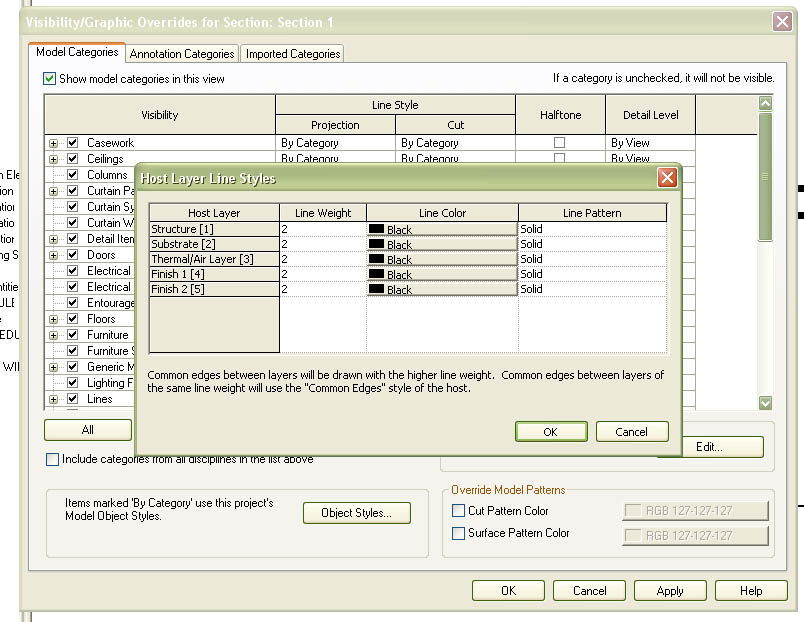

Refer to attached image. No need to create subcategories - just enable this view override.

Attached Images

Override Host Layers.jpg

This user is offline

View Website

Tue, Dec 6, 2005 at 2:30:49 AM | RE: Line weights to roof

#6

cadjockey


active

Joined: Thu, Jul 28, 2005
208 Posts
No Rating


Hi Mr Spot, This must be a version 8 function. I am running version 7 cadjockey

This user is offline
