Hi, I'm trying to make a wall with a finish right on the top without using bad resources like a floor on top of the wall element, etc..

Is it possible to make a wall type that has a parametric feature that make the wall with the exterior/interior finish going somehow to the top?

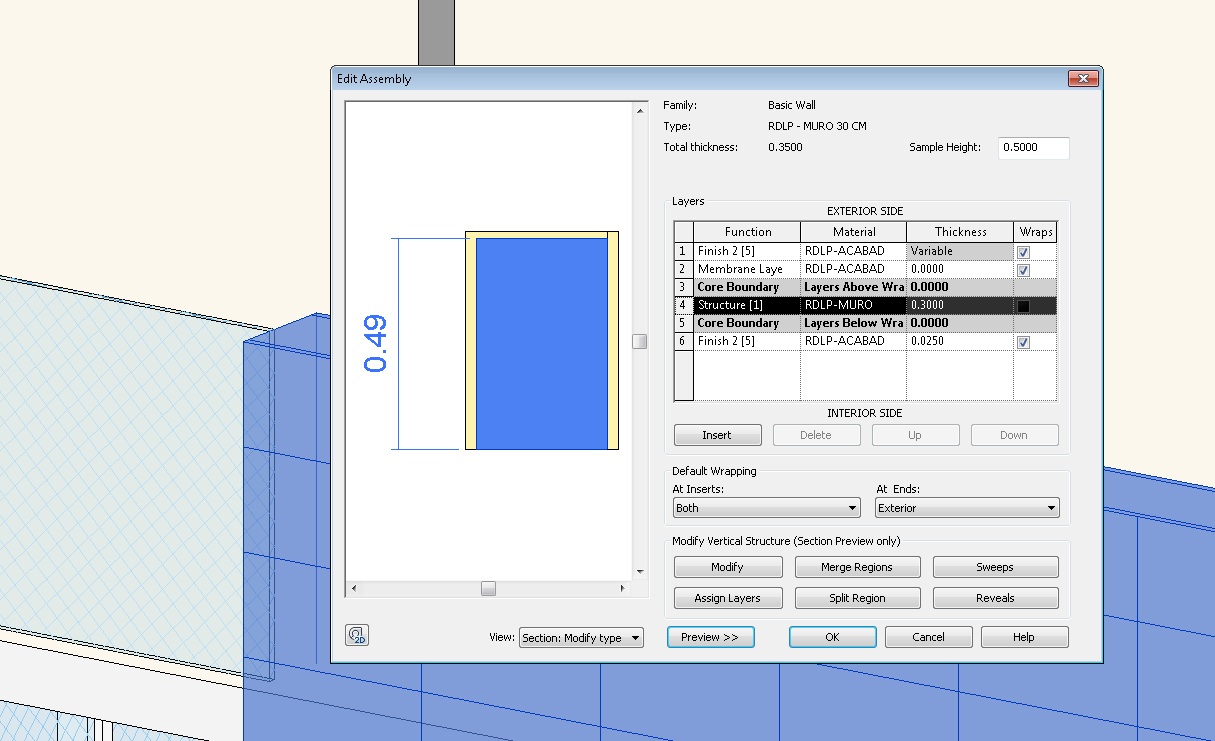

Check the image I uploaded, I just did it, but revit wont let me to press OK without telling me it is wrong...



REGARDS!



Attached Images


This user is offline



Thu, Sep 8, 2011 at 11:26:43 AM | Top Finish on Walls

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 370 Votes


You can not really do what you want without creating a special family.  Instead, we just paint a finish on the exposed top surface.


This user is offline



Thu, Sep 8, 2011 at 12:52:00 PM | Top Finish on Walls

#3

AbsoluteBIM


active
AbsoluteBIM Avatar

Joined: Fri, Jun 17, 2011
220 Posts
3.5 Stars: 3 Votes


I agree, I don't think you can make the material wrap around the top. You could however force the materail there by splitting the core layer:

In your wall assembly:

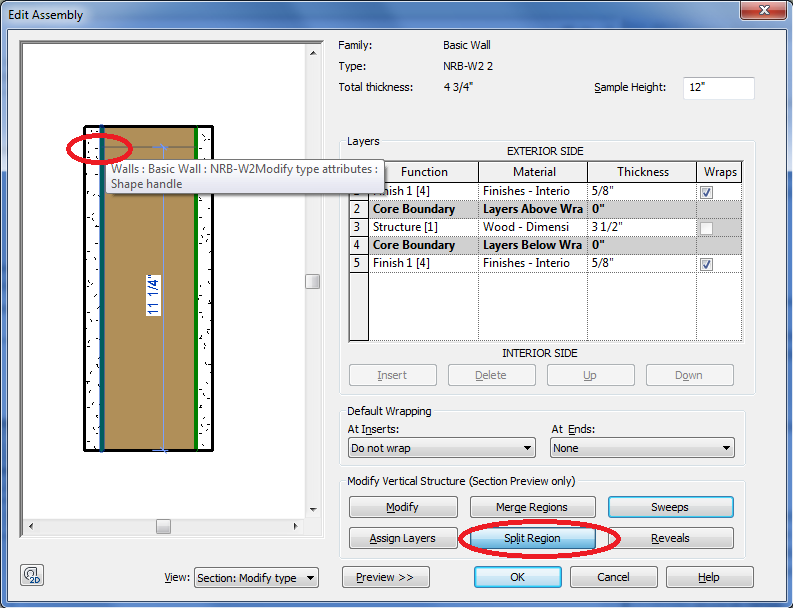

Click on 'split region', and then click on your core layer in the preview window

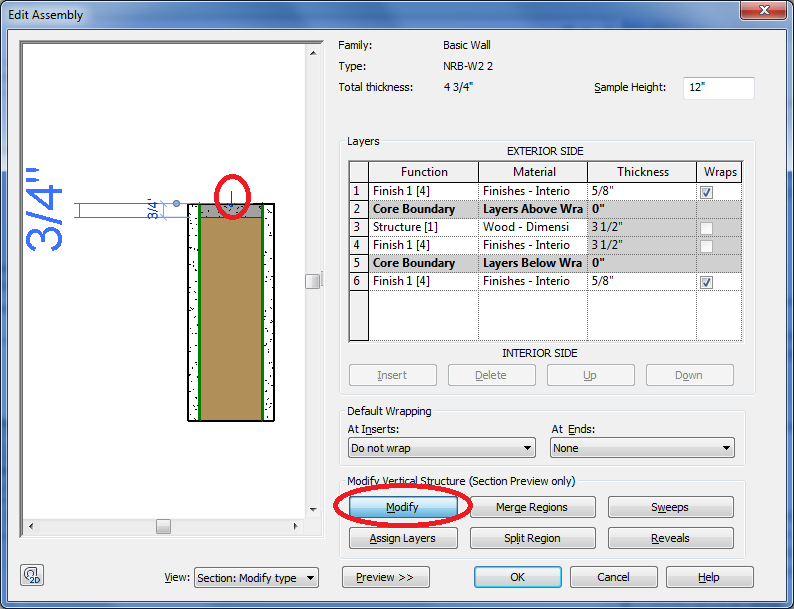

Click on 'modify', and then click on the new split line in the preview window, a blue arrow will appear, click that to flip the dimension so it measures and locks from the top.

Click on 'insert' and add a layer below the core layer, don't give it a thickness

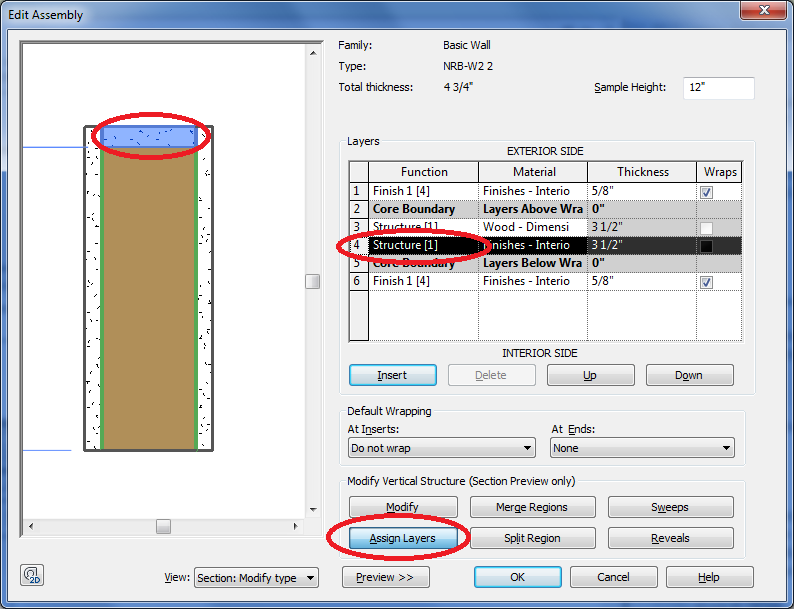

Click on 'assign layers', then click on the new layer you added, then click on the new region in the preview window.

Now assign a material to your new layer. It doesn't merge with the exterior layer but this may be the closest to what your after.



Attached Images


This user is offline



Thu, Sep 8, 2011 at 12:58:54 PM | Top Finish on Walls

#4

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 370 Votes


Absolute,



Interesting thought.  The problem will be that the core will never clean up with the finish so you wall always have lines at their intersection.  Still an interestion thought....


This user is offline



Thu, Sep 8, 2011 at 1:36:52 PM | Top Finish on Walls

#5

JAMESHGRIMES


site moderator|||
JAMESHGRIMES Avatar

Joined: Fri, Apr 14, 2006
584 Posts
4.5 Stars: 9 Votes


I think you could also use an integrated sweep on the top of the wall that was the width of the wall and the thickness of the finish.


This user is offline



Thu, Sep 8, 2011 at 3:50:03 PM | Top Finish on Walls

#6

JAMESHGRIMES


site moderator|||
JAMESHGRIMES Avatar

Joined: Fri, Apr 14, 2006
584 Posts
4.5 Stars: 9 Votes


This file will illustrate what I am talking about. Check out the "Bulkhead" wall type, and the "Kneewall" wall type. They have an integrated sweep on the top/bottom of the wall that is the same material as the finish layers. The lines all clean up fine.



This user is offline



Thu, Sep 8, 2011 at 6:16:18 PM | Top Finish on Walls

#7

vhugomg


active

Joined: Thu, Nov 26, 2009
65 Posts
No Rating


Thanks AbsoluteBIM, In this thread i posted an image where i was trying to make what you described with no success.

Now i just did exactly what you described on your reply #3, it just work fine for my sections and it is what i was looking for.

Hope adesk improves this type of details in the future to make it easier for an average revit user.

Thanks a lot!!






This user is offline



Wed, Nov 29, 2017 at 7:55:05 PM | AbsoluteBIM

#8

vzangel


active

Joined: Tue, Jul 4, 2017
0 Posts
No Rating


Quoting AbsoluteBIM from 2011-09-08 07:52:00

"

I agree, I don't think you can make the material wrap around the top. You could however force the materail there by splitting the core layer:

In your wall assembly:

Click on 'split region', and then click on your core layer in the preview window

Click on 'modify', and then click on the new split line in the preview window, a blue arrow will appear, click that to flip the dimension so it measures and locks from the top.

Click on 'insert' and add a layer below the core layer, don't give it a thickness

Click on 'assign layers', then click on the new layer you added, then click on the new region in the preview window.

Now assign a material to your new layer. It doesn't merge with the exterior layer but this may be the closest to what your after.

"



I followed this procedure and it worked fine, but now I don't know how to undo it. The new layers can't be deleted. I ended up doing another wall without this, but it would be nice to know how to remove it.
