Forums >> Revit Building >> Technical Support >> Trouble with void forms and parametrics in families

hebejebie

active

Joined: Tue, May 5, 2009
4 Posts
No Rating

I am working in Revit 2011.  I am making a curved disc in an octagon rotate curtain wall panel.  I have tested the parametrics I have set up periodically to ensure that they work properly (changing the radius and height).  The only issue i have is when I added the void forms to the disc.  The void forms had very limited ways to attach them to the parameters.  I have locked them, but is there a way to align them?  I haven't been able to do that with the voids.

I have attached the screenshot of the disc with the void forms before I changed the parameters.  I have also attached a screenshot after I changed the parameters.

THANK YOU FOR ALL OF YOUR HELP!

Attached Images

This user is offline

Typhoon

site moderator|||

Joined: Tue, May 22, 2007
5921 Posts

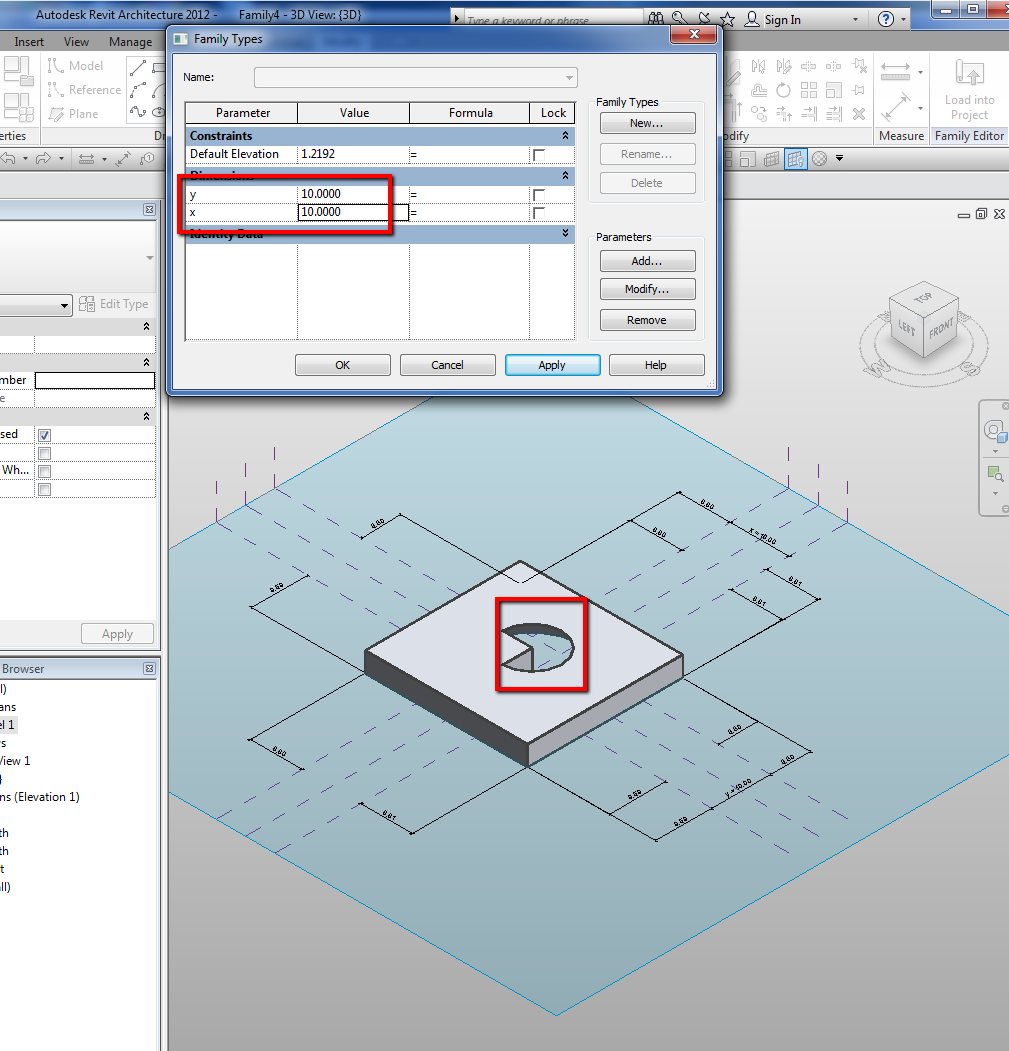

Try this: DON'T create a VOID, create a MASS, now attach and align like you want, now select that mass and convert to void, tell me if this work.

Attached Images

-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline

Typhoon

site moderator|||

Joined: Tue, May 22, 2007
5921 Posts

just like this:

Attached Images

-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline

hebejebie

active

Joined: Tue, May 5, 2009
4 Posts
No Rating

Thanks!  That works!  I never thought of doing that!  That sounds like something I should do every time.

This user is offline
