Forums >> Community >> Newbies >> Parallel Boundary Lines? What do these mean?

Search this ThreadSearch this Thread | Page 1 of 1 |

Tue, Jun 28, 2011 at 9:24:26 AM | Parallel Boundary Lines? What do these mean?

#1

ArchiN00B


active
ArchiN00B Avatar

Joined: Sat, Apr 3, 2010
144 Posts
4.5 Stars: 4 Votes


I have been working in Revit for over a year now and recently have I been seeing these small parallel lines on one or more side of a boundary line.  In the attached image, the boundary line is in plan view of a basic floor, but I think I have seen the lines while sketching other elements also.  What are these?  I'm sure there is a quick, obvious explanation but I couldn't find one in the forums / help files.



Thanks.



Edited on: Tue, Jun 28, 2011 at 9:25:03 AM

Attached Images


This user is offline



Tue, Jun 28, 2011 at 9:31:56 AM | Parallel Boundary Lines? What do these mean?

#2

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes

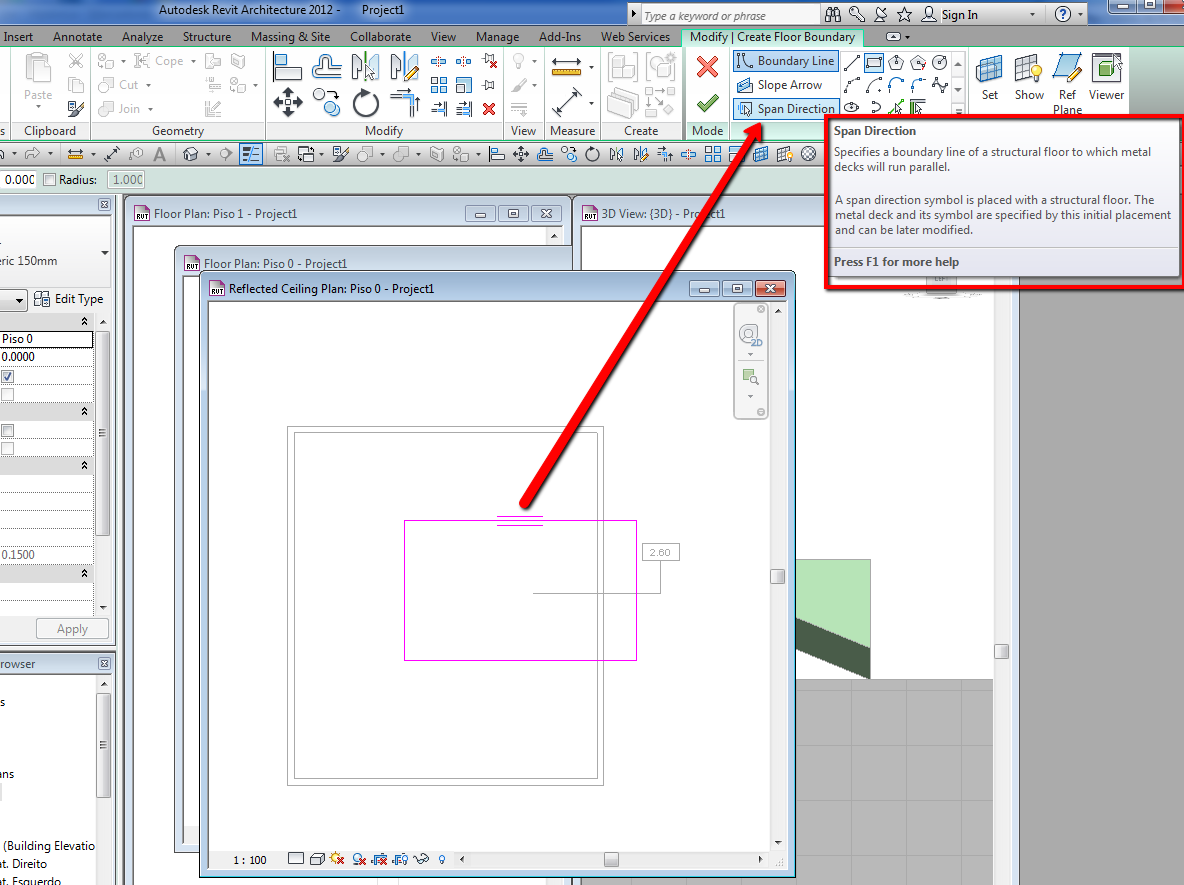

That's the "Span direction"



Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Tue, Jun 28, 2011 at 9:36:02 AM | Parallel Boundary Lines? What do these mean?

#3

ArchiN00B


active
ArchiN00B Avatar

Joined: Sat, Apr 3, 2010
144 Posts
4.5 Stars: 4 Votes


Brilliant!  Thanks.
