I´m Using the 3d view aligned to an Elevation View.

I wan´t make a solid region on the sheet: Annotation Masking Region Doesn´t Work....

Does someone have the solution?

This user is offline

mbsteve

active

Joined: Fri, Sep 22, 2006
759 Posts

Not quite sure what it is that you are trying to do. Probably have to go to GIMP, which is a free graphics program similar to Photoshop. You can put a background view for your rendering haven't done that but it is possible I'm told.

This user is offline

itsmyalterego

active

Joined: Thu, May 28, 2009
829 Posts

I've gotta say I'm confused--if your 3D view is aligned with an elevation elevation, how is it different from a regular elevation?  is it a camera view, with perspective?  If not, i would suggest using an elevation so that you can annotate, and us 2D elements over the view.

This user is offline

Luquex

active

Joined: Wed, Jul 15, 2009
7 Posts
No Rating

Thanks!

Yes, you are Wright,  for the moment I solve the problem using the Design Review:

I attach two JPG:

01-Problem

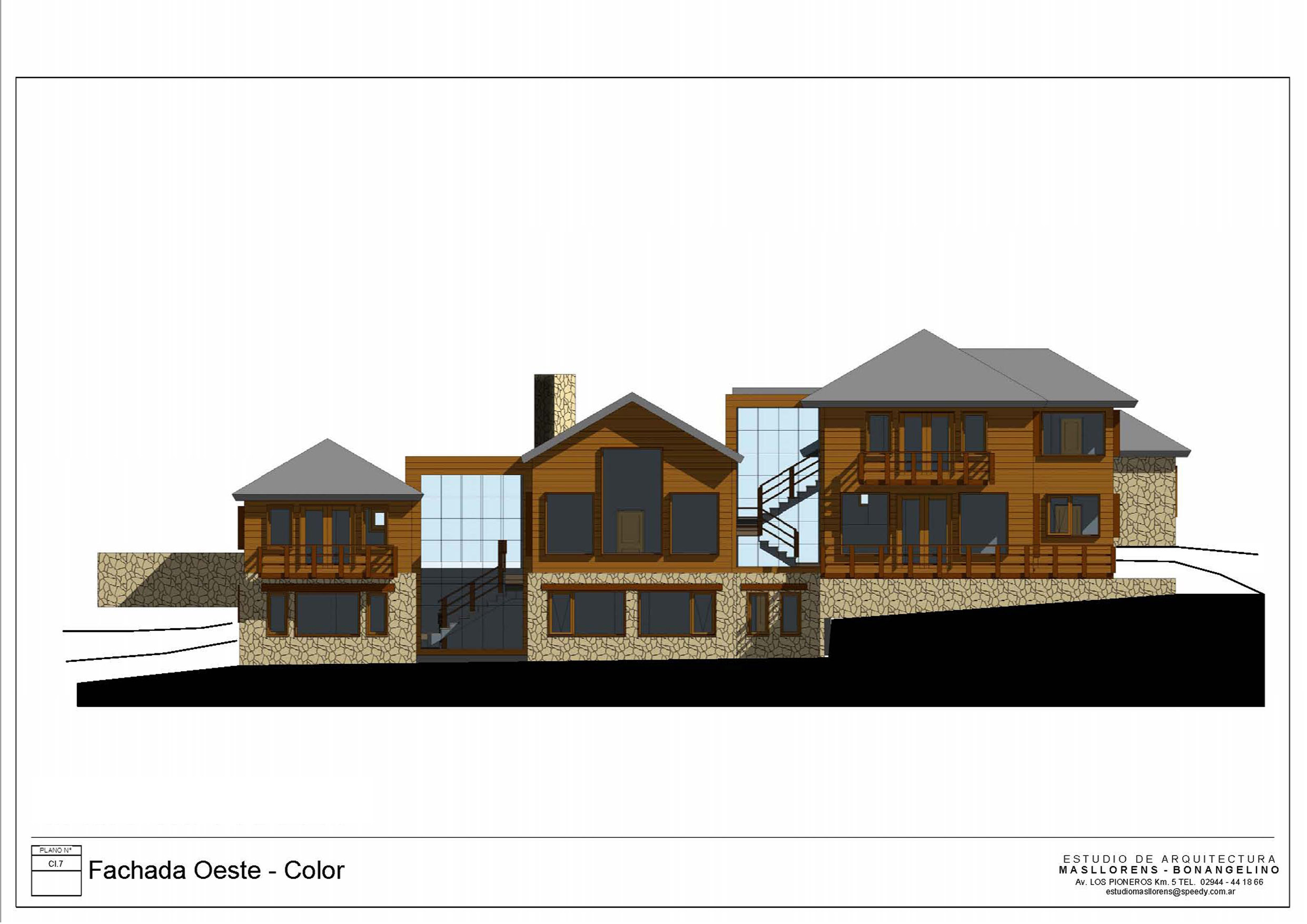

02-Solution

I think that Revit must have the Alternative to make the "region mask" in the Sheet....

Working with the Desing Review was Easy, but, now I have an "extra" file....

Attached Images

This user is offline

Luquex

active

Joined: Wed, Jul 15, 2009
7 Posts
No Rating

Usually I work with the "elevation" an de 2d Anotattion

The issue in this case is that "glass" must be "transparent" and with shadow over it.

So I use the 3d view and "orient" it, to the west elevation.

This user is offline

itsmyalterego

active

Joined: Thu, May 28, 2009
829 Posts

Well, here's my suggestion then.  Put two views on your cover sheet.  One being your 3D view, the other being a drafting view.  You can then activate your drafting view, and draw lines/regions over the top of your 3d view.  Pin your views in place so they can't move.

Pic attached.

Attached Images

This user is offline

Luquex

active

Joined: Wed, Jul 15, 2009
7 Posts
No Rating

Thank´s, The last suggestion Work´s Perfectly!

This user is offline
