Forums >> Revit Building >> Tips & Tricks >> make a wall rise with a ramp

Search this ThreadSearch this Thread | Page 1 of 1 |

Sun, Nov 20, 2005 at 4:25:47 AM | make a wall rise with a ramp

#1

dvsone78


active

Joined: Thu, Nov 17, 2005
19 Posts
No Rating


how would you make a wall rise with a ramp so that its smooth 2' above the ramp.

This user is offline



Sun, Nov 20, 2005 at 7:52:55 PM | RE:

#2

frs8


active

Joined: Wed, Nov 9, 2005
7 Posts
No Rating


Quoting dvsone78 - 2005-11-19 22:25:47

"how would you make a wall rise with a ramp so that its smooth 2' above the ramp."




I would make the wall to be as tall as the lowest point on the ramp and then edit the profile of the wall (in elevation view). You get to Edit Profile by selecting the wall in elevation and then Edit Profile comes up as an option on the tool bar. You can cut out any shape you want.

This user is offline



Sun, Nov 20, 2005 at 9:49:25 PM | RE: make a wall rise with a ramp

#3

Mr Spot


site moderator|||
Mr Spot Avatar

Joined: Tue, Jan 13, 2004
2889 Posts
4.5 Stars: 93 Votes


Is it curving? If so use my tutorial for attaching walls to stairs. The same principle applies.

This user is offline

View Website

Mon, Nov 21, 2005 at 10:23:48 PM | RE: make a wall rise with a ramp

#4

dvsone78


active

Joined: Thu, Nov 17, 2005
19 Posts
No Rating


Yea its curvy i copied the ramp twice into the same space and then made the ramps 8" wide by 2' thick so the ramp now looks like a wall. This is my frist project in Revit.

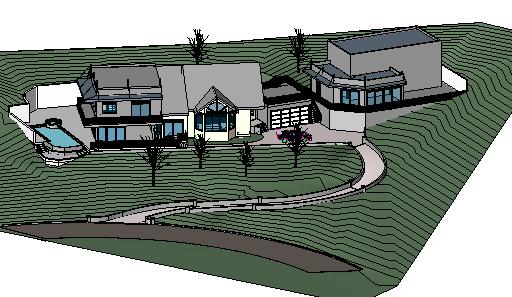

Attached Images


This user is offline
