Forums >> Community >> Newbies >> Sphere Mass - Changing the mass into a roof

Search this ThreadSearch this Thread | Page 1 of 1 |

Sun, May 29, 2011 at 6:18:48 AM | Sphere Mass - Changing the mass into a roof

#1

DSArchitect


active

Joined: Sun, May 29, 2011
18 Posts
No Rating


Hi everyone

I am having a problem creating a spherical roof for a planeterium design I am currently working on, and would appreciate any help!! :-) I am also fairly new and inexperienced with Revit.

I am currently using Revit 2011, and started the process by creating an in-place mass (I also did this by creating a new family, and then loading the family into the project). I simply created a circle, then created a solid form, and then to have the top half, selected the other half, and created a void form.

At this point I have half a sphere, however whatever I do, I cant seem to change this solid spherical mass into a hollow roof.

I hope I have given enough informaiton, and would really appreciate any help anyone can give me. Thanks you.

DS


This user is offline



Sun, May 29, 2011 at 10:18:54 AM | Sphere Mass - Changing the mass into a roof

#2

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 196 Votes

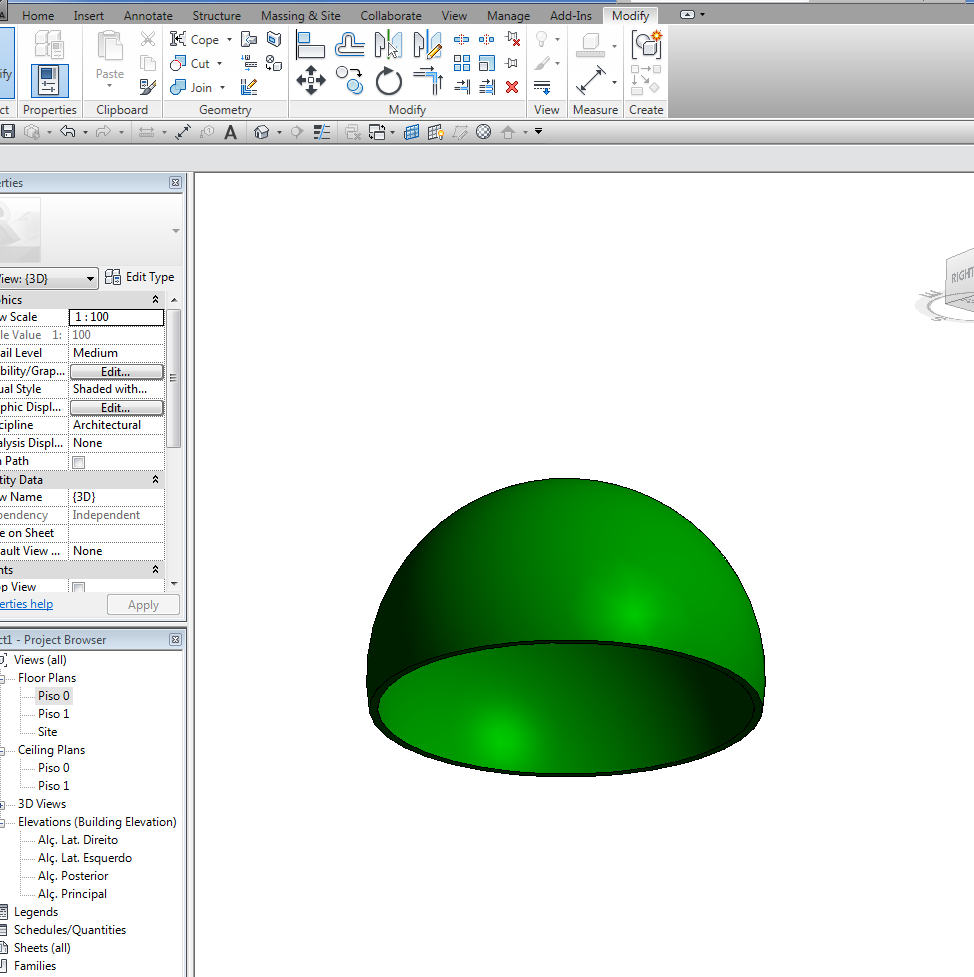

You can create directly in your project an "In-Place" family (Home > Component > Model In-place) in a "Roof" category with the material/texture you want.

Put some images so we can see what are you talking about.





Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Sun, May 29, 2011 at 1:33:19 PM | Sphere Mass - Changing the mass into a roof

#3

DSArchitect


active

Joined: Sun, May 29, 2011
18 Posts
No Rating


Thank you Typhoon

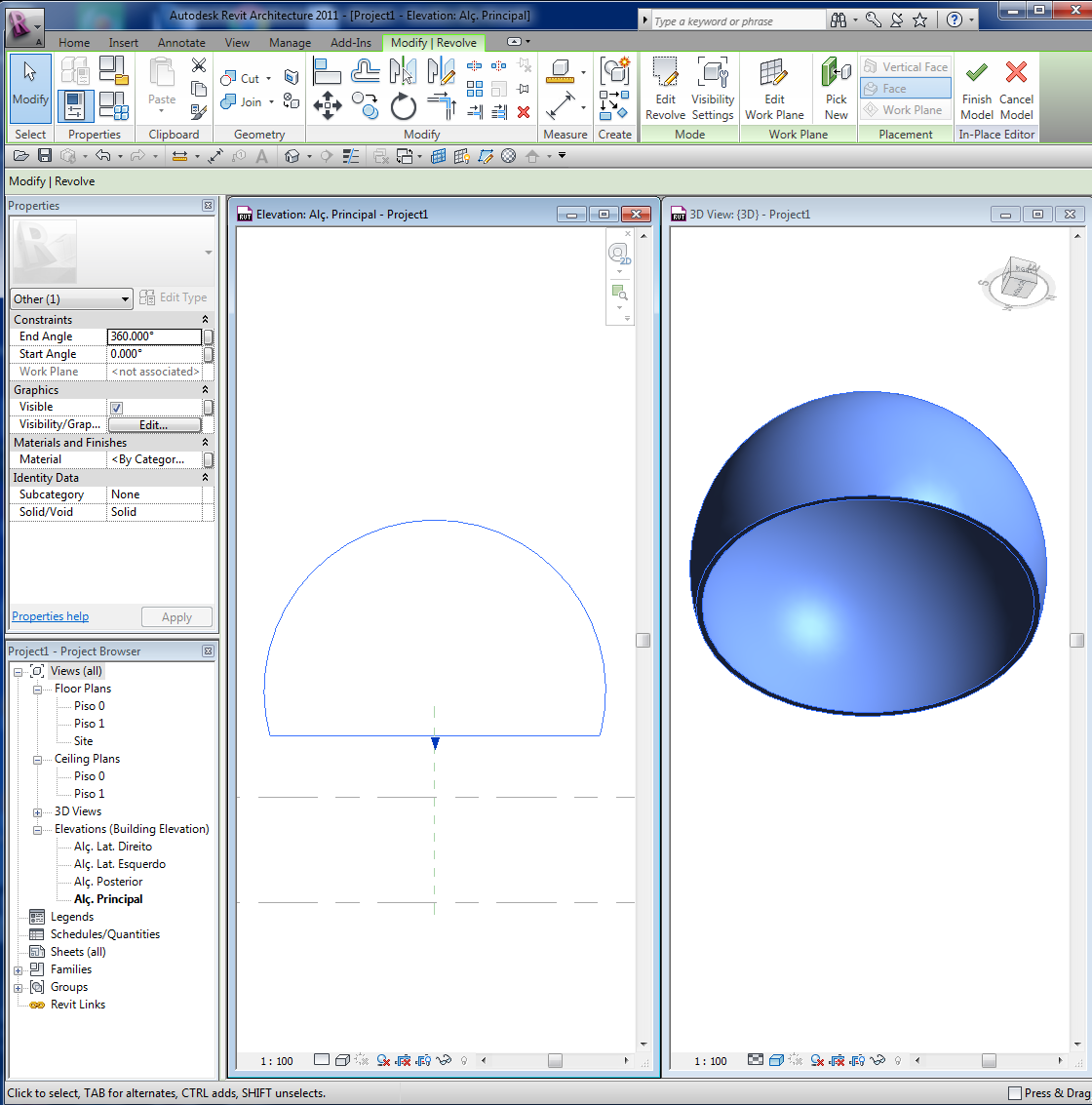

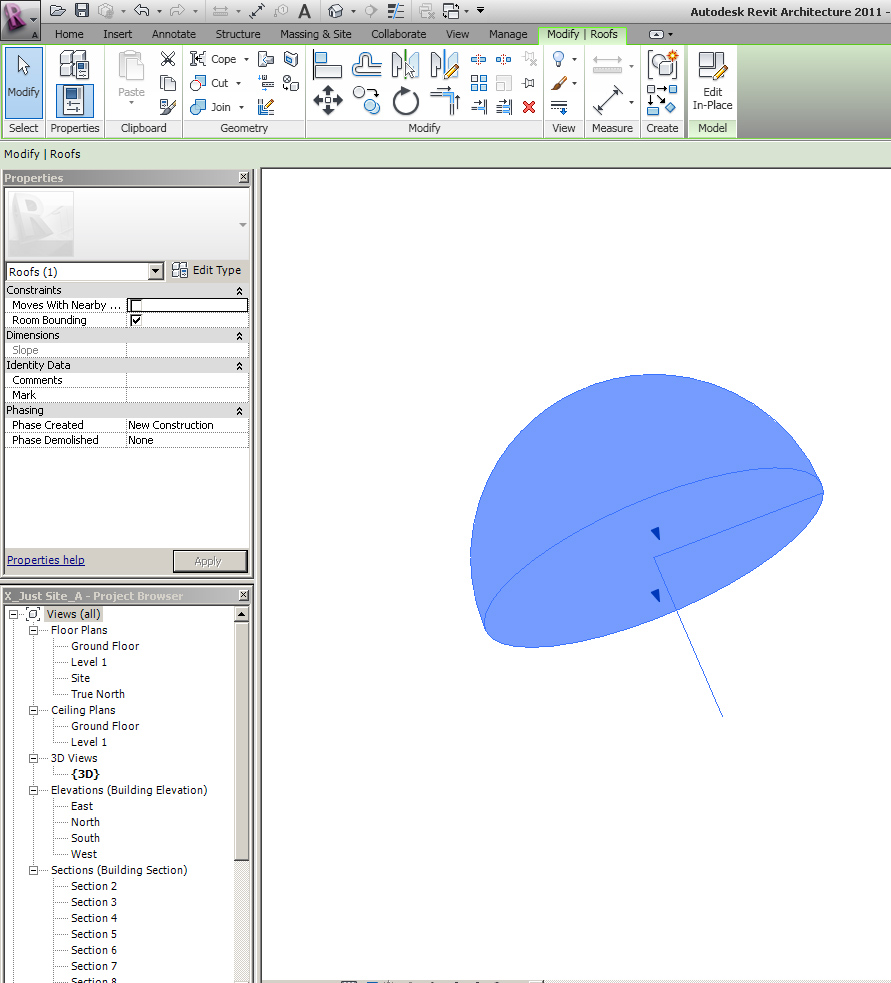

The image you attatched is exactly what I need, however I am unsure how to create the hollow sphere following your instructions above. I have been able to create a half sphere using the model In-place, Roof catergory, however the sphere is still solid.

If possible, could you tell me the quickest method to create the sphere, as the way I am currently doing it seems quite difficult, and isnt working. My current process is as follows:

1) Home > Model in - place > Roof Category2) Model Lines > Lines > Draw half semi-circle (within Level 1 Floor Plan) 3) Home > Revolve > Specify Boudary and Axis Lines4) Click the tick, and then finish model

Thank you again for your help, and time!

Regards DS



Attached Images


This user is offline



Sun, May 29, 2011 at 1:47:34 PM | Sphere Mass - Changing the mass into a roof

#4

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 196 Votes

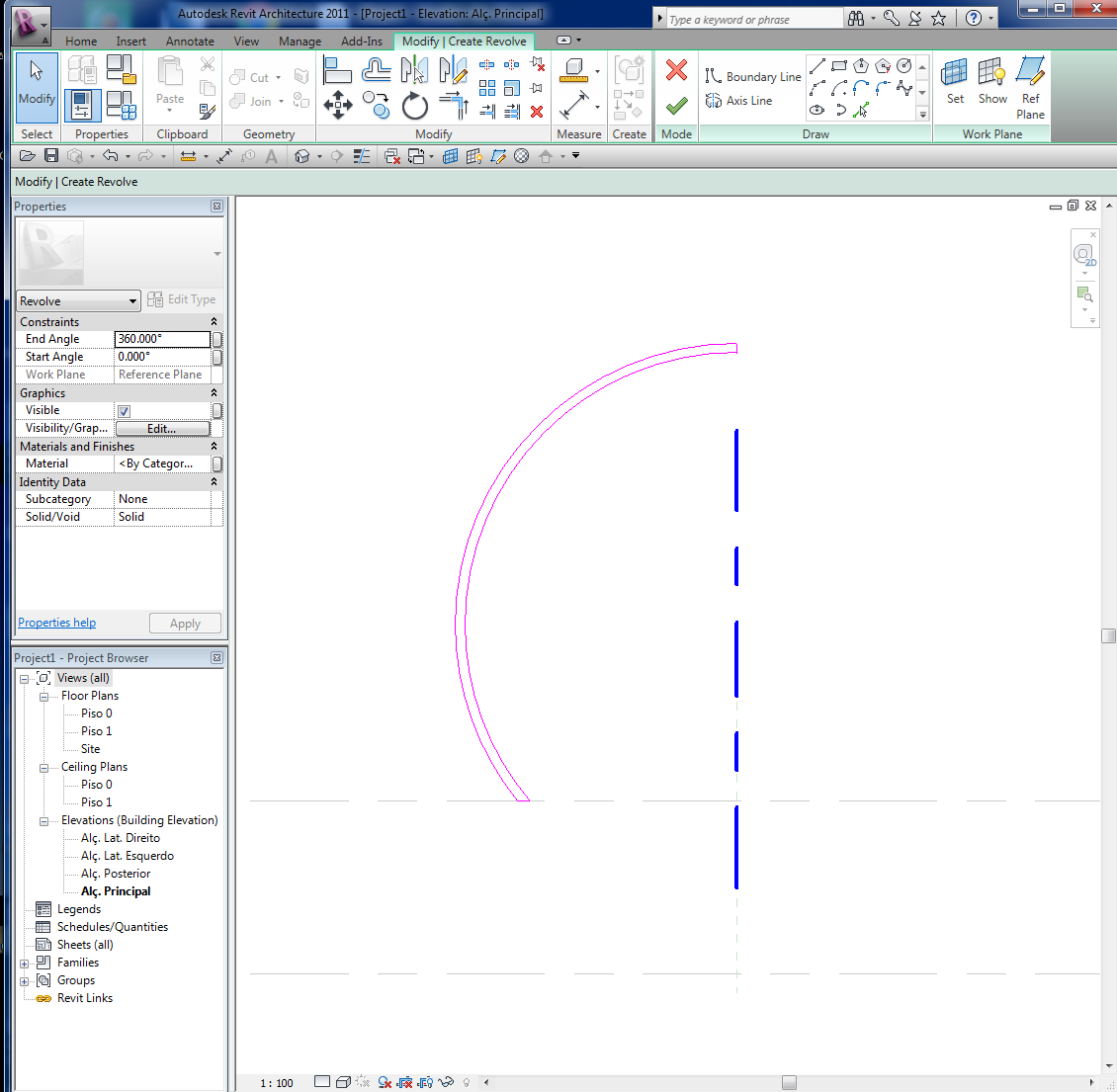

Just sketch that with the thickness you want like you can see in my first image...

Hope this help





Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Sun, May 29, 2011 at 2:20:16 PM | Sphere Mass - Changing the mass into a roof

#5

DSArchitect


active

Joined: Sun, May 29, 2011
18 Posts
No Rating


Awesome. Thank you very much for the help Typhoon! :-)

Regards DS


This user is offline



Tue, Apr 16, 2013 at 1:25:38 PM | Sphere Mass - Changing the mass into a roof

#6

adictedi


active

Joined: Tue, Nov 4, 2008
8 Posts
No Rating


Yeah, there is a topic for how to create a HEMISPHERE in revit .. what do you know. A stupid HEMIPSHERE!!!

Man, Revit has the modelling capabilities of .. gtalk. You can actually model more stuff there.



Edited on: Tue, Apr 16, 2013 at 8:59:35 AM

This user is offline
