Forums >> Revit Building >> Technical Support >> Cad not importing correctly into revit

Search this ThreadSearch this Thread | Page 1 of 1 |

Mon, May 2, 2011 at 10:13:02 AM | Cad not importing correctly into revit

#1

Dafpfy


active

Joined: Sat, Dec 29, 2007
286 Posts
3.5 Stars: 11 Votes

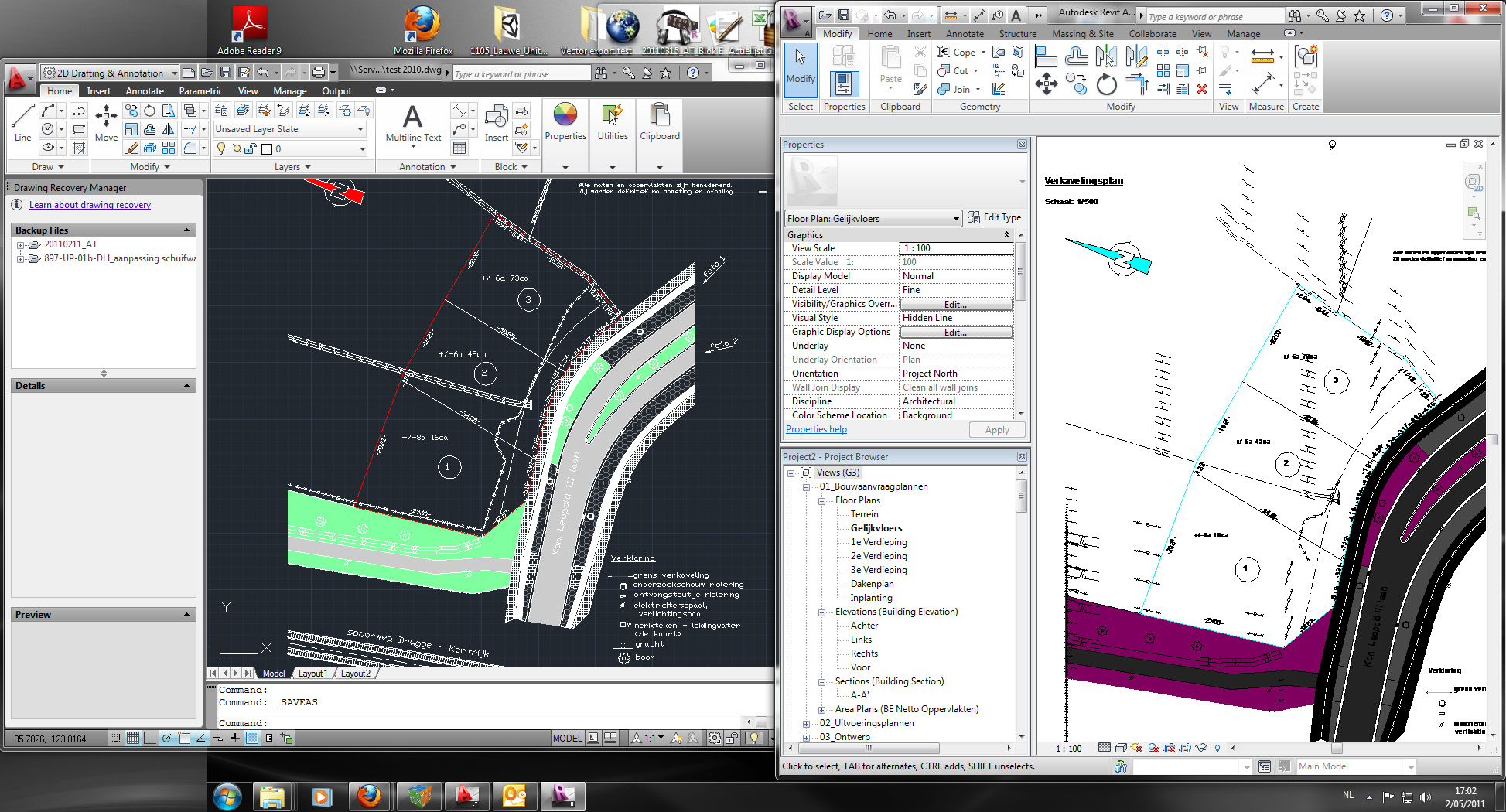

See image for cad vs cad imported into revit.

Any ideas what is going wrong?



Attached Images


-----------------------------------

"There is no path to peace,

peace is the path."

Mahatma Gandhi.



This user is offline



Mon, May 2, 2011 at 10:18:10 AM | Cad not importing correctly into revit

#2

coreed


site moderator|||
coreed Avatar

Joined: Fri, Feb 10, 2006
1874 Posts
4 Stars: 16 Votes


are you refering to the colors?


-----------------------------------

best regards,

coreed,aia

bmpArchitects,Inc.

"Revit has to be implemented, Not installed."

Long Live Revit

This user is offline



Mon, May 2, 2011 at 10:23:23 AM | Cad not importing correctly into revit

#3

Dafpfy


active

Joined: Sat, Dec 29, 2007
286 Posts
3.5 Stars: 11 Votes


no :pSmile



The lines are pread around in segments.


-----------------------------------

"There is no path to peace,

peace is the path."

Mahatma Gandhi.



This user is offline



Mon, May 2, 2011 at 10:48:26 AM | Cad not importing correctly into revit

#4

coreed


site moderator|||
coreed Avatar

Joined: Fri, Feb 10, 2006
1874 Posts
4 Stars: 16 Votes


try linking instead of importing and see if it has the same result.


-----------------------------------

best regards,

coreed,aia

bmpArchitects,Inc.

"Revit has to be implemented, Not installed."

Long Live Revit

This user is offline



Mon, May 2, 2011 at 11:36:00 AM | Cad not importing correctly into revit

#5

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 388 Votes


It appears that the CAD "Lines" are not native lines but a defined line like lines with characters in it.
