how do i edit a path for a solid sweep

that starts on the first level work plane

and spirals up like a coil spring to higher

levels? something like spiral stairs..



or if i could get model lines that way

maybe i could pick that as a path?



there was once an answer here about "piecing"

together parts of the spring and building it up

or something- but i cannot imagine that..

revit 2011- thanks..



Edited on: Wed, Apr 27, 2011 at 8:54:00 PM

This user is offline



Thu, Apr 28, 2011 at 1:52:31 AM | in-place coil spring

#2

itsmyalterego


active
itsmyalterego Avatar

Joined: Fri, May 29, 2009
829 Posts
4 Stars: 15 Votes


Swept blend.   I would draw a 180 degree arc for you path, and a rectangle for profile one and ground level, 2nd rectangle at X height. rotate and stack these as you please, and then use an outside edge of these objects as the picked 3D edge path of your more complex sweep.



That's just a first instinct idea, by no means the best idea I'm sure.



to expand on this:  It's probably better to do in two steps because it's difficult to account for the disortion of a swept blend between the two profiles.  A sweep is always perpendicular to the path however.  Swept blend profiles are vertical.





Edited on: Wed, Apr 27, 2011 at 9:17:14 PM

This user is offline



Thu, Apr 28, 2011 at 2:07:34 AM | in-place coil spring

#3

itsmyalterego


active
itsmyalterego Avatar

Joined: Fri, May 29, 2009
829 Posts
4 Stars: 15 Votes

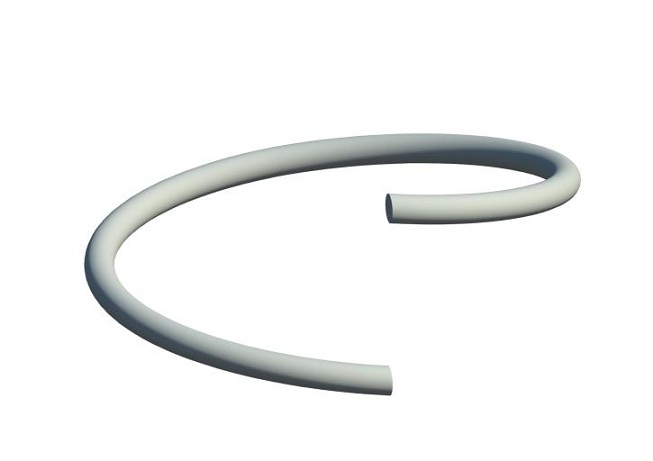

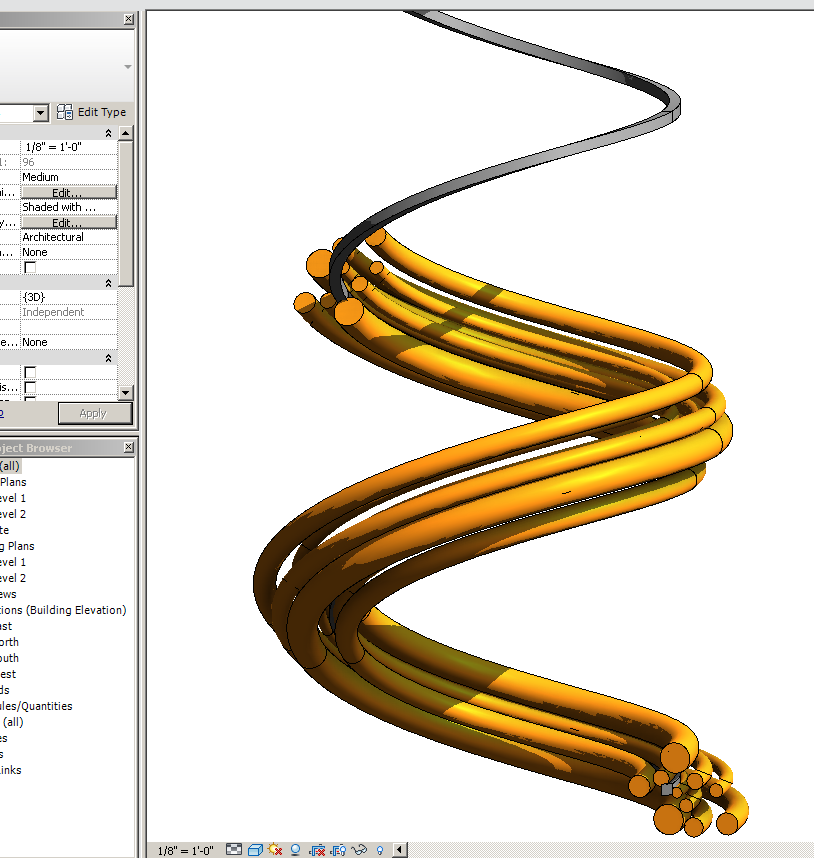

posted pic.  easy and fast.  Tip:  sometimes picking a path will give you an error.  Like stairs, shorten it, finish it, re-edit and make it more complex and the program won't complain.



edit:  sorry, images are refusing to upload.





Edited on: Wed, Apr 27, 2011 at 9:46:39 PM

Attached Images


This user is offline



Thu, Apr 28, 2011 at 3:45:48 AM | in-place coil spring

#4

vector23



vector23 Avatar

Joined: Sun, Apr 23, 2006
265 Posts
2 Stars: 16 Votes


i sure did get this thing tangled up in

my mind before i figured it out..



i guess that's why it's taken me five

years to learn only half of revit.. oh well..



thanks alterego



Attached Images


This user is offline



Thu, Apr 28, 2011 at 4:21:07 AM | in-place coil spring

#5

thetabest


active
thetabest Avatar

Joined: Tue, Mar 15, 2011
199 Posts
3 Stars: 2 Votes


this is when i wish i knew 3d max, a double helix is easy in it, so you could model in max then import to revit...


-----------------------------------

Trent Best

Best Systems

the.tabest@gmail.com

This user is offline



Thu, Apr 28, 2011 at 4:32:09 AM | in-place coil spring

#6

vector23



vector23 Avatar

Joined: Sun, Apr 23, 2006
265 Posts
2 Stars: 16 Votes


no if you imported from 3ds max it would have to be

a DWG into a mass.. and the only thing you can

do with a DWG mass is use it for reference- preferably

in a separate session of revit.. none of these programs

can talk to each other.. 3ds and AutoCAD never even

heard of IFC.. sure you can send a revit model nicely

to 3ds if you really want to render with the same

rendering engine.. but you can't do anything with

a model from 3ds except look at it..








This user is offline



Thu, Apr 28, 2011 at 4:51:23 AM | in-place coil spring

#7

thetabest


active
thetabest Avatar

Joined: Tue, Mar 15, 2011
199 Posts
3 Stars: 2 Votes


scratch another program off list of need to learns!  i was imagining the power of 3ds easily forming a mass  ..  tthought they touted this as a feature for 2012, ...?


-----------------------------------

Trent Best

Best Systems

the.tabest@gmail.com

This user is offline



Thu, Apr 28, 2011 at 7:16:41 AM | in-place coil spring

#8

vector23



vector23 Avatar

Joined: Sun, Apr 23, 2006
265 Posts
2 Stars: 16 Votes


if you are an ARTIST- a DESIGNER- then ANY wireframe

modelling program YOU LIKE is the best one..



SketchUP- 3Ds Max- Bonzai3D- Maya- AutoCAD-

Revit massing etc. etc..



i'm not an artist/designer- i use revit for virtual

construction and documentation.. i PAY the artist

for their designs- and then i build them into something

real that i can sell.. i don't care if designs come from a

program that generates .dwg- .skp or from revit

massing- it's all the same to me..



maybe autodesk thought it would be convenient

for me if my designs came from revit massing-

so they built up what used to be a very very

simple massing program that was built into revit..

it used to be useful for things like form roofs

and some kinds of in-place families- i guess..



until a few weeks ago before autodesk

released this new stand-alone massing

part of revit- not many artists would buy

the whole 5000 dollar revit program

just for designing.. and artists who are also

builders are not common..



but i think autodesk made a smart move

turning revit massing into a full-blown

design program- because just look at

all the revit art work that's come into

the revit city gallery..
















This user is offline



Thu, Apr 28, 2011 at 12:03:09 PM | in-place coil spring

#9

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 368 Votes


Single and double Helix's have been produced in Revit for sometime.  Here is a quote from Everything Autodesk Revit & BIM  2009 on a competition HOK did:



“The most exciting moment of my design was when time was up, and I transferred all the Parameter information to a nested set of the simple elements. In the click of a button I asked Revit to recalculate over 4500 values, model 1600 solids, regenerate around 20 views, most shaded and shadow-enabled and including perspectives. It took around 3 tense minutes for a quite cryptic image on screen to become the bridge I had in mind.”

....now do that as easily in max



Edited on: Thu, Apr 28, 2011 at 7:04:32 AM

Attached Images


This user is offline



Thu, Apr 28, 2011 at 6:06:06 PM | in-place coil spring

#10

vector23



vector23 Avatar

Joined: Sun, Apr 23, 2006
265 Posts
2 Stars: 16 Votes


that's a powerful revelation Hub-



if twisted-shape architecture takes off like

autodesk is betting it will- no program can

construct AND design it as well as revit..



so then what i used to think of revit massing

as just being for creating twisted roof extrusions

on rare occasions was really a key to the future

of commercial architecture?  probably better

leave bridges to AutoCAD though..






This user is offline



Sun, May 15, 2011 at 9:46:28 AM | in-place coil spring

#11

McDave


active

Joined: Wed, May 11, 2011
1 Posts
No Rating


vector 23 ->



".. and artists who are also

builders are not common.."



they're called architects :-)


This user is offline



Sun, May 15, 2011 at 9:01:20 PM | in-place coil spring

#12

vector23



vector23 Avatar

Joined: Sun, Apr 23, 2006
265 Posts
2 Stars: 16 Votes


McDave- i'm very impressed with your intelligence and perception..

i agree with you.. i hope we can be partners..


This user is offline



Sun, May 15, 2011 at 9:24:05 PM | in-place coil spring

#13

vector23



vector23 Avatar

Joined: Sun, Apr 23, 2006
265 Posts
2 Stars: 16 Votes


McDave- the only thing is- there's nothing on the ARE to do with aesthetics..


This user is offline



Sun, May 15, 2011 at 9:51:04 PM | vector23

#14

coreed


site moderator|||
coreed Avatar

Joined: Fri, Feb 10, 2006
1874 Posts
4 Stars: 16 Votes


Quoting vector23 from 2011-05-15 16:24:05

"

McDave- the only thing is- there's nothing on the ARE to do with aesthetics..

"

your are correct. The elevation requirement was removed serveral years ago.


-----------------------------------

best regards,

coreed,aia

bmpArchitects,Inc.

"Revit has to be implemented, Not installed."

Long Live Revit
