I'm really new to Revit, practically teaching myself from scratch on how to use the program, and there is one main thing i cannot get my head around! When we issue our drawings in our office,  our symbols for new and existing are differentiated by a hatch style, i.e. - new light is hatched, existing light is not hatched.

In Revit how do you go about showing the same type of power, data, lights, furniture etc. in a new and existing way so that they can be easily read?

This user is offline

vector23

Joined: Sun, Apr 23, 2006
265 Posts

just google .pat and there are thousands of

hatch patterns to download.. and then your

next question will probably be how do you

get one of them into revit.. but i'll wait for

you to ask that..

This user is offline

giulia1

active

Joined: Tue, Apr 26, 2011
6 Posts
No Rating

thank you thank you!!! i really appreciate itim going to try and figure it out before i ask...

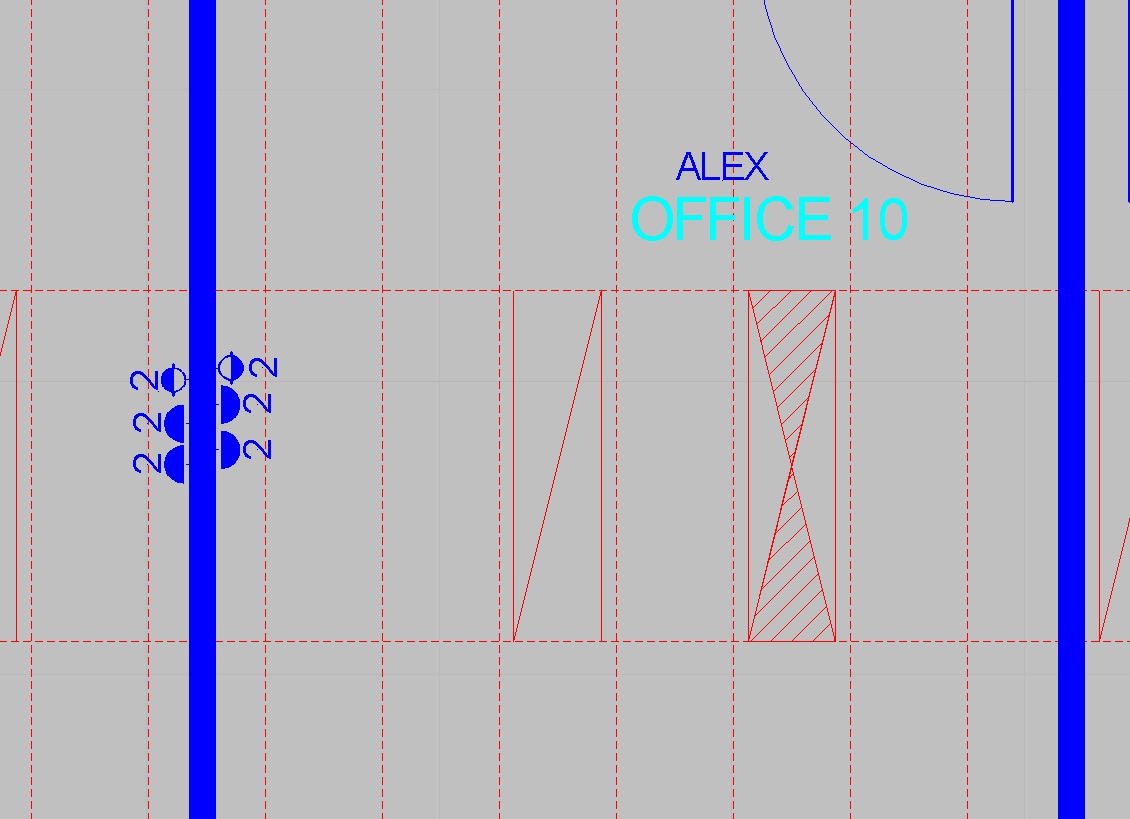

so you are saying that i can show an existing light like this and a new one like this...

Attached Images

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

We use phase controls for new vs existing and all existing is shown halftone.  You could also control the linework - we show demolished as hidden line.....

Hatches applied in views is a CAD thought process.  If you can do it through model VG contol it is far easier - and better.

This user is offline

giulia1

active

Joined: Tue, Apr 26, 2011
6 Posts
No Rating

true! i need to get my head out of thinking cad, ill try this all out and see how it goes!thank you so much for the help i really appreciate it!!!!!!

This user is offline

thetabest

active

Joined: Tue, Mar 15, 2011
199 Posts

just wondering about phases... do you rename your new construction phase like to say the project name?

-----------------------------------

Trent Best

Best Systems

the.tabest@gmail.com

This user is offline

giulia1

active

Joined: Tue, Apr 26, 2011
6 Posts
No Rating

Ive got one more question so sorry!!!i'm creating my title block and there is a rectangle that just wont go away,

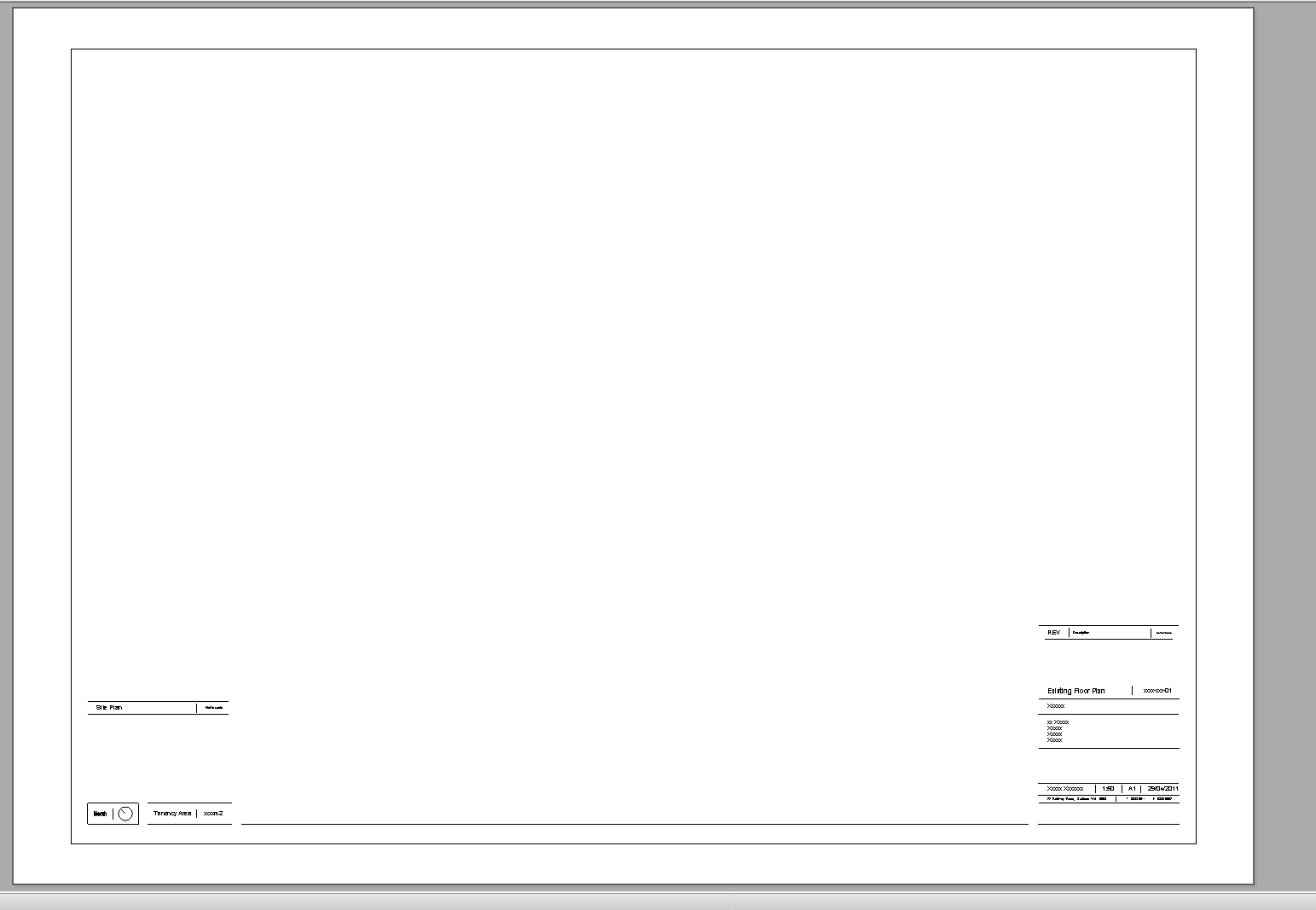

i go - create new family, grap the a1 metric page, then drop in my title block from cad...and when i print it has a rectangle around it, even though its all to scale, what am i doing wrong?>?

Attached Images

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

I would recommend that you absolutly don't insert a CAD titleblock into your Revit titleblock.  You need to create true Revit elements wherever you can because CAD will bloat your project and cause many problems.

You have a very simple titleblock here so now is the time to begin.  You can insert the CAD and "trace" it ... for now, that may be simplier for you.  Then you need to add the text elements using revit text.  Adding sheet parameters will be your hardest part because there is a lot to learn ablout parameters.

Download the Families Guide from autodesk.  It has a chapter that will walk you through how to create your titleblock.
