Forums >> Revit Building >> Technical Support >> how to roate the mullion of a curtain system along the the out side

Search this ThreadSearch this Thread | Page 1 of 1 |

Wed, Apr 20, 2011 at 3:41:21 AM | how to roate the mullion of a curtain system along the the out side

#1

fairywiner


active

Joined: Thu, Oct 21, 2010
85 Posts
No Rating

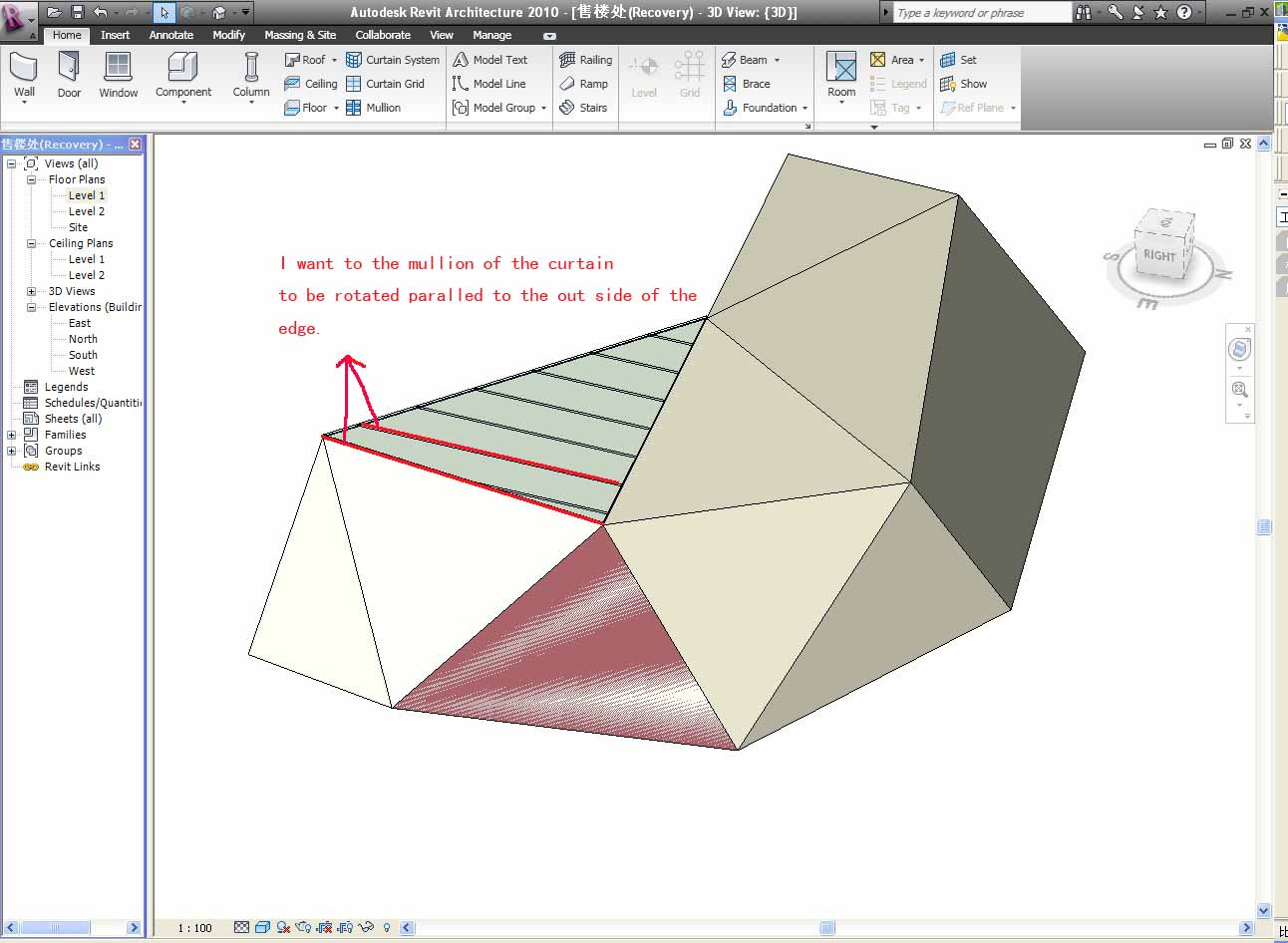

how to roate the mullion of a curtain system along the the out side of it's frame, look, my curtain system is made on triangle shape, I want to the curtain's mullion paralleled the one of the sides of the triangle.



Attached Images


-----------------------------------

沧海月明珠有泪

This user is offline



Wed, Apr 20, 2011 at 12:52:46 PM | how to roate the mullion of a curtain system along the the out side

#2

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes

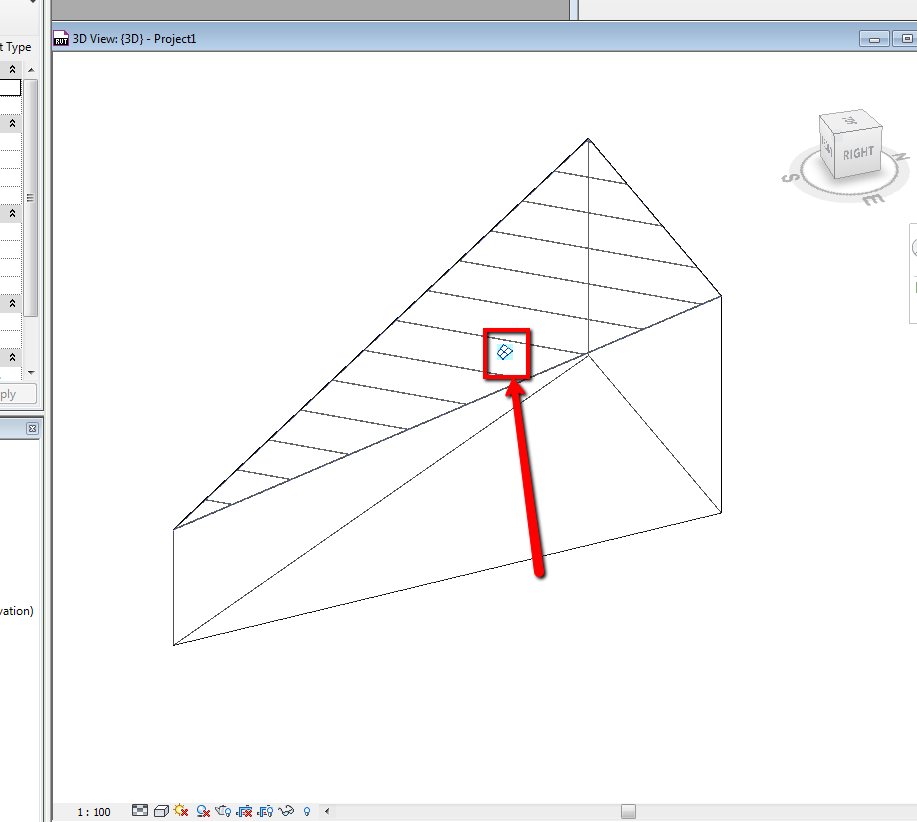

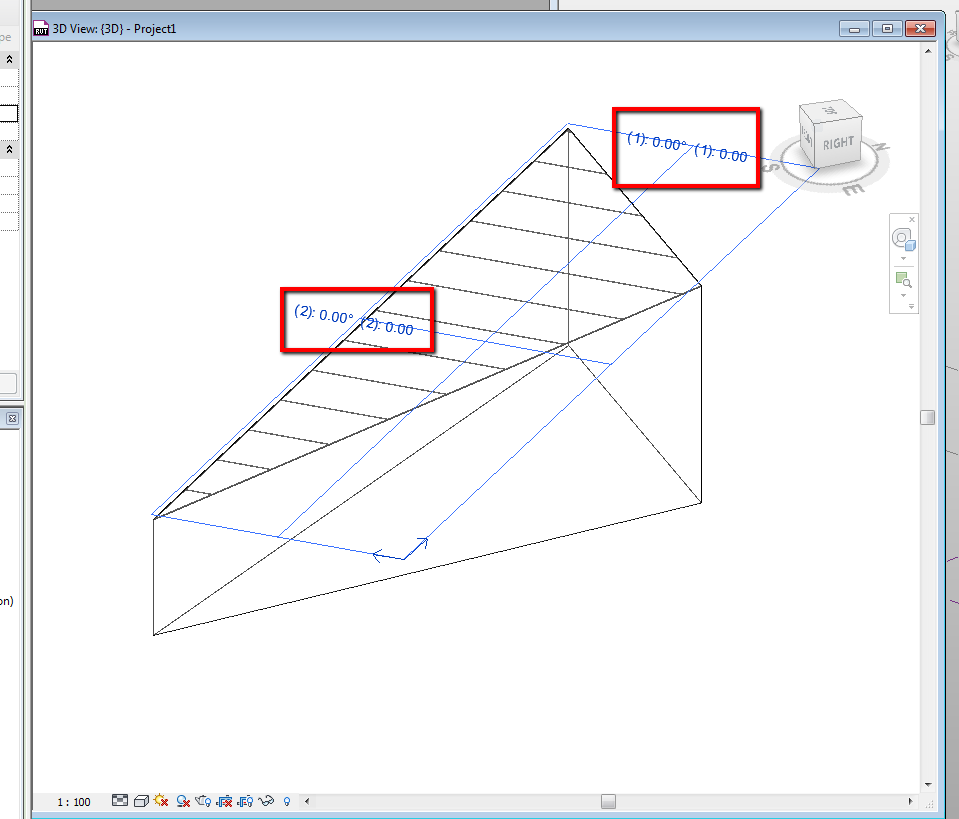

Click on that "curtain System" and you will see "Configure grid layout" icon, just click on that icon then you can change the angle like you need...





Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Mon, Apr 25, 2011 at 3:01:11 AM | how to roate the mullion of a curtain system along the the out side

#3

fairywiner


active

Joined: Thu, Oct 21, 2010
85 Posts
No Rating


thank you. but I find it a little complex, because I have to align every faces.

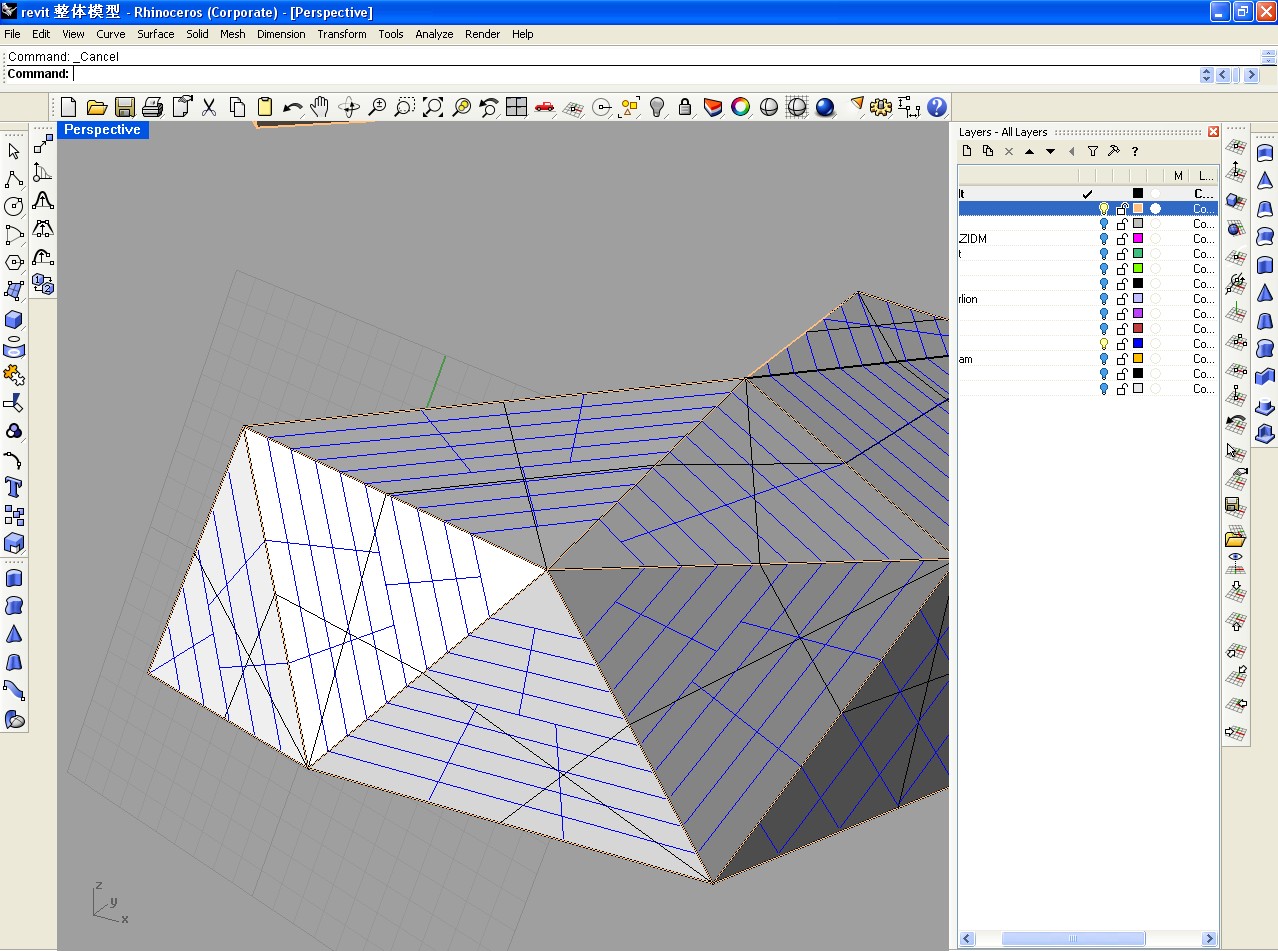

 Is there some more directly ways to make the mullion systems ? look I have made the curtain pattern in rhino, all the lines in the faces have already set. can I just use the pattern lines derectly in revit, so I didn't remake all the mullion lines in revit again?



Attached Images


-----------------------------------

沧海月明珠有泪

This user is offline



Mon, Apr 25, 2011 at 11:00:29 AM | how to roate the mullion of a curtain system along the the out side

#4

nastyclown


active
nastyclown Avatar

Joined: Mon, Jul 13, 2009
273 Posts
4.5 Stars: 9 Votes


Are you familiar with vasari or mass editing in revit? you can do that layout in that environment, then load it into revit proyect environment.

Mass-->lines by proyection. Still... its going to be a curtainwall angled, but you will have the hability to edit it as much your design need.

If you already done that in rhino, why notimporting it to revit to get the correct cut/elevation/plans? you have to give it someticnkess to the glass, and some profile in the layout of the steel structure.


This user is offline



Tue, Apr 26, 2011 at 2:40:26 AM | how to roate the mullion of a curtain system along the the out side

#5

fairywiner


active

Joined: Thu, Oct 21, 2010
85 Posts
No Rating


Are you familiar with vasari or mass editing in revit? you can do that layout in that environment, then load it into revit proyect environment.

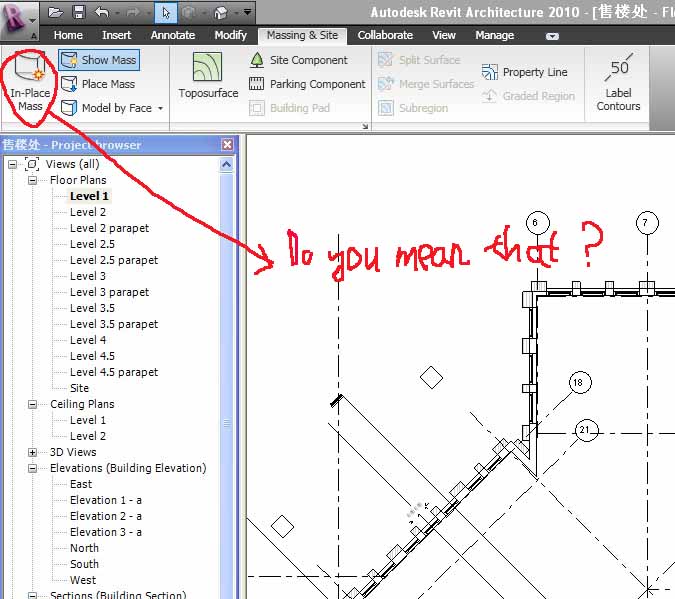

sorry I don't know much about you what you said "vasari or mass editing" do you mean that as my picture ?

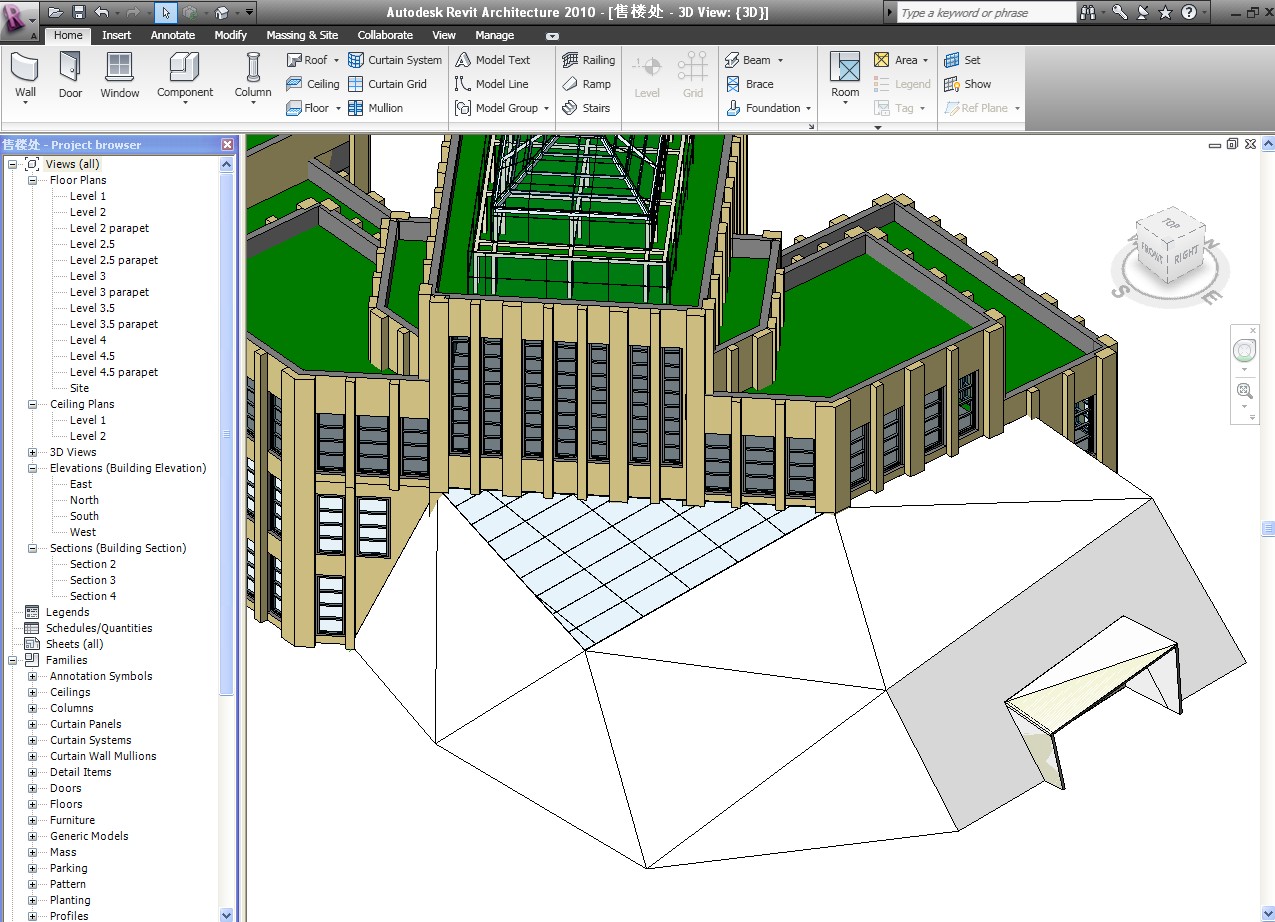

acctually what I did in revit is that, first covert the rhino model to sketchup model, then in revit

Then go to "Componet" under the Basics toolbar, the "Create in place", select "Generic Models".  Then go file->import cad fomrats-> sketchup model.  Make sure that "Current View Only" and "Link" are both unchecked.  select the sketchup file and click open.  click "Finish Family"  and thats all that i did.  Now i went to wall, then chose by face and it worked for me just fine.

that's is how I make the shape in revit, I don't if there have some simpler ways to make my model.

and revit seems never can drawing with out a working face. that's why I have load all the model from the sketchup model.



Attached Images


-----------------------------------

沧海月明珠有泪

This user is offline
