Mon, Mar 28, 2011 at 8:16:13 PM | Modeling Site Utilities (i.e., SS, SD, Waterline....)

#1

GRINHEART


active
GRINHEART Avatar

Joined: Fri, Jun 12, 2009
157 Posts
4 Stars: 5 Votes


Hello all,

I work for a Developer Firm... the civil engineers for this particular projects don't have any 3d models for the site utilities... i was told to model these utilities for clash detection in Navisworks Manage... I was wondering was would be the best approach to accomplish this task?

1.) will you use "in-place" family for these?

2.) do the 3d models in autoCAD and import/link it in Navis? if doing this, would clash detecting tools in navisworks since these models would be consider null/unintelligent objects?

Please let me know what your thoughts are...before i start modeling these. Thanks in advance!!!

-Allan


-----------------------------------

 "If you tell the truth, you don't have to remember anything"

This user is offline

View Website

Mon, Mar 28, 2011 at 8:19:32 PM | Modeling Site Utilities (i.e., SS, SD, Waterline....)

#2

GRINHEART


active
GRINHEART Avatar

Joined: Fri, Jun 12, 2009
157 Posts
4 Stars: 5 Votes


Correction (Typo):

I work for a Developer Firm... the civil engineers for this particular projects don't have any 3d models for the site utilities... i was told to model these utilities for clash detection in Navisworks Manage... I was wondering WHAT would be the best approach to accomplish this task?

1.) will you use "in-place" family for these?

2.) do the 3d models in autoCAD and import/link it in Navis? if doing this, would clash detecting tools in navisworks WORK since these models would be consider null/unintelligent objects?

Please let me know what your thoughts are...before i start modeling these. Thanks in advance!!!




-----------------------------------

 "If you tell the truth, you don't have to remember anything"

This user is offline

View Website

Tue, Mar 29, 2011 at 4:25:20 PM | Modeling Site Utilities (i.e., SS, SD, Waterline....)

#3

mbsteve


active
mbsteve Avatar

Joined: Fri, Sep 22, 2006
759 Posts
4 Stars: 12 Votes

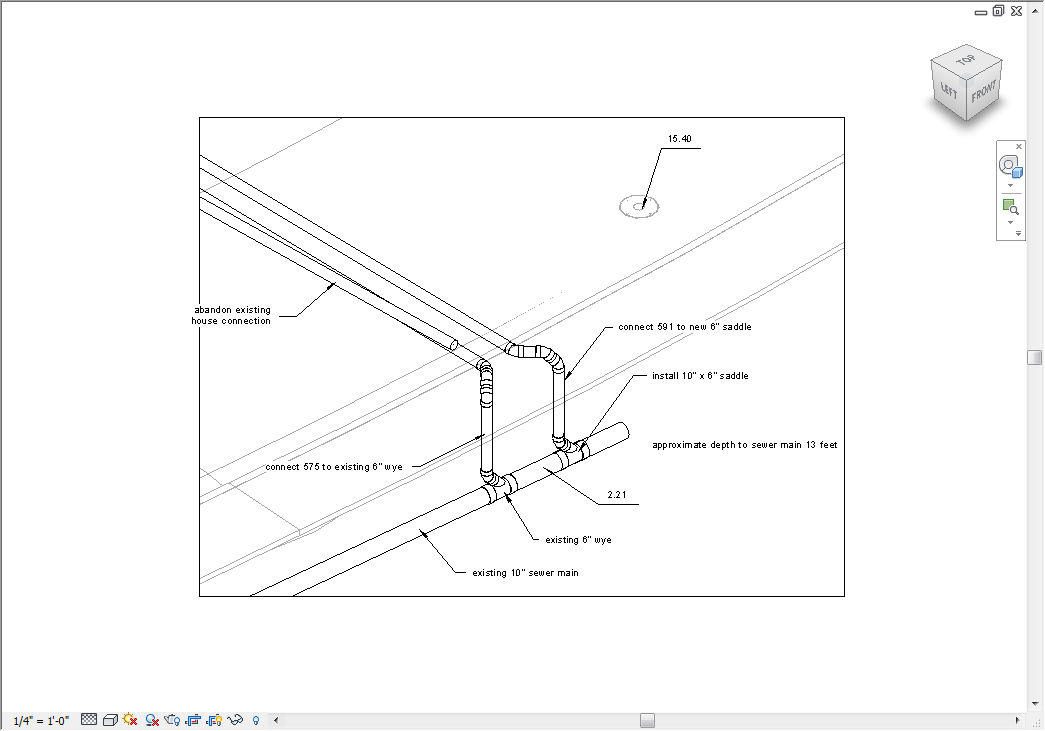

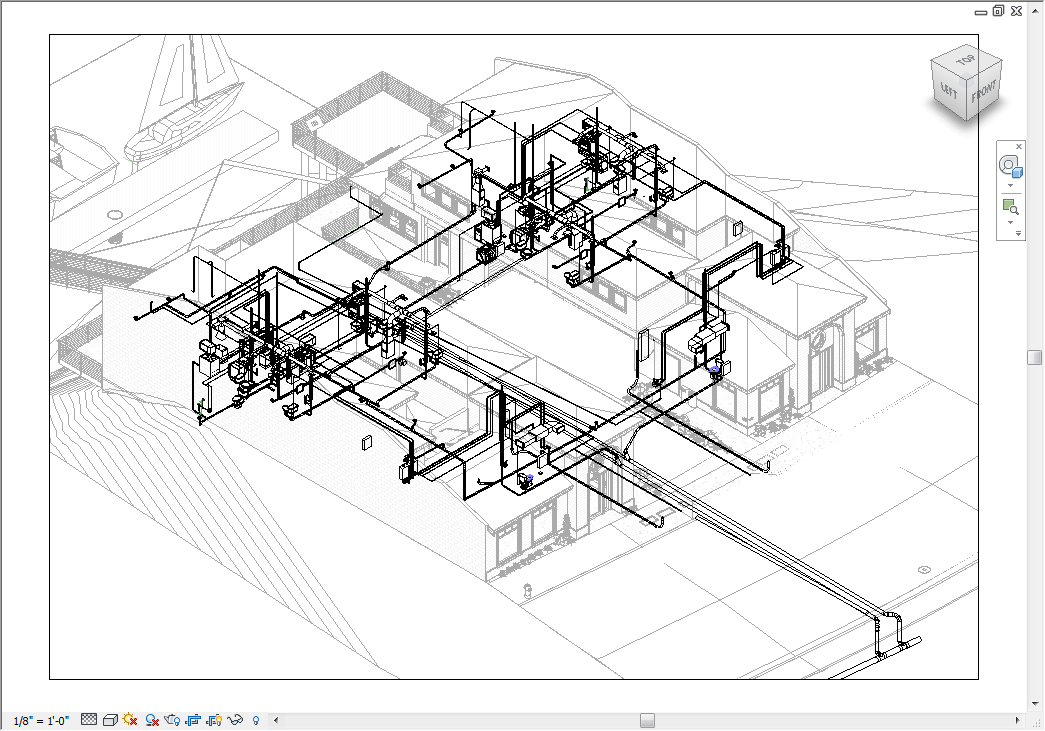

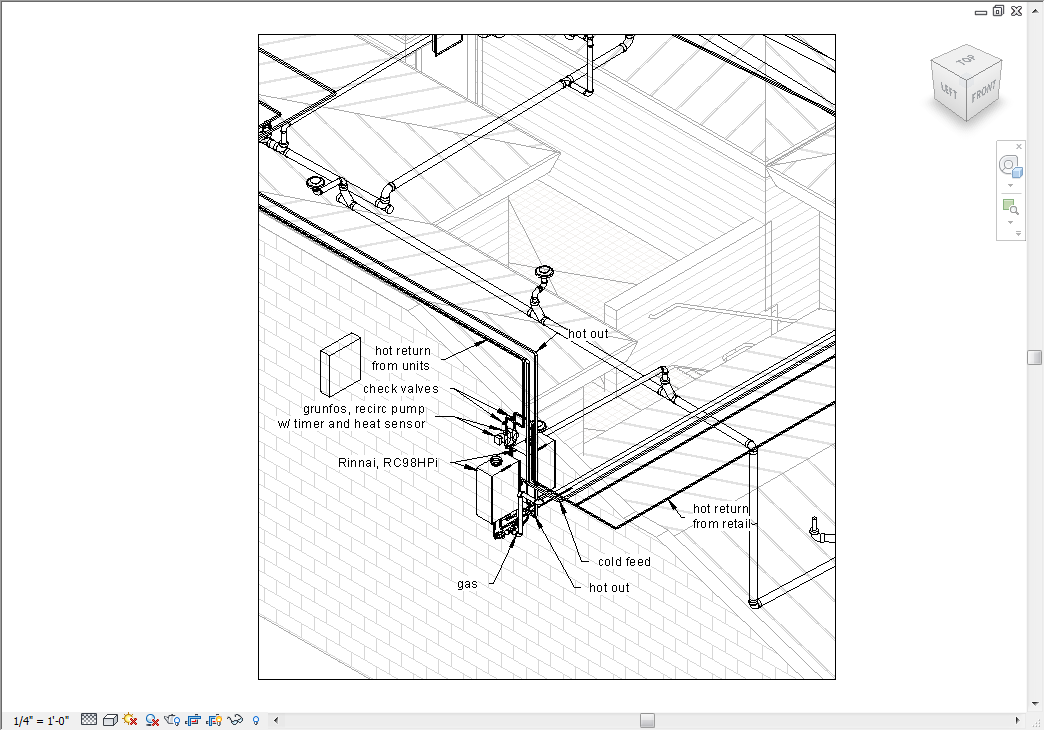

These were made in MEP, on the original Architectural Model.



Attached Images


This user is offline



Thu, Mar 31, 2011 at 2:17:08 AM | Modeling Site Utilities (i.e., SS, SD, Waterline....)

#4

mcantwell


active
mcantwell Avatar

Joined: Thu, Aug 24, 2006
86 Posts
5 Stars: 1 Votes


Parametric line based pipe with fall for sewer, stormwater and field drain attached (I hope)



This user is offline

View Website
