Forums >> Revit Building >> Technical Support >> wood braced walls

Search this ThreadSearch this Thread | Page 1 of 1 |

Fri, Nov 11, 2005 at 6:37:20 PM | wood braced walls

#1

McGraw


active

Joined: Sat, Jul 16, 2005
44 Posts
No Rating

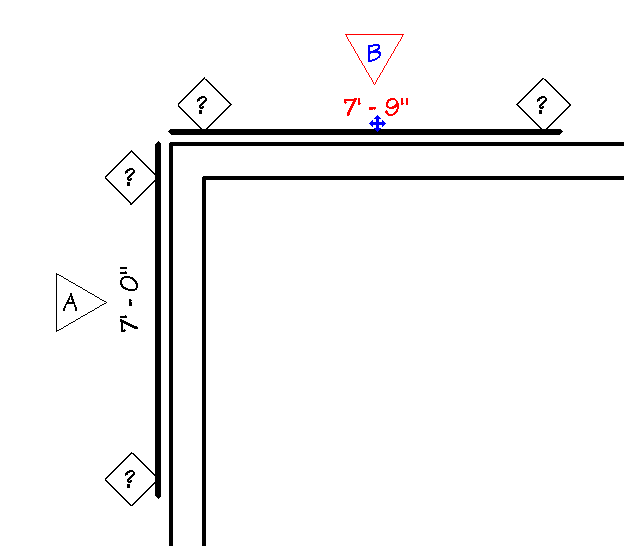

Does anyone have a slick way to show wood shearwalls/braced wall panels in plan view? I think the best thing I’ve come up with so far is a framing family that I can draw like a beam and tag. I had to make a separate family for holdowns and tag separately. I also tried annotation symbol and detail component, which seems like it would be quicker, but each had issues. I can’t believe I am having to try and re-invent the wheel on this one. Would really appreciate your thoughts. Sam Post edited on 2005-11-11 18:37:37 Post edited on 2005-11-11 18:40:05 Post edited on 2005-11-11 18:40:24

This user is offline



Sun, Nov 13, 2005 at 6:01:52 PM | RE: wood braced walls

#2

eldados


site moderator|||
eldados Avatar

Joined: Mon, Mar 14, 2005
777 Posts
4.5 Stars: 8 Votes


do you need to show it in plan only? if so, I would use a detail componenet and put the annotation in it, though if you need to tag, creating a family is not a bad idea...

-----------------------------------

Integrator

Architectural Engineering Construction

KarelCAD

This user is offline

View Website

Tue, Nov 15, 2005 at 6:00:54 PM | RE: wood braced walls

#3

McGraw


active

Joined: Sat, Jul 16, 2005
44 Posts
No Rating


Yes, just plan view. I think my Braced Wall and Holdown families and corresponding Tag families are going to work well. Seems to be the most efficient. Thanks for the reply. Sam Post edited on 2005-11-15 19:15:56

Attached Files

This user is offline



Fri, Jun 16, 2006 at 11:18:09 AM | RE: wood braced walls

#4

McGraw


active

Joined: Sat, Jul 16, 2005
44 Posts
No Rating


Thank you AutoDesk for adding the line based detail component in v.9. Sam
