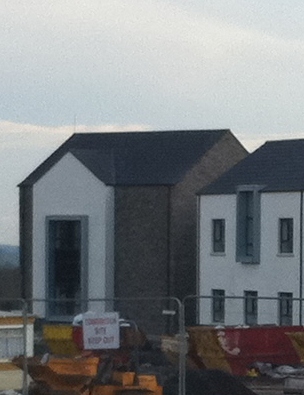

HEY I AM TRYING TO MAKE WINDOW SURROUNDS LIKE THE SILVER ONES IN THE PICTURE ATTACHED, I HAVE TRIED CREATING THEM WITH IN PLACE MASS STARTING WITH THE BOX TEMPLATE AND ALTERING IT, HOWEVER I DONT THINK THIS IS VERY ACCURATE....IS THERE ANY SPECIFIC WAY IN WHICH TO CREATE THEM? I AM USING REVIT ARCHITECTURE 2011... THANKS
|
This user is offline |
|
 |
|
|
|
active
Joined: Wed, Mar 5, 2008
208 Posts
 |
Did you mean the surround on the left of the image? Try to create a face based/ wall based family (generic catagory) and use it. You can use simple extrusion to do it.
|
This user is offline |
|
|
|
active
Joined: Fri, May 29, 2009
8 Posts
 |
Try creating a sweep hosted on the windows opening. Use this profile http://revit.autodesk.com/library/archive2009/Library/Revit%20Architecture%202009%20Library/US%20Library/Families/Profiles/Trim-Exterior-Flat.rfa
-----------------------------------
@berriosdesigns |
This user is offline |
View Website
|
|
|
active
Joined: Wed, Mar 5, 2008
208 Posts
|
Christofur84, Did you mean to use this profile to create a in-place family? I would think using a loaded family is a better way in this case sinceyou can make it as a parametric family and be able to use it for other projects. and creating a loaded generic family is quite easy in this case.
|
This user is offline |
|
|
|
active
Joined: Fri, May 29, 2009
8 Posts
|
Problably would be better for future use....i was just going for the quick fix...model in place...generic model...the sweep becomes somewhat parametric if you change windows sizes
-----------------------------------
@berriosdesigns |
This user is offline |
View Website
|
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
 |
I would suggest that you don't use a mass for elements like this. For both in-place families and loaded families, you should model the item in the correct category. If this is a wall element, then you would want to place it in the wall category so that it can be controlled in VG.
|
This user is offline |
|
|
|
active
Joined: Thu, May 28, 2009
829 Posts
 |
I would also model in place. A sweep in the wall category with "pick 3D edge" to define its path, the path being the wall edge where it's cut by the window.
|
This user is offline |
|
|
|
active
Joined: Mon, Mar 14, 2011
2 Posts
No Rating |
THANKS GUYS
I ENDED UP DOING IT WITH A REGTANGULAR MASS AROUND THE WINDOW FRAME EXTRUDE IT, THEN OFFSET THE MASS AND EXTRUDED IT AGAIN...WORKED BRILLIANTLY
THANKS FOR ALL YOUR HELP
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
|
My only comment is why a mass? I can never understand why someone would use a mass rather than a true component element assigned by category. If this should be part of the wall then make it be in the wall category - not mass.
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
|
"
My only comment is why a mass? I can never understand why someone would use a mass rather than a true component element assigned by category. If this should be part of the wall then make it be in the wall category - not mass.
"
Ditto
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
