Forums >> Revit Systems >> Technical Support >> Controlling A Circular Sweep

Search this ThreadSearch this Thread | Page 1 of 1 |

Mon, Mar 7, 2011 at 5:55:21 PM | Controlling A Circular Sweep

#1

koolair


active

Joined: Thu, Jan 8, 2009
137 Posts
4.5 Stars: 2 Votes


Hi everyone,



I am having a problem with a round air diffuser.  I'd like to make different types defined by duct radius, or even just one type with infinitely varying duct radius, but the first option is better.



I have drawn a profile which I sweep around a circle.  I'd like to make the sweep radius a parameter.  Any ideas?



Hope to hear, and thanks in advance!



Joe


This user is offline



Tue, Mar 8, 2011 at 12:41:39 PM | Controlling A Circular Sweep

#2

koolair


active

Joined: Thu, Jan 8, 2009
137 Posts
4.5 Stars: 2 Votes


I may have mis-stated my question.  Here is a picture to describe the problem (attached MS Word file).



I probably need to do this via revolve.  But the question will remain the same (I believe).  How do I control the size of certain geometries by parameters?



The dimension I want to parameterize is indicated on the attached.  Please if anyone can help, that'd be great news!



This user is offline



Tue, Mar 8, 2011 at 1:40:53 PM | Controlling A Circular Sweep

#3

pchan


active
pchan Avatar

Joined: Wed, Mar 5, 2008
208 Posts
5 Stars: 5 Votes

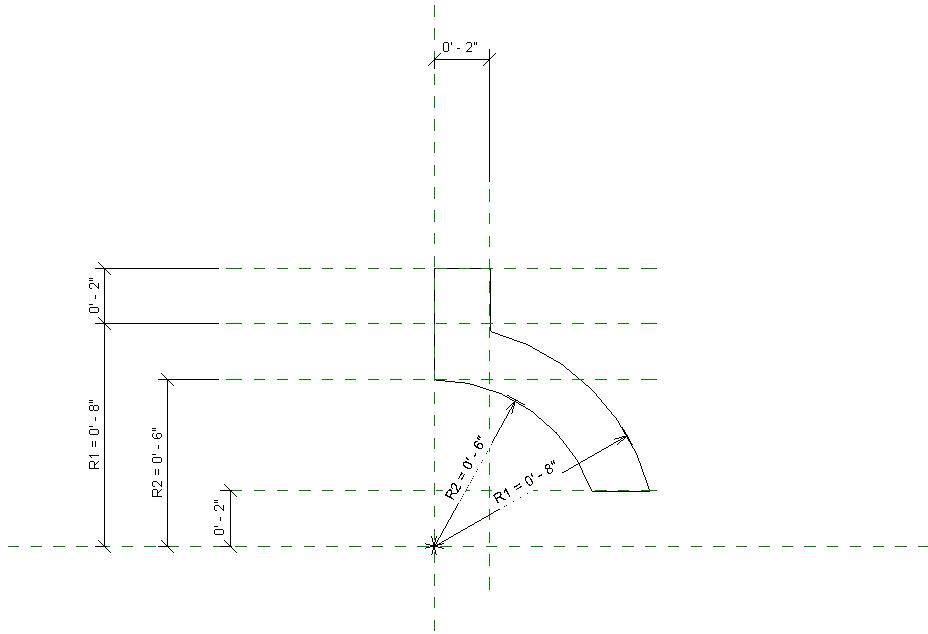

Maybe something like this?

you can set parameter to the arc and control it by simple formula (i.e. R1 - 2" = R2)

and lock other lines to the reference plane. and you should be able to control the profile family



Philip



Attached Images


This user is offline



Tue, Mar 8, 2011 at 4:47:59 PM | Controlling A Circular Sweep

#4

koolair


active

Joined: Thu, Jan 8, 2009
137 Posts
4.5 Stars: 2 Votes


I may have mis-stated my question.  Here is a picture to describe the problem (attached MS Word file).



I probably need to do this via revolve.  But the question will remain the same (I believe).  How do I control the size of certain geometries by parameters?



The dimension I want to parameterize is indicated on the attached.  Please if anyone can help, that'd be great news!



This user is offline



Tue, Mar 8, 2011 at 4:50:49 PM | Controlling A Circular Sweep

#5

koolair


active

Joined: Thu, Jan 8, 2009
137 Posts
4.5 Stars: 2 Votes


Thanks...I'll look at that again.  I tried this but I can't get the reference lines working while in sketch mode.



Sorry for all the repeat posts....I think it has to do with my refresh button.



Joe


This user is offline
