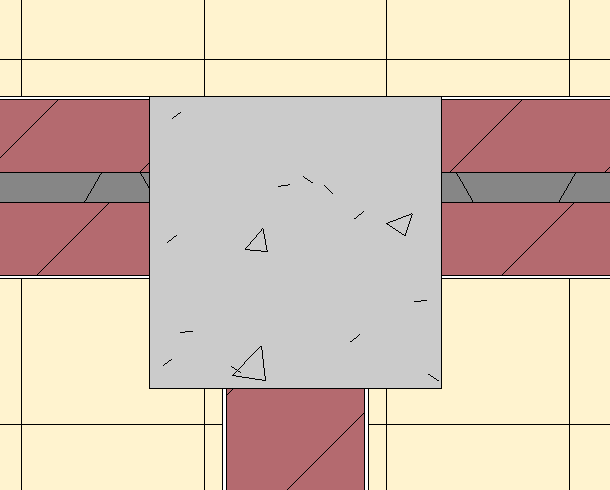

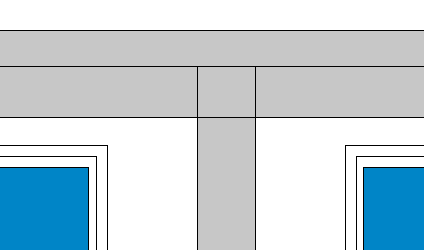

Hi to all. I have a question regarding the correct way to model a building with concrete frame and walls. When I put the column aligned with the outer finished face of the wall I get the result that I want in the plan and section view, but not in the elevation view. There as you can see in the attached pic I don't want the column and the beam to be visible. Is there a way to create a layer of plaster in the face of the concrete column, or am I doing it completely wrong?
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
|
You are using "Structural Columns" and not "Architectural columns", right? Just use the "Paint" tool with the material you want in that elevation view
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
|
active
Joined: Fri, Jun 5, 2009
4 Posts No Rating |
Ok. Yes I am using structural columns and not architectural. That seems to work for the color of the column or beam but I can not get rid of the edges of those elements. Is this possible to do it in some way or not?
|
This user is offline |
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
|
Yeah, just use the "Linework" tool with "Invisible Lines", search in your HELP how to use it.
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
|
active
Joined: Fri, Jun 5, 2009
4 Posts No Rating |
This works great. Thank you very much for the help.
|
