Forums >> Revit Building >> Technical Support >> Can't get windows to cut through a mass created by dividing surfaces.

Search this ThreadSearch this Thread | Page 1 of 1 |

Sat, Feb 12, 2011 at 3:50:29 AM | Can't get windows to cut through a mass created by dividing surfaces.

#1

archyslave


active

Joined: Wed, Nov 12, 2008
1 Posts
No Rating


I used a "Curtain Panel - Pattern Based" family to create the look of metal cladding.  After applying it to a conceptual model with the divide surface command, I found that I couldn't simply drop in parametric windows on the conceptual mass as I would on a normal wall.  What should I do?

This user is offline



Sat, Feb 12, 2011 at 12:52:29 PM | Can't get windows to cut through a mass created by dividing surfaces.

#2

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes

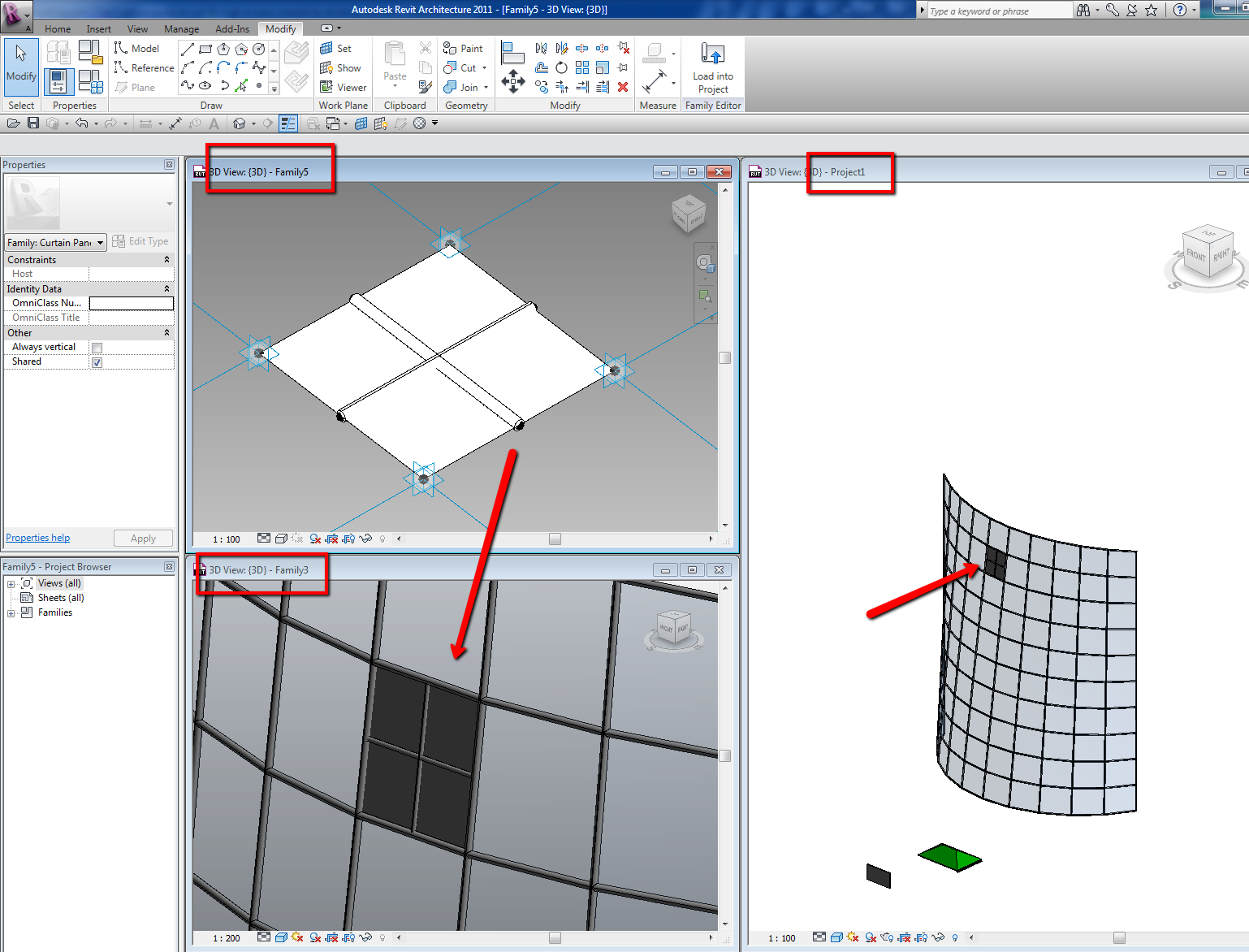

" I found that I couldn't simply drop in parametric windows on the conceptual mass as I would on a normal wall." - Of course not, a Mass is a mass and a Wall is a Wall, what you can do is create another  "Curtain Panel - Pattern Based" family like you need then load into your conceptual  model and replace the panels you need.





Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT
