Forums >> Revit Building >> Technical Support >> why my massing can't not be a solid?

Search this ThreadSearch this Thread | Page 1 of 1 |

Wed, Feb 9, 2011 at 11:09:46 AM | why my massing can't not be a solid?

#1

fairywiner


active

Joined: Thu, Oct 21, 2010
85 Posts
No Rating

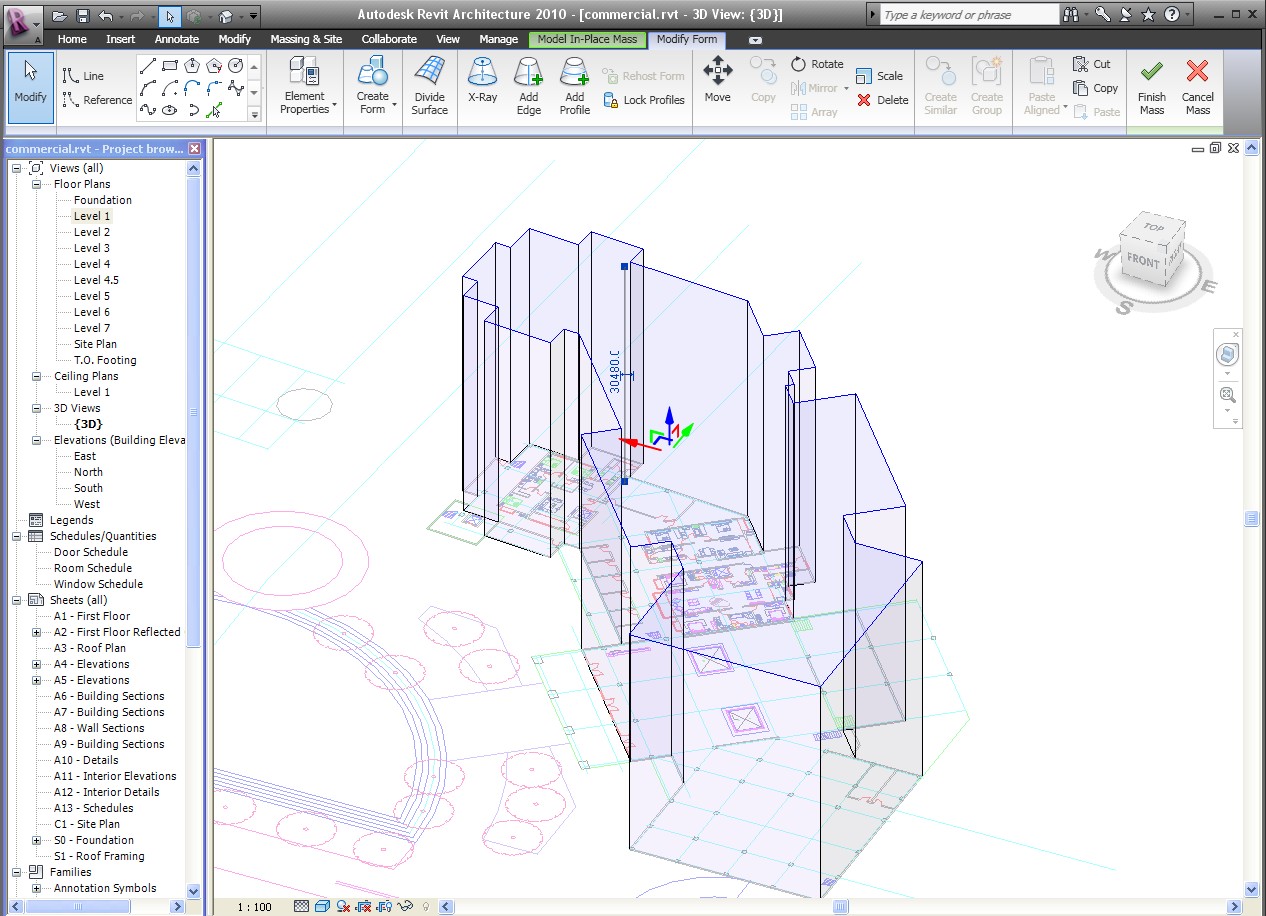

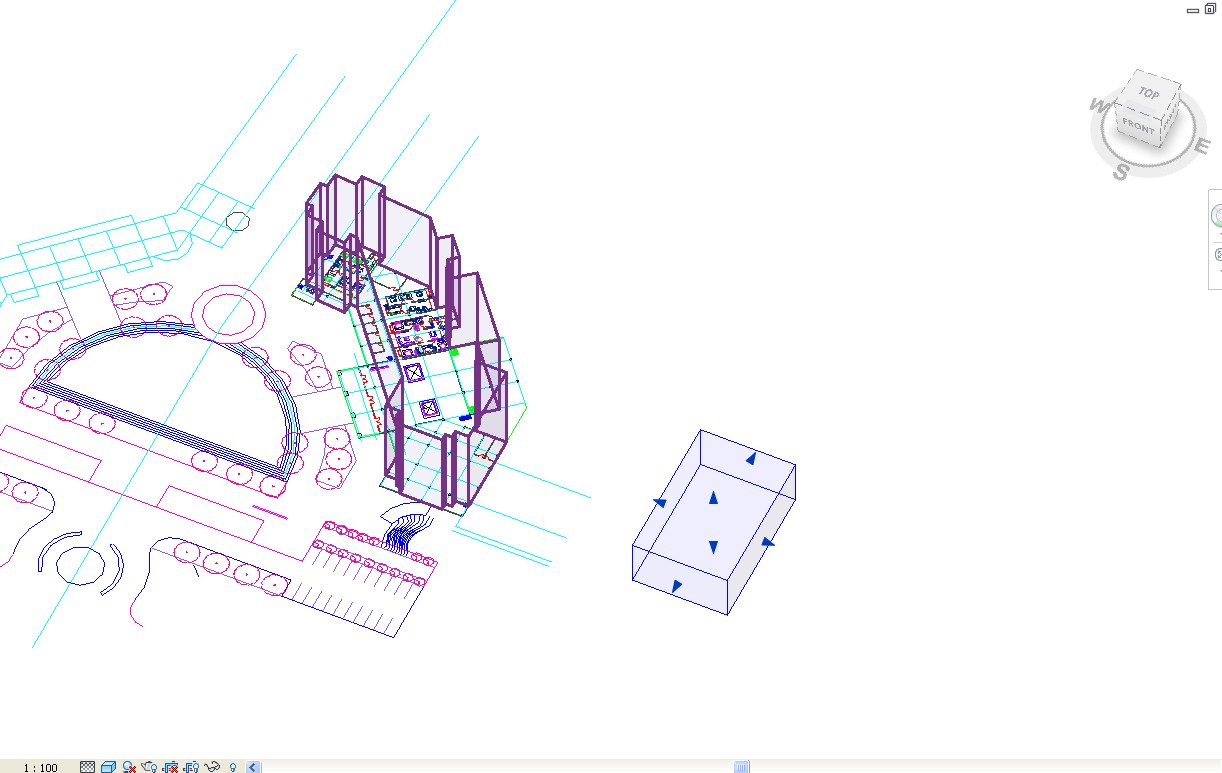

look, I want to make a massing according to my cad footprint, but when I finished the mass, it can not be a solid body, just mesh, the cubic which I draw on the right side of my massing is ok, it is a solid. Did I do somthing wrong when I make the massing or the frofile of my massing is to comlicated so as to it can not become a solid body?

picture2 is my sketchup model about the building.



Attached Images


Attached Files

-----------------------------------

沧海月明珠有泪

This user is offline



Wed, Feb 9, 2011 at 12:18:24 PM | why my massing can't not be a solid?

#2

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes


How do you create that "Mass"? with "Massing and Site" or with a "Create In-Place" in the category Mass?

Is that a "Closed Loop" like a "polyline" in CAD?

May I ask you why are you creating that with mass when you can draw Walls directly on your project?






-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Thu, Feb 10, 2011 at 3:34:59 AM | why my massing can't not be a solid?

#3

fairywiner


active

Joined: Thu, Oct 21, 2010
85 Posts
No Rating


How do you create that "Mass"? with "Massing and Site" or with a "Create In-Place" in the category Mass?

Is that a "Closed Loop" like a "polyline" in CAD?

May I ask you why are you creating that with mass when you can draw Walls directly on your project?

I create the mass first I click  Massing and Site and then I click In-place mass then there jump out an dialog,  I give the give name mass1,  then I use pick lines, after I picked all the profile line, I use trim tool to make sure they can be a closed line. Then I selected the colosed poly line, click creat form tab, pick the form tab ,then it become the massing. but the massing is not a solid body , only a mesh body. And I make an other try with the same method, but just to draw a rectangle and then click creat form tab, pick the form tab, it became an solid cubic. So I don't the what's the difference bettween the two massing. Only one difference I found is that one is simple rectangle and the other is complex polyline in their footprint.

The reason why I made massing istead of drawing walls directly is that I want to fist make a massing of the building, because the elevation of my building is little complicated, so I think it's better to make a massing frame, then I can use the command model by faces to generate the walls. I use this mothed is also because the tutorial files I leart tells me to generate a building's wall from pick the faces of a already made massing. The turtorial fiel I have aslo attached to my thread. The method is taught on page 107 of the pdf. I don't know if it is a good method to make a building.

This is my first revit products, and I want to finish my design with revit.




-----------------------------------

沧海月明珠有泪

This user is offline



Thu, Feb 10, 2011 at 11:13:08 AM | why my massing can't not be a solid?

#4

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes


Your process is correct and if you need first to create a "Mass Studie" you are right to do that, you said: "...then I use pick lines, after I picked all the profile line, I use trim tool to make sure they can be a closed line." - If you used the "Trim" tool on all lines should work.... Wierd...

Can you please upload here that "Mass/Mesh" so we can take a look?




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Fri, Feb 11, 2011 at 2:58:17 AM | Typhoon

#5

fairywiner


active

Joined: Thu, Oct 21, 2010
85 Posts
No Rating


I just tried more times and evreything is done. Thank you.

Attached Images


-----------------------------------

沧海月明珠有泪

This user is offline



Fri, Feb 11, 2011 at 9:41:55 AM | why my massing can't not be a solid?

#6

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes


And how you solved the problem? It wasn't a "Closed Polyline" right?






-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Sat, Feb 12, 2011 at 2:26:42 AM | why my massing can't not be a solid?

#7

fairywiner


active

Joined: Thu, Oct 21, 2010
85 Posts
No Rating


I don't know how I solved the problem, because I use the same method to draw a massing, But I think the only one difference is that previous footprint line is not closed well, I can't pick all the segment of the line by one click, the latter footprint line can be picked all the segement by one click. I think may be that's the problem.

-----------------------------------

沧海月明珠有泪

This user is offline
