Forums >> Revit Building >> Technical Support >> Curtain wall vertical mullions won't go vertical

Search this ThreadSearch this Thread | Page 1 of 1 |

Tue, Feb 1, 2011 at 9:41:42 PM | Curtain wall vertical mullions won't go vertical

#1

Maring


active

Joined: Wed, Apr 1, 2009
9 Posts
No Rating

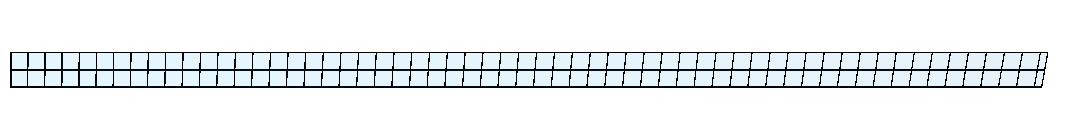

The walls of our curtain wall system are not perpendicular to the ground plane.  So when we add the curtain wall grid/mullions, they are not orthagonal.  How do you make them orthagonal?  See attached pdf of elevation of our problem.



This user is offline



Wed, Feb 2, 2011 at 10:37:07 AM | Curtain wall vertical mullions won't go vertical

#2

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 198 Votes


I answer this same question in Jun 2010: http://www.revitcity.com/forums.php?action=viewthread&thread_id=776&start=15

Tell me if this solve your problem.




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Wed, Feb 9, 2011 at 9:27:46 PM | Curtain wall vertical mullions won't go vertical

#3

Maring


active

Joined: Wed, Apr 1, 2009
9 Posts
No Rating


Thank you soooo much!  This solved our problem!!!

This user is offline



Thu, Feb 10, 2011 at 10:22:44 AM | Curtain wall vertical mullions won't go vertical

#4

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 198 Votes


It was what I thought Winking

-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Fri, Jun 15, 2012 at 4:34:24 PM | Curtain wall vertical mullions won't go vertical

#5

adoringfungus


active

Joined: Fri, Jun 15, 2012
5 Posts
No Rating


I cannot get this video link to work and i am having the same problem.


This user is offline



Fri, Jun 15, 2012 at 6:10:08 PM | Curtain wall vertical mullions won't go vertical

#6

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 198 Votes


The video is gone, sometimes I need to delete them because the free space i have at JING, sorry about that...

The problem is in the MASS and not in the Curtain System, how is the shape of your mass? can you post some images about that so we can see and try to help you?




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Fri, Nov 9, 2012 at 5:42:21 AM | Curtain wall vertical mullions won't go vertical

#7

AJeeper


active
AJeeper Avatar

Joined: Fri, Nov 9, 2012
7 Posts
No Rating

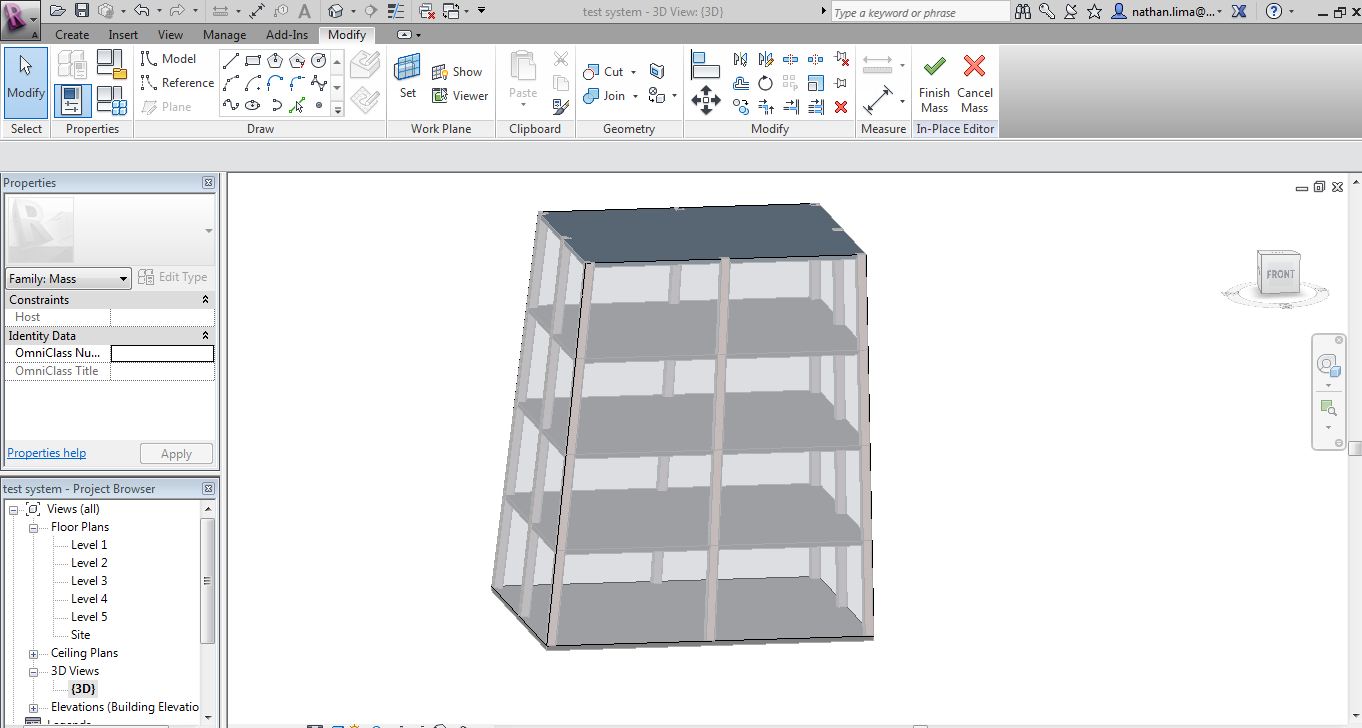

I am having the same problem and this is the only post i can find that looks right. is there any one that can help since the video doesnt work? This is a samply mass i am working on. my building is much higher and has four of these types of masses.



Attached Images


This user is offline



Fri, Nov 9, 2012 at 9:42:41 AM | Curtain wall vertical mullions won't go vertical

#8

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 198 Votes


The issue is the same, like I said: "The problem is in the MASS and not in the Curtain System", do this simple test: create a MASS rectangle (bottom to top), now you have to go to elevation views and create VOIDS and cut your geometry to have the same shape you posted, apply the curtain system, did this solve the problem?




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Fri, Nov 9, 2012 at 6:07:54 PM | Curtain wall vertical mullions won't go vertical

#9

AJeeper


active
AJeeper Avatar

Joined: Fri, Nov 9, 2012
7 Posts
No Rating

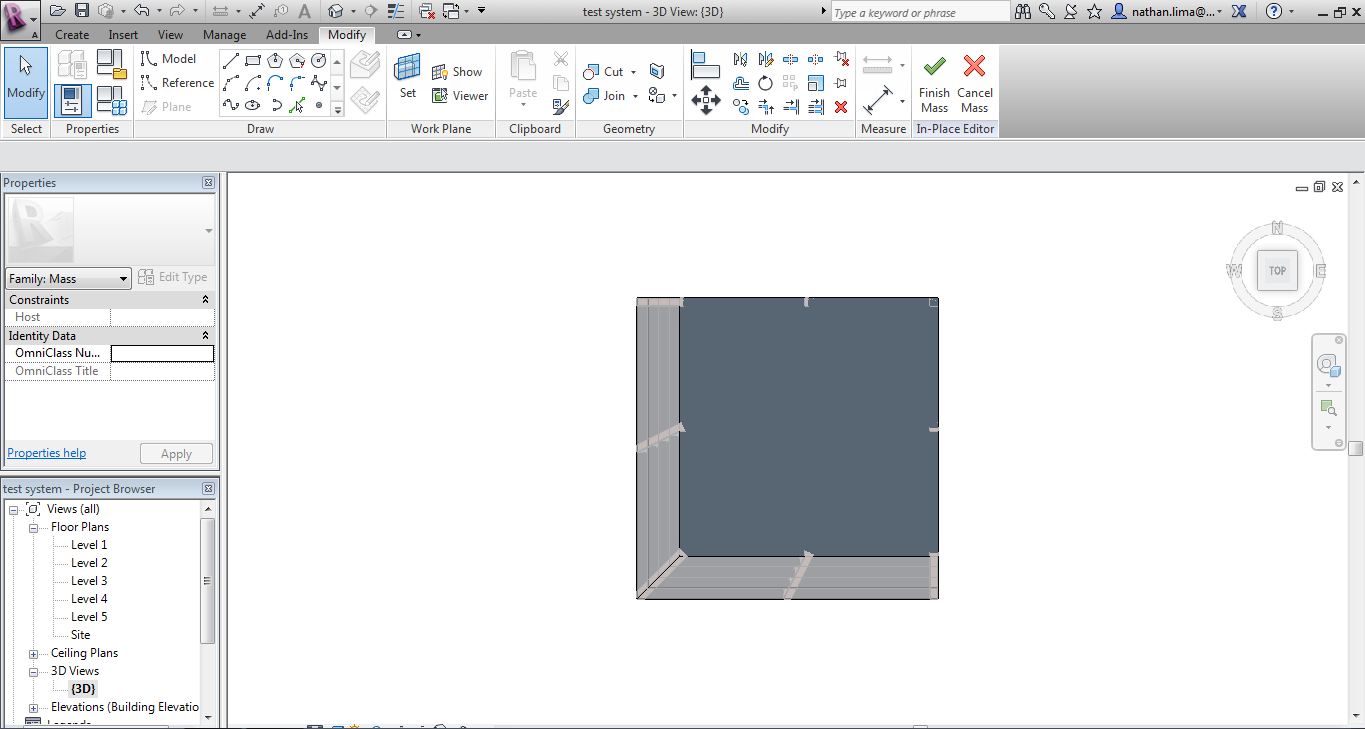

No that didn't do it. I still got the same thing. I masses a 70'-0" square, 80'-0" tall. Then massed two voids to give the two slopping side. Then finished the mass. applied the curtain system to the sloped side and still get a normal grid. I would like it if, like in your example, the vertical gird lines change angle fro the sloped wall to the vertical one. If I Massed it wrong, could you maybe explain what i did wrong.



Attached Images


This user is offline



Fri, Nov 9, 2012 at 6:20:19 PM | Curtain wall vertical mullions won't go vertical

#10

AJeeper


active
AJeeper Avatar

Joined: Fri, Nov 9, 2012
7 Posts
No Rating


I have made the mass three different ways.

1) draw top, bottom, and lofting between.

2) draw bottom, massed to height, then made voids to get shape.

3) draw bottom, masses to height, then pushed top lines in to get the shape.

all give me the same perfectly plumb and square curtain grid.



Edited on: Fri, Nov 9, 2012 at 12:23:34 PM

This user is offline



Sat, Nov 10, 2012 at 11:07:09 AM | Curtain wall vertical mullions won't go vertical

#11

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 198 Votes

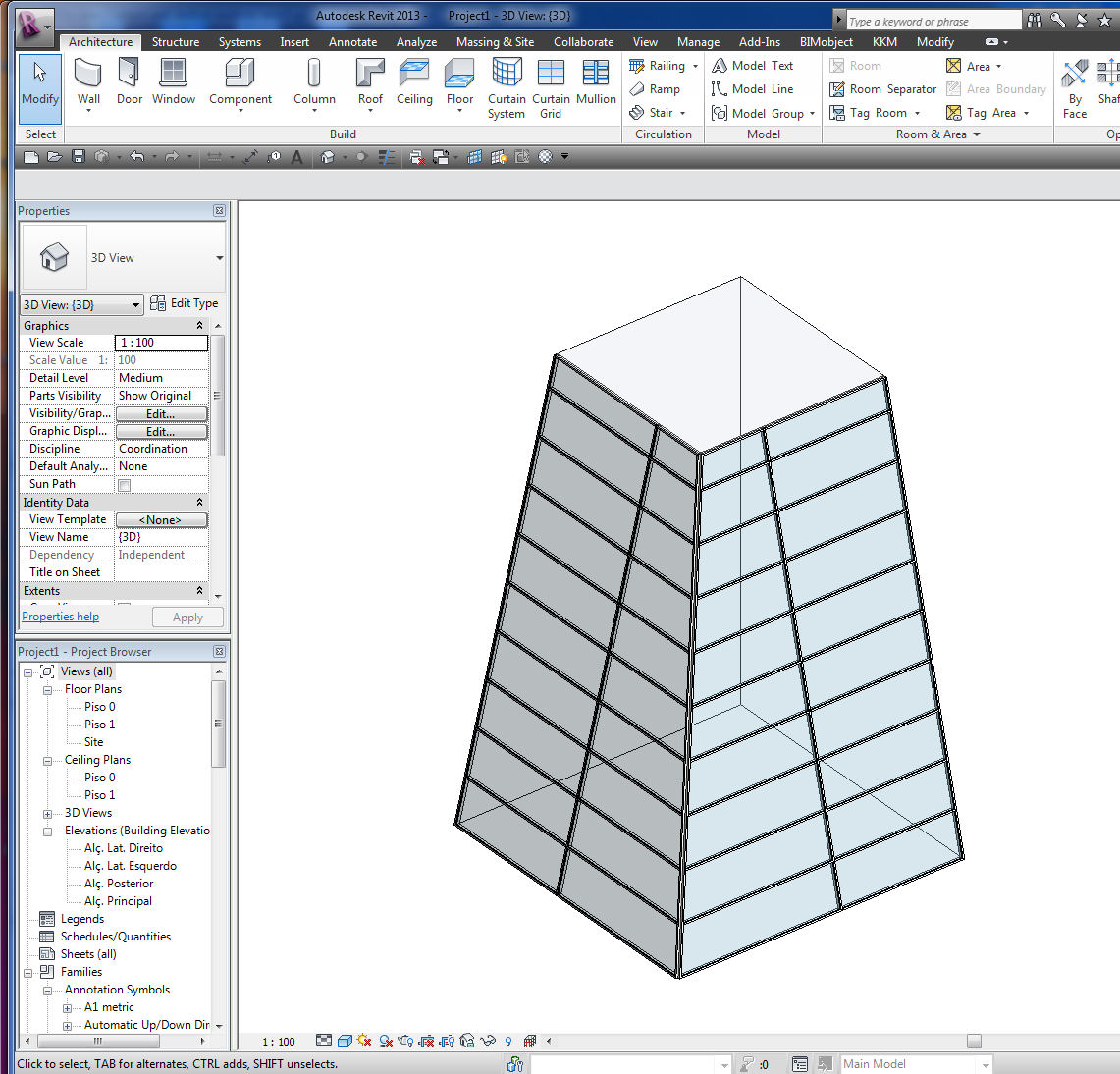

I'm confused... is this the effect you want or not?



Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Sat, Nov 10, 2012 at 10:14:54 PM | Curtain wall vertical mullions won't go vertical

#12

AJeeper


active
AJeeper Avatar

Joined: Fri, Nov 9, 2012
7 Posts
No Rating


No. I realized that I posted in the wrong page. I always get vertical mullions. i would like them to change with the shape.

i have tried changing it so there are 4 mullions by 6 mullions but they are still only vertical. sorry for the confusion.


This user is offline



Mon, Apr 15, 2013 at 11:19:36 AM | Curtain wall vertical mullions won't go vertical

#13

kubbah


active

Joined: Wed, Feb 11, 2009
31 Posts
No Rating


Hmm,

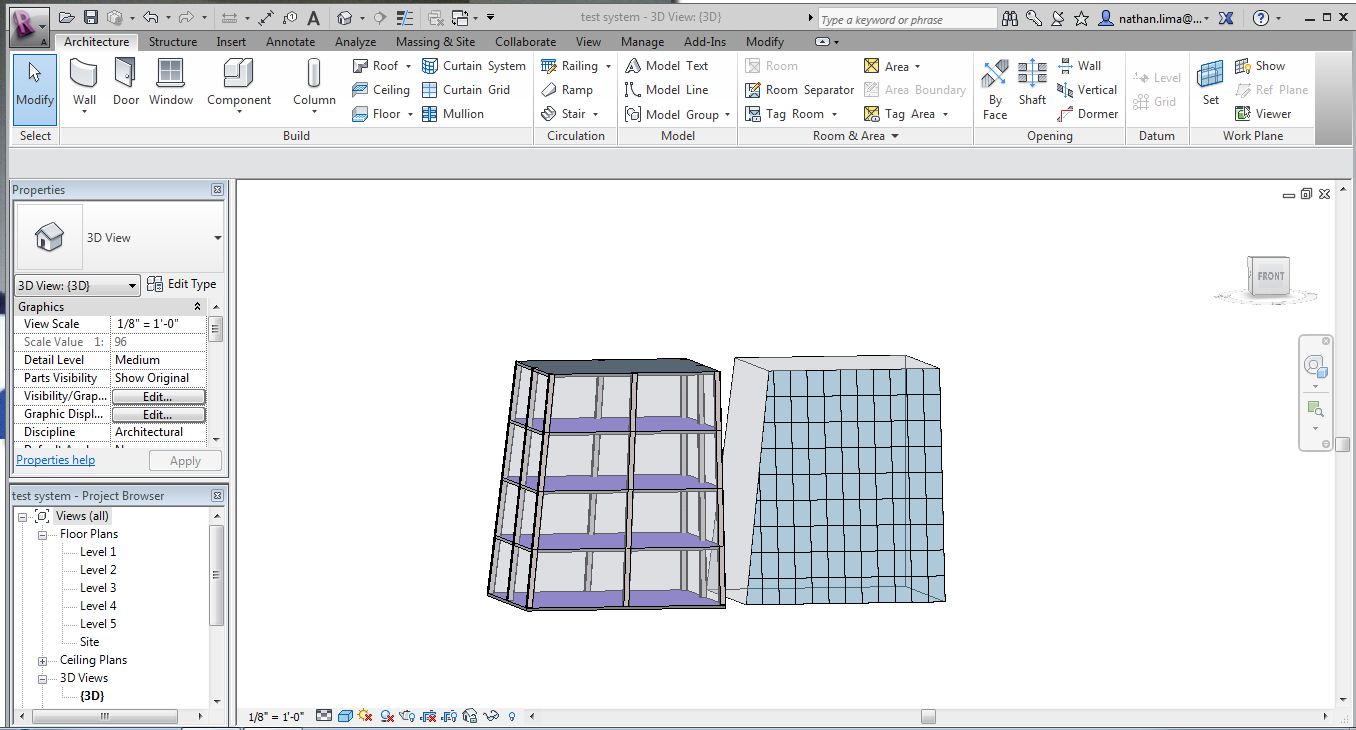

Is there a way to say to Revit " I WANT THE MULLIONS TO BE VERTICAL! " ?In my case, I applied the curtain wall to the mass,  the edges of the mass are on different angles, but I want the internal mullions to be ALWAYS VERTICAL...

how can I do it?Thanks



Attached Images


This user is offline
