Forums >> Revit Structure >> Technical Support >> Roof Covered Entry Problem

Search this ThreadSearch this Thread | Page 1 of 1 |

Mon, Jan 31, 2011 at 5:47:31 PM | Roof Covered Entry Problem

#1

quentin4d


active

Joined: Fri, Sep 24, 2010
35 Posts
5 Stars: 1 Votes

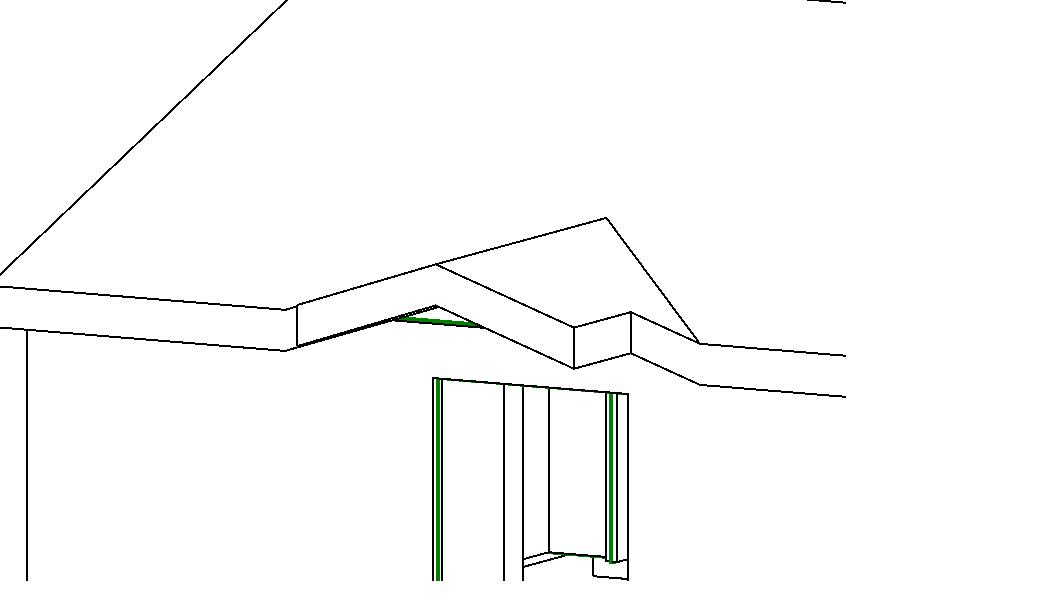

I created this covered entry with the same slope as the main roof, but the valley lines are in the wrong place. How did that happen?



Attached Images


This user is offline



Mon, Jan 31, 2011 at 5:51:01 PM | Roof Covered Entry Problem

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 371 Votes


You should just make this part of the main roof sketch.  Expeirment with splitting your roof edge line.  In this case, that edge should be split into 4 lines - the outer two have slope assigned.  The split points are at the gutter points and the peak.  Try it....




This user is offline



Mon, Jan 31, 2011 at 5:51:56 PM | Roof Covered Entry Problem

#3

quentin4d


active

Joined: Fri, Sep 24, 2010
35 Posts
5 Stars: 1 Votes


I had to change the Offset from Roof Base. But I had to go the elevation to measure how much to change it. That's annoying. Please tell me there's a better way.

This user is offline



Mon, Jan 31, 2011 at 7:27:34 PM | Roof Covered Entry Problem

#4

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes


Wierd, I don't have any problem and I didn't split the line..

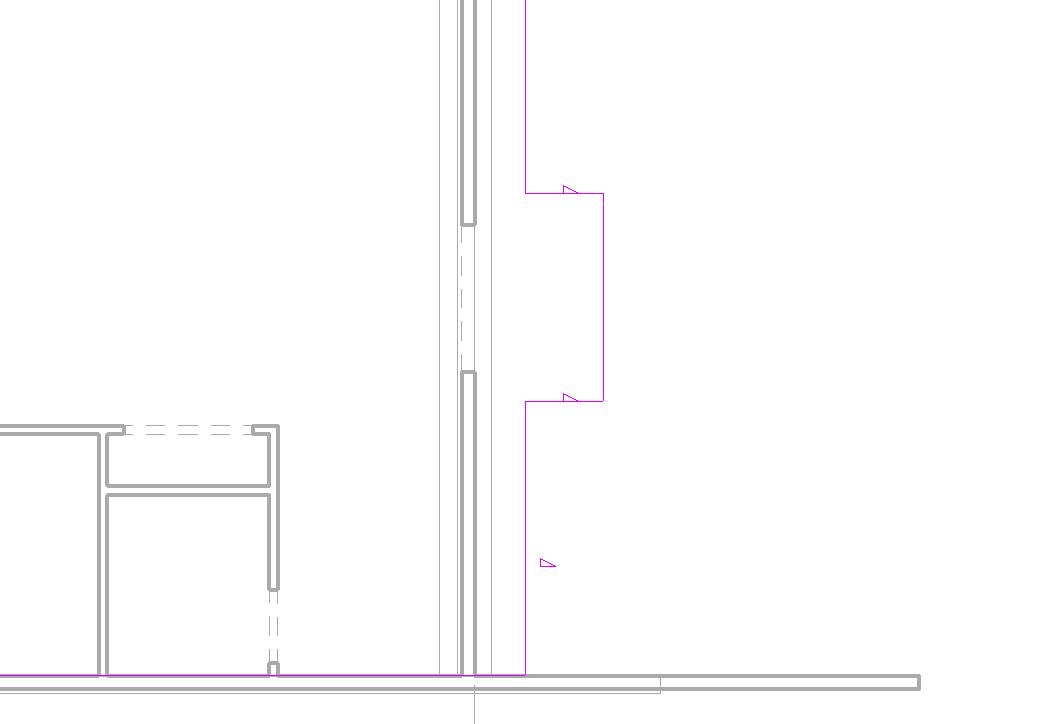

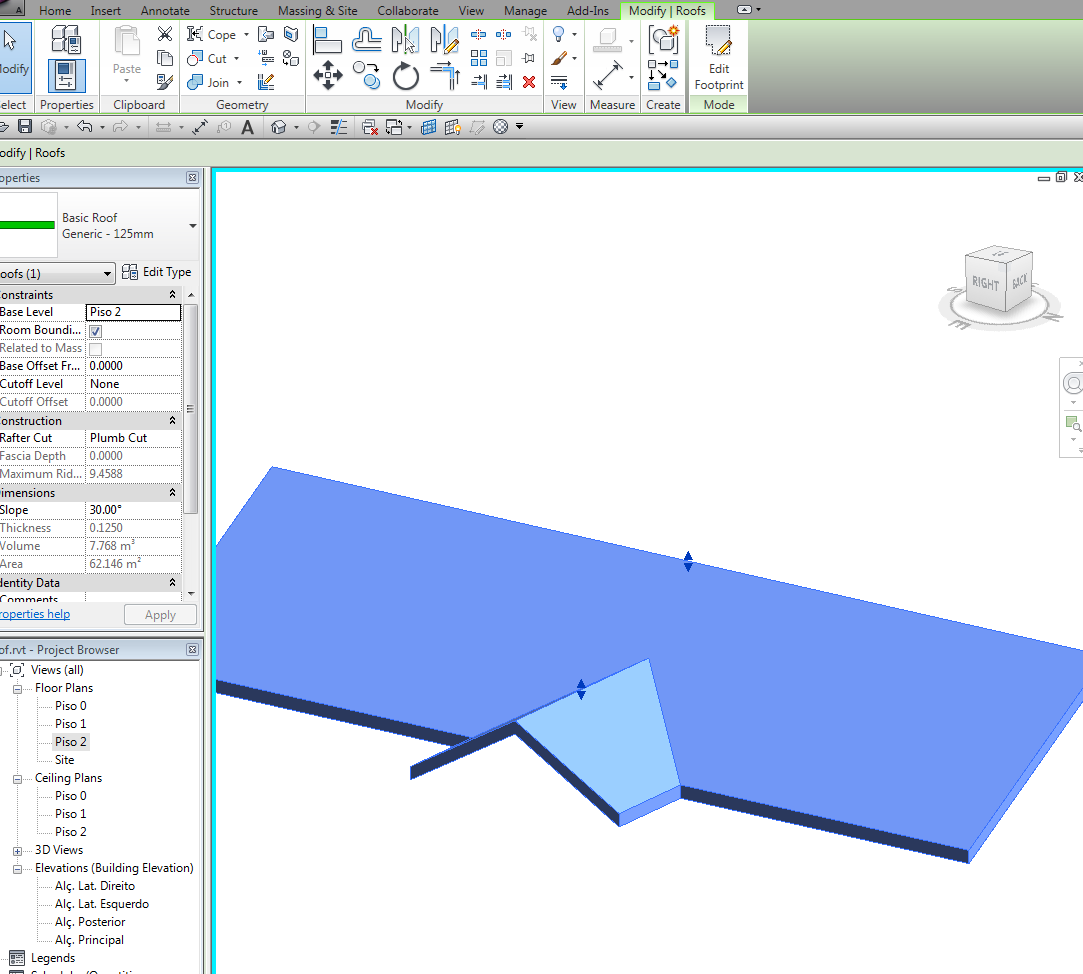

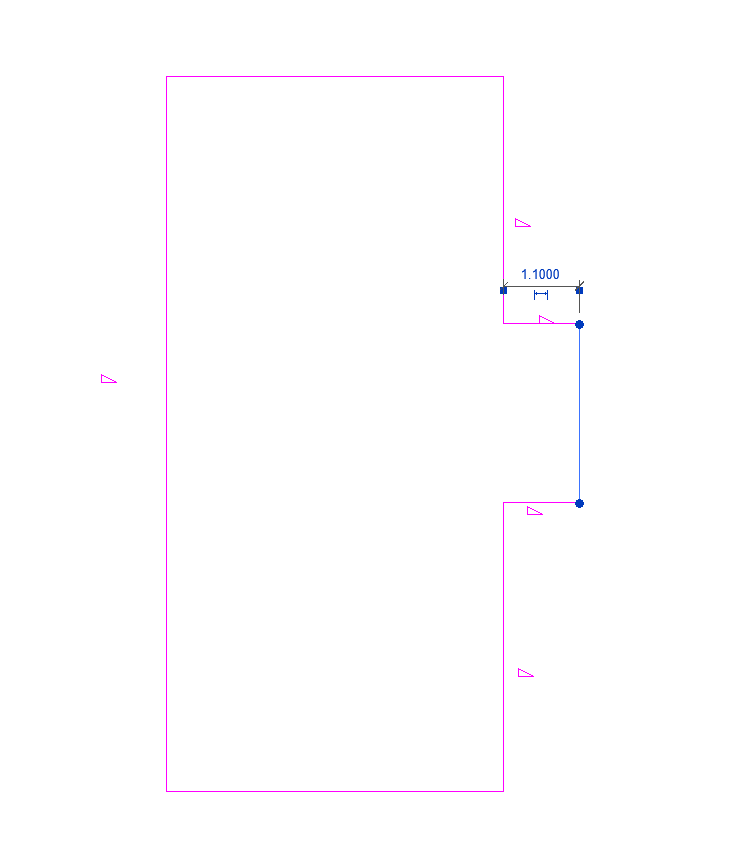

Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Mon, Jan 31, 2011 at 7:41:20 PM | Roof Covered Entry Problem

#5

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 371 Votes


I thought the facia of the entry was aligned with the main roof facia, that is why I suggest to split the line.  If it protrudes, typhoon has the answer.

This user is offline



Mon, Jan 31, 2011 at 7:51:48 PM | Roof Covered Entry Problem

#6

quentin4d


active

Joined: Fri, Sep 24, 2010
35 Posts
5 Stars: 1 Votes


I tried a few different things and it seems that by creating the Roof by Footprint with Pick Walls creates the error. If I use lines and / or offsets, it doesn't have the problem.

This user is offline



Mon, Jan 31, 2011 at 7:58:30 PM | Roof Covered Entry Problem

#7

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes


That's the problem indeed.




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline
